Freeze Dryer BK-FD10 Series

Name: Freeze Dryer BK-FD10 Series
Brand: BIOBASE
SKU: BK-FD10S

BK-FD10S / BK-FD10P / BK-FD10T / BK-FD10PT

Sample freeze drying from benchtop to pilot scale.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Low-temperature condenser
Vacuum control
Benchtop and pilot configurations

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-FD10S	BK-FD10P	BK-FD10T	BK-FD10PT

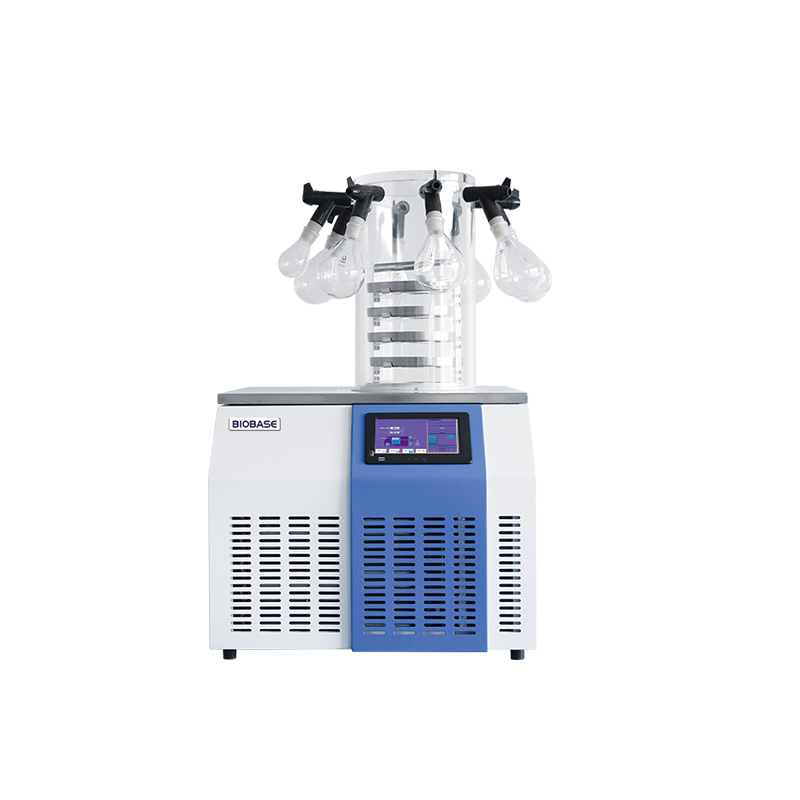

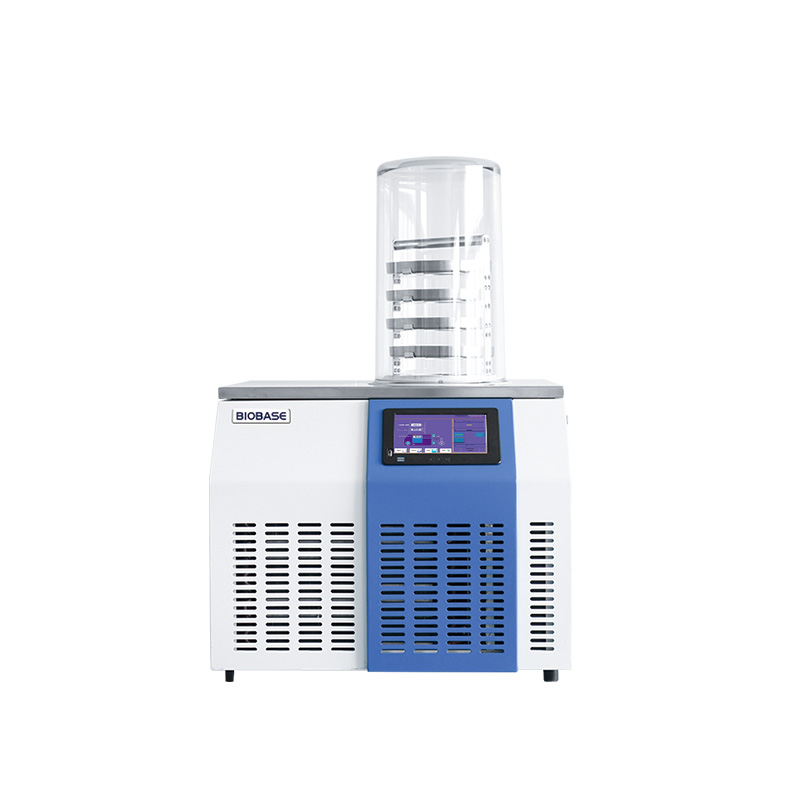

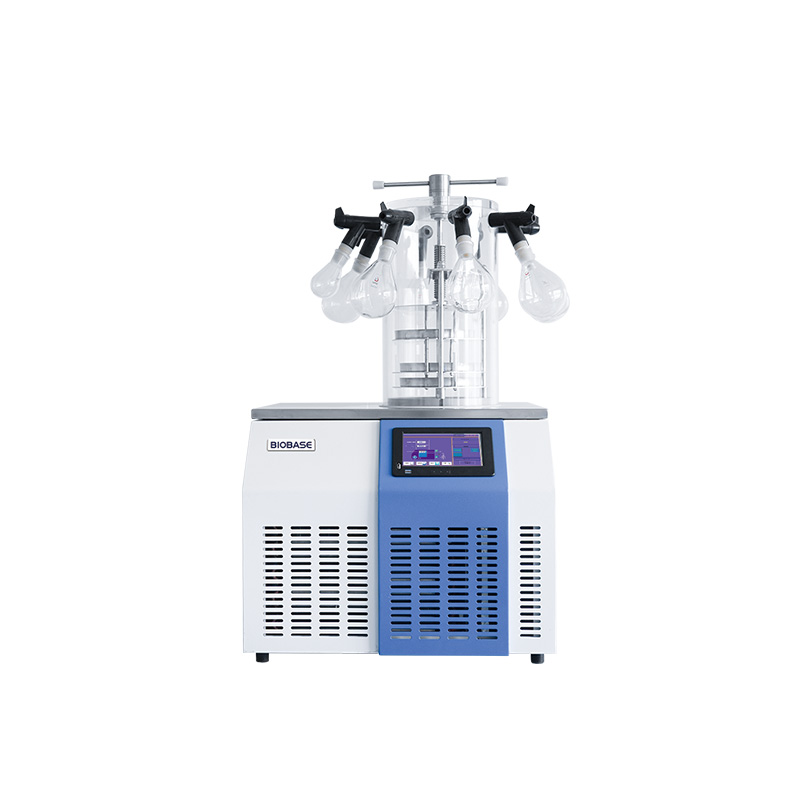

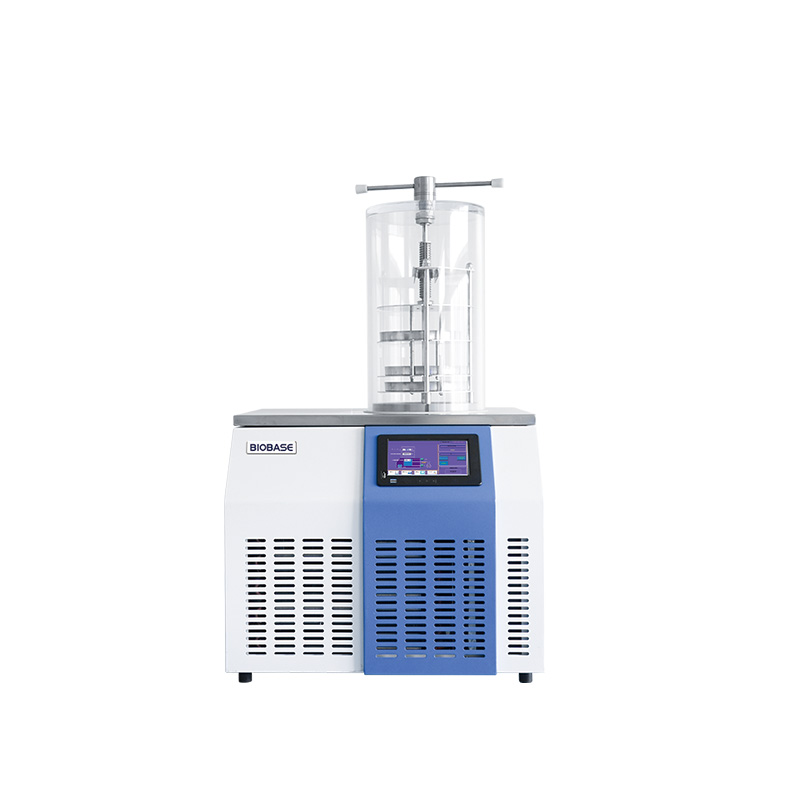

Type	Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area	0.12m²(Standard)	0.12m²(Standard)	0.08m²	0.08m²
Freeze Drying Area (2)	0.18m²(Optional)	0.18m²(Optional)	0.08m²	0.08m²
Tray	4pcs(Standard)	4pcs(Standard)	3pcs	3pcs
Tray (2)	6pcs(Optional)	6pcs(Optional)	3pcs	3pcs
Height Between Trays	50mm	50mm	/	/
Cold Trap Temperature	Common to all models≤-60℃(No load)(-80℃ optional)
Cold Trap Capacity	Common to all models6L
Cold Trap Size(Diameter*H)	Common to all modelsΦ219*140mm
Vacuum Degree	Common to all models≤5Pa
Water Capture Capacity	Common to all models3~4L/24h
Tray Size(D*H)	*φ20020mm**	*φ20020mm**	*φ18020mm**	*φ18020mm**
Freeze Drying Time	Common to all models24~36h
Suggested Loading	1.2L(Standard)	1.2L(Standard)	0.8L	0.8L
Capacity (Liquid)	1.8L(Optional)	1.8L(Optional)	0.8L	0.8L
Total Loading Capacity(Liquid)	2.4L(Standard)	2.4L(Standard)	1.6L	1.6L
Total Loading Capacity(Liquid) (2)	3.6L(Optional)	3.6L(Optional)	1.6L	1.6L
Drying Chamber Size(Diameter*H)	*Φ260420mm**	*φ260465mm**	*φ260465mm**	*φ260465mm**
Total Qty. of Vial φ22	196(Standard)	196(Standard)	147	147
Total Qty. of Vial φ22 (2)	294(Optional)	294(Optional)	147	147
Total Qty. of Vial φ16	396(Standard)	396(Standard)	297	297
Total Qty. of Vial φ16 (2)	594(Optional)	594(Optional)	297	297
Total Qty. of Vial φ12	656(Standard)	656(Standard)	492	492
Total Qty. of Vial φ12 (2)	984(Optional)	984(Optional)	492	492
Refrigerant	Common to all models-60℃: R600a, R23
Refrigerant (2)	Common to all models-80℃: R404a, R23
Cooling System	Common to all modelsStandard: Air cooling
Power Supply	Common to all modelsStandard: 220V, 50Hz
Power Supply (2)	Common to all modelsOptional: 220V, 60Hz, 110V, 60Hz
Power Consumption	Common to all models1300W
Standard Accessory	Common to all modelsVacuum pump 2L/S, Material tray4(Material tray3 for T/PT), Drying rack1, Cover1, Acrylic bucket*1(all models)
Standard Accessory (2)	Common to all modelsConical-mouth flask 100ml2pcs, 200ml2pcs, 250ml2pcs, 500ml2pcs, Switch valve*8pcs(only for Model BK-FD10P/PT), USB port
Optional Function&Accessory	Common to all modelsEquipment moving frame, vacuum pump of other specifications, oil mist filter, automatic air intake function, automatic water drainage function, and other customization(for all models)
Optional Function&Accessory (2)	Common to all models600ml/1200ml wide-mouth flask(for BK-FD10P/PT)
Optional Function&Accessory (3)	Common to all modelsTray*2(for BK-FD10S/P)
External Size(WDH)	Common to all models640610550mm
Package Size(WDH)	Main body	Main body	*735720760mm*	*735720760mm*
Package Size(WDH) (2)	Accessory	Accessory	*720605560mm*	*720605560mm*
Gross Weight	Common to all models-60℃: 80kg · -80℃: 98kg
Gross Weight (2)	45kg	49kg	54kg	56kg ·
