Freeze drying

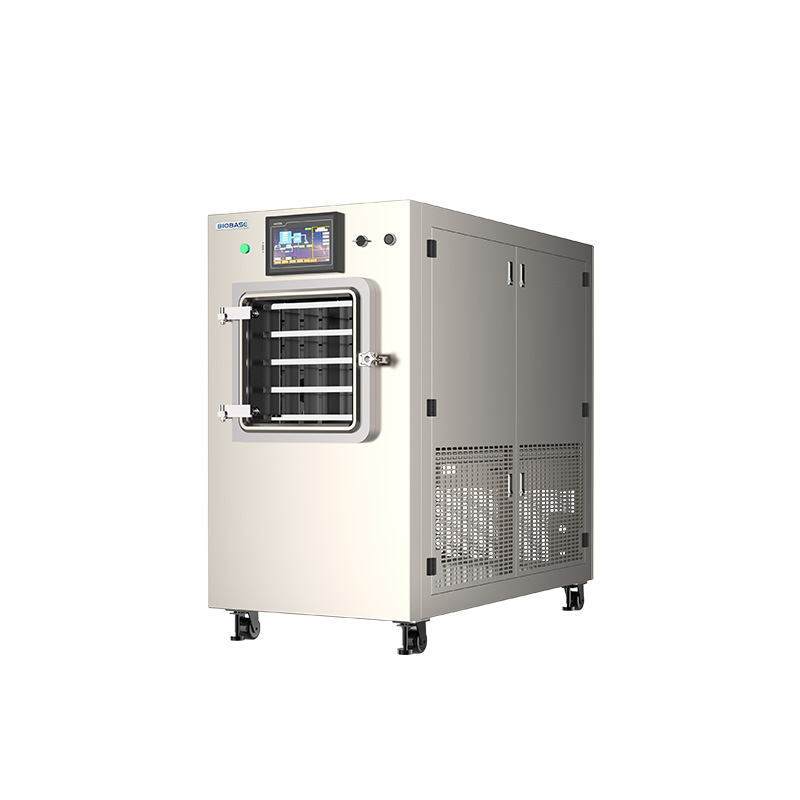

Pilot freeze dryer
BK-PFD50S / BK-PFD50T / BK-PFD100S / BK-PFD100T
Biobase freeze dryer(square cabinet) is made of SUS304 material, and the silicone oil circulation heating is used to ensure the uniformity of the cooling and heating of the shelf. The temperature difference is only 1 °C after the temperature balance of the shelf.
Key features
- Low-temperature condenser
- Vacuum control
- Benchtop and pilot configurations
Made to orderPrice on request
- Manufacturer
- BIOBASE
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.
01 / Accessories
Available accessories
Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.
02 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BK-PFD50S | BK-PFD50T | BK-PFD100S | BK-PFD100T |
|---|---|---|---|---|
| Type | Standard | Stoppering | Standard | Stoppering |
| Freeze Drying Area | 0.7m 2 | 0.5m 2 | 1.03m 2 | 1.15m 2 |
| Shelf Temperature | ||||
| Cold Trap Temperature | ||||
| Vacuum Degree | ||||
| Water Capture Capacity | ≥10 kg/24 h | ≥10 kg/24 h | ≥15 kg/24 h | ≥15 kg/24 h |
| Cold Trap Volume | ||||
| Cold Trap Size(Diameter*H) | ||||
| Drying Chamber Size(W*D*H) | 410 × 410 × 560 mm | 610 × 510 × 560 mm | 580 × 410 × 560 mm | 700 × 600 × 740 mm |
| Shelf Size(W*D*H) | Shelf: 480 × 360 × 18 mm | Shelf: 410 × 410 × 18 mm | Shelf: 480 × 360 × 18 mm | Shelf: 480 × 600 × 18 mm |
| Qty. of Shelf&Tray | Shelf: 4+1,Tray: 4 | Shelf: 3+1,Tray: 3 | Shelf: 6+1,Tray: 6 | Shelf: 4+1,Tray: 4 |
| Sample Loading Capacity(Liquid) | 7 L | 5 L | 10 L | 11 L |
| Height Between Trays | 70 mm | 70 mm | 100 mm | 100 mm |
| Tray Temperature Difference | ||||
| Refrigerant | ||||
| Condenser Cooling Mode | ||||
| Defrost Mode | Natural defrosting(Option electric defrosting) | Electric defrosting | Electric defrosting | Electric defrosting |
| Total Qty. of Vial | Ф12 mm Ф16 mm Ф22 mm | 3705 2058 1050 | / | 8624 4758 2460 |
| Vacuum Pump | 8 L/S(29m3/h) | 8 L/S(29m3/h) | 15 L/S(54m3/h) | 15 L/S(54m3/h) |
| Optional Accessory | ||||
| Silicone Oil Heating Rods Consumption | 1000 W | 1000 W | 1600 W | 1600 W |
| Total Consumption | 5.5KW | 6.5KW | 6.5KW | 7.5KW |
| Power Supply | ||||
| Main Body Weight | 600 kg | 800 kg | 700 kg | 1000 kg |
| External Size(W*D*H) | 823 × 1008 × 1420 mm | 911 × 1405 × 1983 mm | 876 × 1190 × 1720 mm | 1823 × 1144 × 2014 mm |
| Packing Size(W*D*H) And Gross Weight | Main Body | 1300 × 1700 × 2220 mm/830 kg | 1276 × 1400 × 2020 mm/730 kg | 2200 × 1444 × 2314 mm/1030 kg |
| Packing Size(W*D*H) And Gross Weight (2) | Vacuum Pump | 820 × 350 × 520 mm/75 kg | 820 × 350 × 520 mm/75 kg | 820 × 350 × 520 mm/75 kg |
