vertical freeze dryer

BK-FD18S / BK-FD18P / BK-FD18T / BK-FD18PT

Vacuum freeze-drying technology is also known as sublimation drying. The principle is to freeze a sample containing water in advance, and then sublimate its moisture under vacuum.

Key features

Low-temperature condenser
Vacuum control
Benchtop and pilot configurations

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Vacuum pump 4 L/S
Material tray*4(Material tray*3 for T/PT)
Drying rack*1
Cover*1
Acrylic bucket*1(all models) Conical-mouth flask 100 mL*2pcs
200 mL*2pcs
250 mL*2pcs
500 mL*2pcs
Switch valve*8 pcs(only for Model BK-FD18P/PT)
USB port

Optional accessories

Vacuum pump of other specifications
Oil mist filter
Automatic air intake function
Automatic water drainage function
And other customization(for all models) 600 mL/1200 mL wide-mouth flask(for BK-FD18P/PT) Tray*2(for BK-FD10S/P)

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-FD18S	BK-FD18P	BK-FD18T	BK-FD18PT

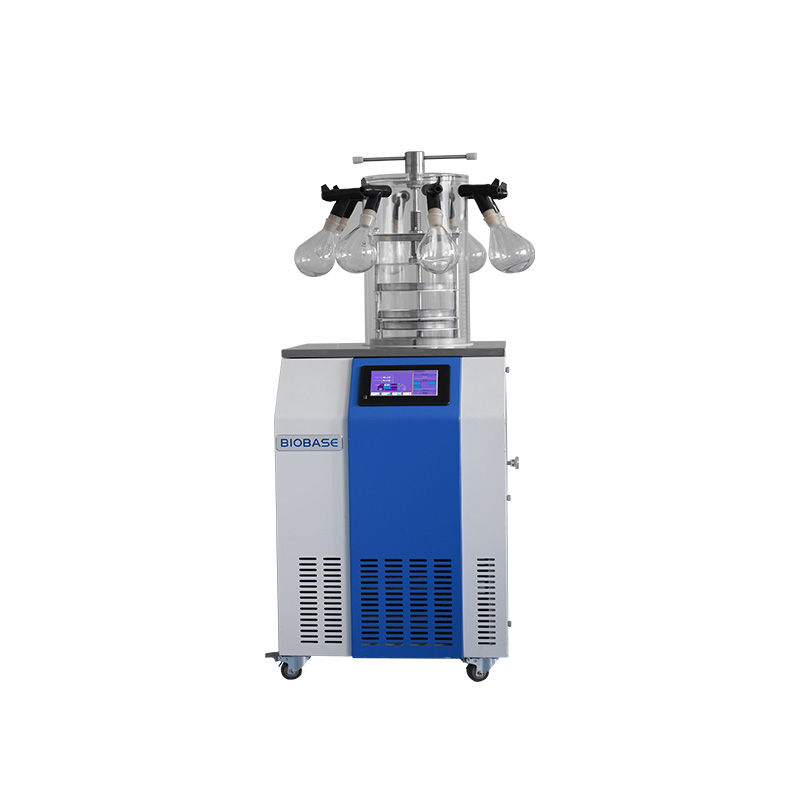

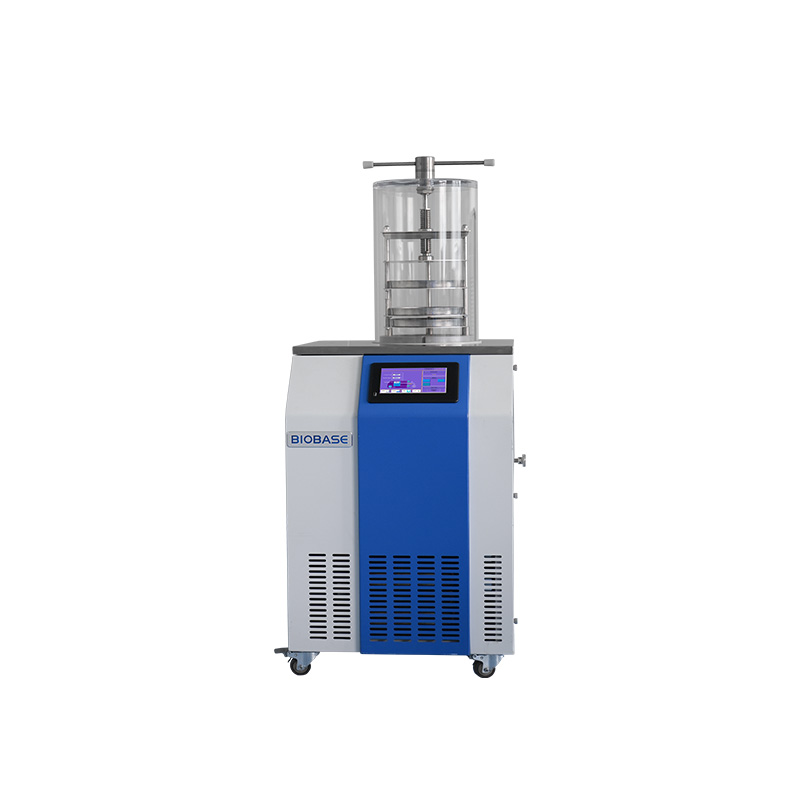

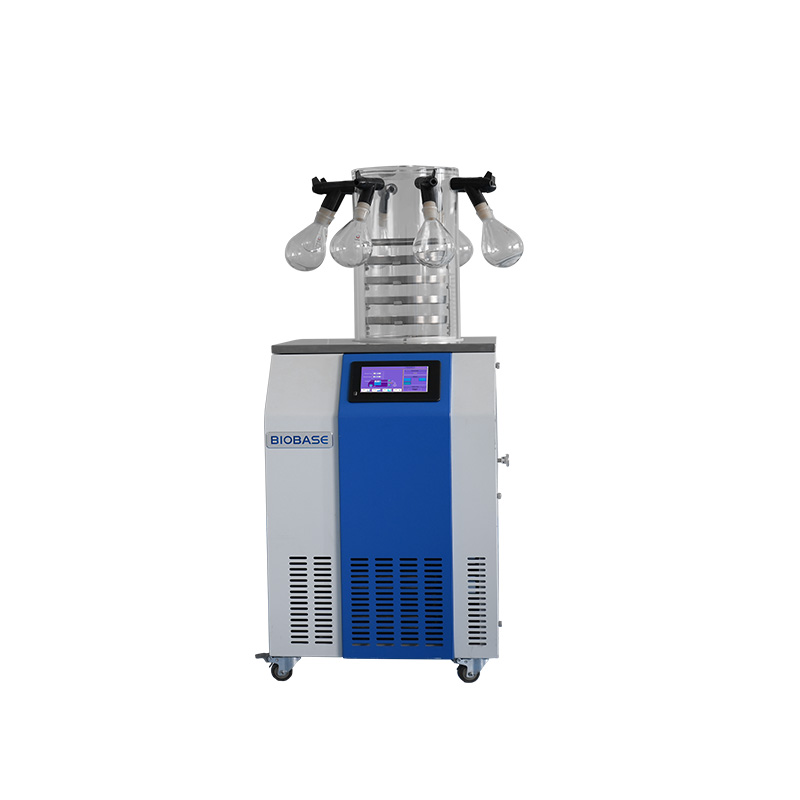

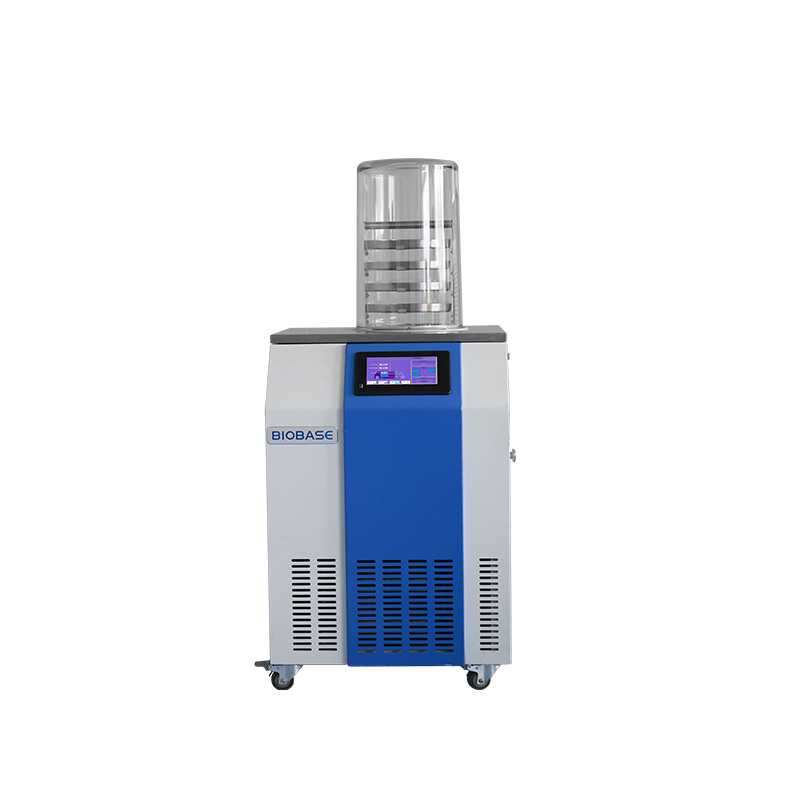

Type	Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering · chamber with 8 port manifold
Freeze Drying Area	0.18㎡(Standard) 0.27㎡(Optional)	0.18㎡(Standard) 0.27㎡(Optional)	0.09㎡	0.09㎡
Tray	4pcs(Standard) 6pcs(Optional)	4pcs(Standard) 6pcs(Optional)	3pcs	3pcs
Height Between Trays	75 mm	75 mm	/	/
Cold Trap Temperature	Common to all models≤-60 °C(No load)(-80 °C, -110°Coptional)
Cold Trap Capacity	Common to all models28 L
Cold Trap Size(Diameter*H)	Common to all modelsΦ300 × 410 mm
Vacuum Degree	Common to all models≤5 Pa
Water Capture Capacity	Common to all models6 L/24 h
Tray Size(D*H)	Φ240 × 20 mm	Φ240 × 20 mm	Φ200 × 20 mm	Φ200 × 20 mm
Freeze Drying Time	Common to all models24–36 h
Suggested Loading Capacity (Liquid)	1.8 L(Standard) 2.7 L(Optional)	1.8 L(Standard) 2.7 L(Optional)	0.9 L	0.9 L
Total Loading Capacity(Liquid)	3.6 L(Standard) 5.4 L(Optional)	3.6 L(Standard) 5.4 L(Optional)	1.8 L	1.8 L
Drying Chamber Size(Diameter*H)	Common to all modelsΦ300 × 465 mm
Total Qty. of Vial Φ22	244(Standard) 366(Optional)	244(Standard) 366(Optional)	183	183
Total Qty. of Vial Φ16	460(Standard) 690(Optional)	460(Standard) 690(Optional)	345	345
Total Qty. of Vial Φ12	820(Standard) 1230(Optional)	820(Standard) 1230(Optional)	615	615
Refrigerant	Common to all models-60 °C: R600a, R23–80 °C: R404a, R23
Cooling System	Common to all modelsStandard: Air cooling Optional: Water cooling
Power Supply	Common to all modelsStandard: 220 V, 50 Hz Optional: 220 V, 60 Hz, 110 V, 60 Hz
Power Consumption	Common to all models1800 W
Standard Accessory	Common to all modelsVacuum pump 4 L/S, Material tray4(Material tray3 for T/PT), Drying rack1, Cover1, Acrylic bucket1(all models) Conical-mouth flask 100 mL2pcs, 200 mL2pcs, 250 mL2pcs, 500 mL2pcs, Switch valve8 pcs(only for Model BK-FD18P/PT), USB port
Optional Function&Accessory	Common to all modelsVacuum pump of other specifications, oil mist filter, automatic air intake function, automatic water drainage function, and other customization(for all models) 600 mL/1200 mL wide-mouth flask(for BK-FD18P/PT) Tray*2(for BK-FD10S/P)
External Size(WDH)	Common to all models545 × 686 × 938 mm
Package Size(WDH) — Main Body	Common to all models835 × 680 × 1230 mm
Package Size(WDH) — Accessory	Common to all models725 × 665 × 705 mm
Gross Weight — Main Body	Common to all models-60 °C: 118 kg -80 °C: 136 kg
Gross Weight — Accessory	52 kg	54 kg	60 kg	62 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
