Included accessories
- -56 °C cold trap
- Vacuum pump 4 L/S
- 14.4m³
- Material tray(for all models) Flasks 100 mL*2
- 250 mL*2
- 500 mL*2
- 1000 mL*2 (only for Model BK-FD18P/PT)
Photography and technical data supplied by: BIOBASE · 4 images.
Freeze drying
Vertical Freeze Dryer
BK-FD18S(-56/-80) / BK-FD18P(-56/-80) / BK-FD18T(-56/-80) / BK-FD18PT(-56/-80)
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used in drugs, biological products, chemical and food industries.
Key features
- Low-temperature condenser
- Vacuum control
- Benchtop and pilot configurations
Made to orderPrice on request
- Manufacturer
- BIOBASE
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.
01 / Accessories
Available accessories
Optional accessories
- -80 °C -110 °C cold trap
- Anti-reverse oil stop valve
- Oil mist filter
- Import vacuum pump(for all models)
- Conical-mouth flask and wide-mouth flask(for BK-FD18P/PT)
Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.
02 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BK-FD18S(-56/-80) | BK-FD18P(-56/-80) | BK-FD18T(-56/-80) | BK-FD18PT(-56/-80) |
|---|---|---|---|---|

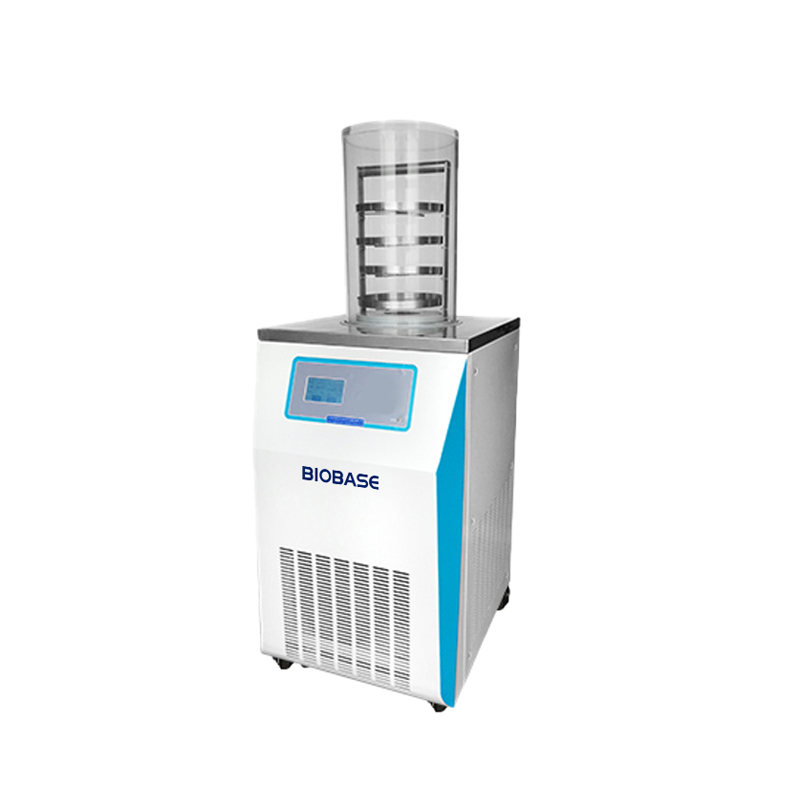

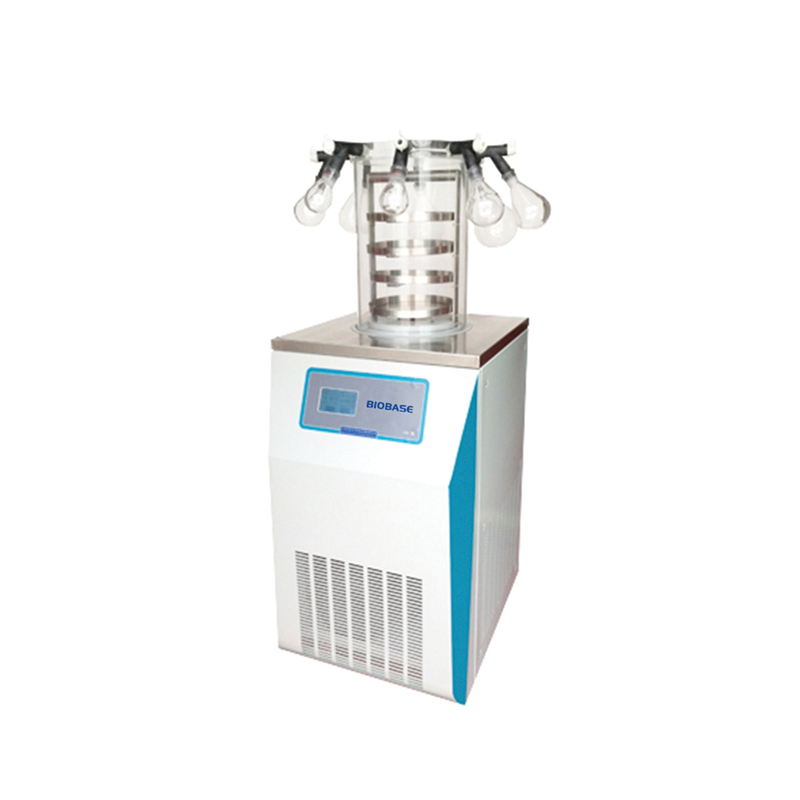

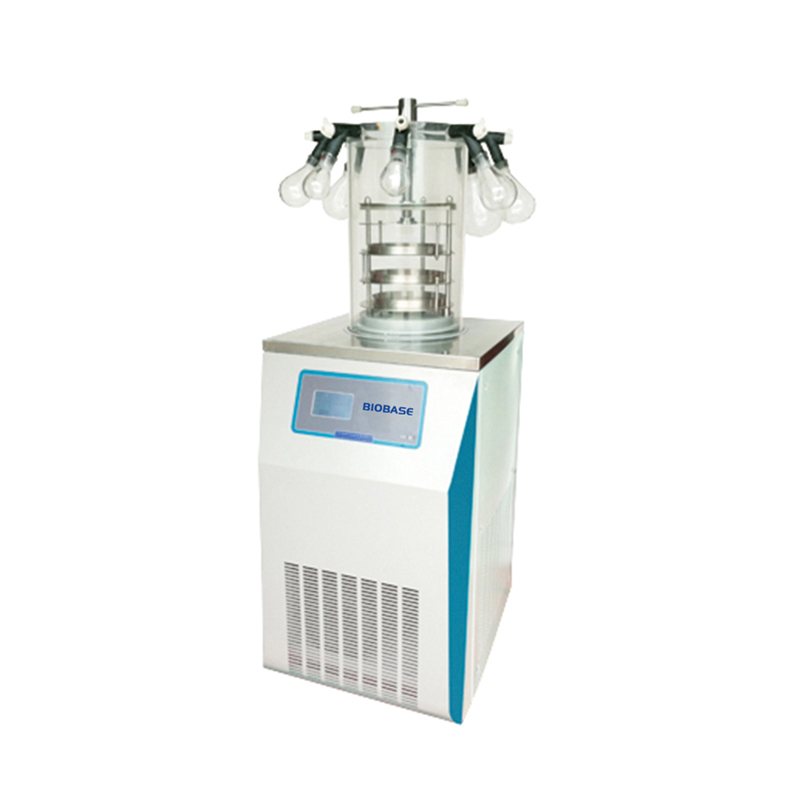

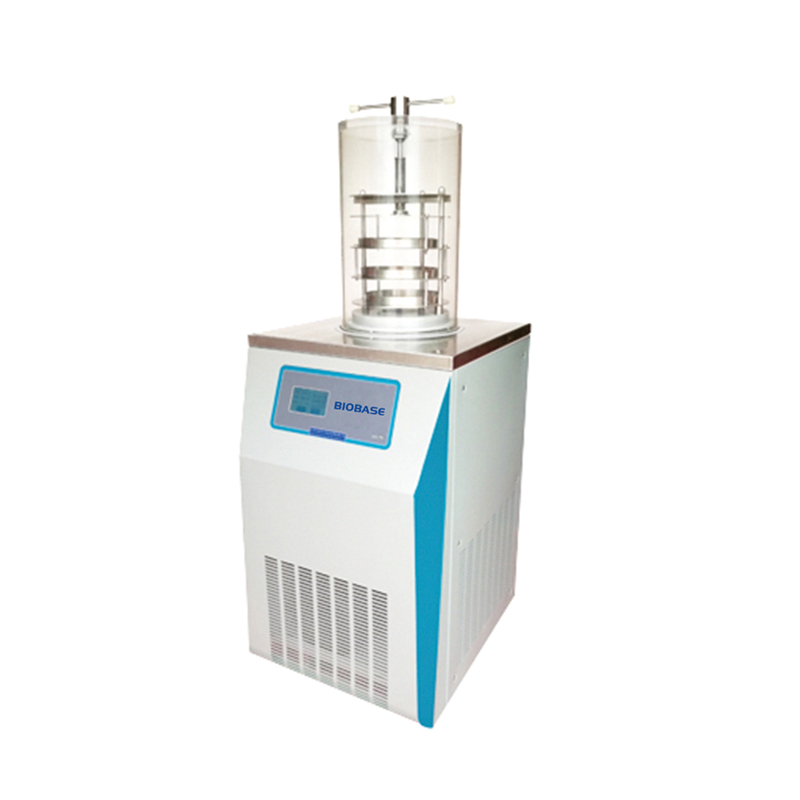

| Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering · chamber with 8 port manifold |
| Freeze Drying Area | 0.18m² | 0.18m² | 0.09m² | 0.09m² |
| Tray | 4pcs | 4pcs | 3pcs | 3pcs |
| Height Between Trays | ||||
| Cold Trap Temperature | ||||
| Cold Trap Capacity | ||||
| Cold Trap Size (Dr*H) | ||||
| Vacuum Degree | ||||
| Water Capture Capacity | ||||
| Tray Size (D*H) | Φ240 × 18 mm | Φ240 × 18 mm | Φ200 × 18 mm | Φ200 × 18 mm |
| Freeze Drying Time | ||||
| Loading Capacity/Shelf (Liquid) | 0.45 L | 0.45 L | 0.3 L | 0.3 L |
| Total Loading Capacity (Liquid) | 1.8 L | 1.8 L | 0.9 L | 0.9 L |
| Drying Chamber Size (D*H) | Φ300 × 445 mm | Φ300 × 465 mm | Φ300 × 540 mm | Φ300 × 570 mm |
| Can Load Vials Qty | ||||
| Can Load Vials Qty (2) | ||||
| Can Load Vials Qty (3) | ||||
| Refrigerant | ||||
| Cooling System | ||||
| Consumption | -56 °C: 1.4KW; · -80 °C: 2.1KW. | -56 °C: 1.4KW; · -80 °C: 2.1KW. | -56 °C: 1.4KW; -80 °C: 2.1KW. | -56 °C: 1.4KW; -80 °C: 2.1KW. |
| Power Supply | ||||
| Standard Accessory | ||||
| Optional Function & Accessory | ||||
| External Size (W*D*H) | 630 × 580 × 970/1415 mm | 630 × 580 × 970/1435 mm | 630 × 580 × 970/1510 mm | 630 × 580 × 970/1810 mm |
| Package Size(W*D*H)mm / · Gross Weight — Main Body | ||||
| Package Size(W*D*H)mm / · Gross Weight — Drying Chamber | 420 × 420 × 560(14 kg) | 430 × 430 × 660 (26 kg) | 430 × 430 × 660 (26 kg) | 430 × 430 × 660 (26 kg) |
| Package Size(W*D*H)mm / · Gross Weight — Vacuum Pump | ||||
