60℃ -80℃ Vacuum Lyophilizer Freeze Dryer Machine

BK-FD12S(-60/-80) / BK-FD12P(-60/-80) / BK-FD12T(-60/-80) / BK-FD12PT(-60/-80)

BIOBASE -60 °C -80 °C Vacuum Lyophilizer Freeze Dryer Machine

Key features

Low-temperature condenser
Vacuum control
Benchtop and pilot configurations

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

-60 °C cold trap
Vacuum pump 2 L/S
8m³/h
Material tray
Material rack
PC cover (for all models)
Conical-mouth flask 500 mL*8pcs
Switch valve*8pcs (only for Model BK-FD12P/PT)

Optional accessories

-80 °C cold trap
Electric defrost function
Nitrogen gas filling valve
Oil mist filter (for all models)
· 800 mL wide-mouth flask(for BK-FD12P/PT)

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-FD12S(-60/-80)	BK-FD12P(-60/-80)	BK-FD12T(-60/-80)	BK-FD12PT(-60/-80)

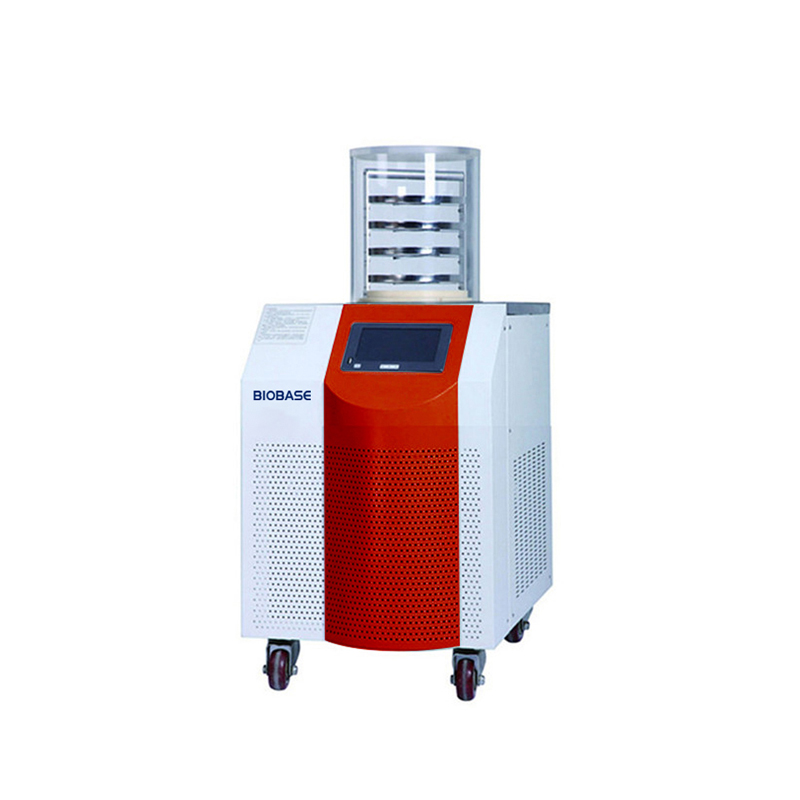

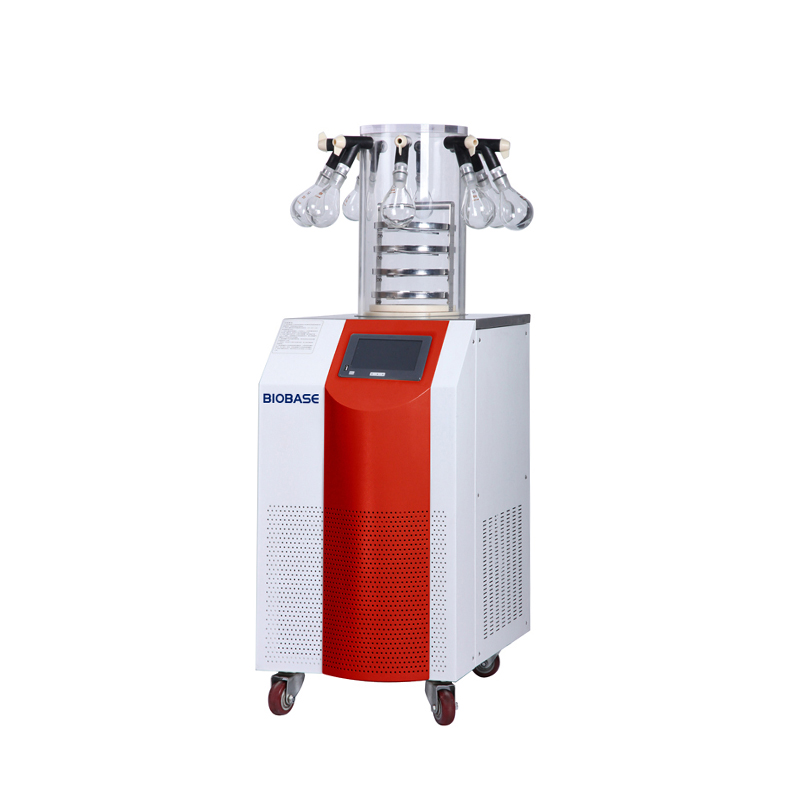

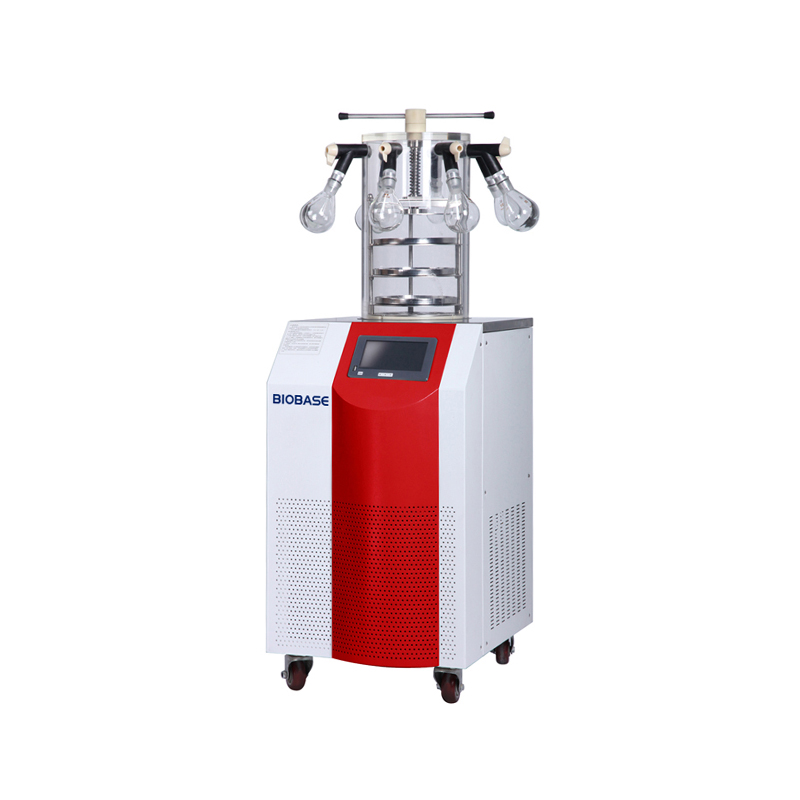

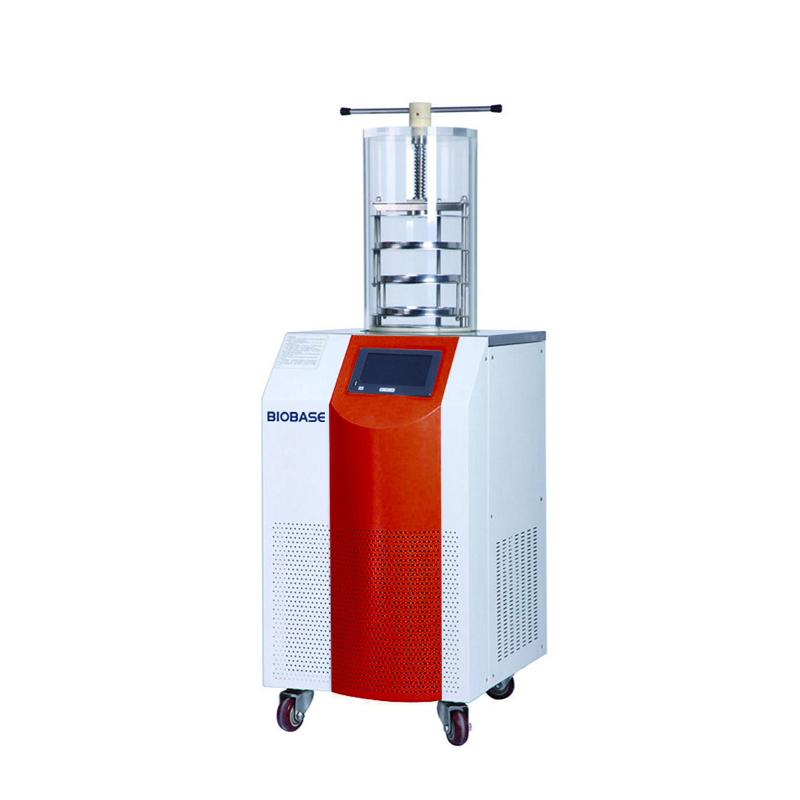

Type	Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering · chamber with 8 port manifold
Freeze Drying Area	0.12m²	0.18m²	0.09m²	0.09m²
Tray	4/6(Optional)pcs	4/6(Optional)pcs	3pcs	3pcs
Height Between Trays	76/50 mm	76/50 mm	70 mm	70 mm
Cold Trap Temperature	Common to all models≤-60 °C/-80 °C(Optional)
Cold Trap Capacity	Common to all models9.3 L
Cold Trap Size (Dr*H)	Common to all modelsΦ217 × 250 mm
Vacuum Degree	Common to all models<10 Pa
Water Capture Capacity	Common to all models4 kg/24 h
Tray Size (D*H)	Common to all modelsΦ200 × 20 mm
Freeze Drying Time	Common to all models24 h
Loading Capacity/Shelf (Liquid)	Common to all models0.3 L
Total Loading Capacity (Liquid)	1.2 L	1.8 L	0.9 L	0.9 L
Drying Chamber Size (D*H)	Common to all modelsLower circle Φ260 mm, Upper circle Φ240 mm Height 450 mm
Can Load Vials Qty	Common to all modelsΦ22 mm · 260 · 260 · 195 · 195
Can Load Vials Qty (2)	Common to all modelsΦ16 mm · 480 · 480 · 360 · 360
Can Load Vials Qty (3)	Common to all modelsΦ12 mm · 920 · 920 · 690 · 690
Refrigerant	Common to all modelsR600a+R290+R23
Cooling System	Common to all modelsAir cooling
Consumption	Common to all models-60 °C: 0.9 kW,-80 °C: 1.5 kW(Optional)
Power Supply	Common to all models220 V/50 Hz, 60 Hz (single phase); 110 V/60 Hz(single phase, only for -60 °C)
Standard Accessory	Common to all models-60 °C cold trap, Vacuum pump 2 L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500 mL8pcs, Switch valve8pcs (only for Model BK-FD12P/PT)
Optional Function & Accessory	Common to all models-80 °C cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models); · 800 mL wide-mouth flask(for BK-FD12P/PT)
External Size (WDH)	Common to all models480 × 620 × 920/1370 mm
Package Size (WDH)mm/ · Gross Weight — Main Body	Common to all models730 × 600 × 1180(80 kg)
Package Size (WDH)mm/ · Gross Weight — Drying Chamber	Common to all models400 × 400 × 620(15 kg)
Package Size (WDH)mm/ · Gross Weight — Vacuum Pump	Common to all models570 × 240 × 360(22 kg)

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
