Photography and technical data supplied by: BIOBASE · 2 images.
Sterilisation

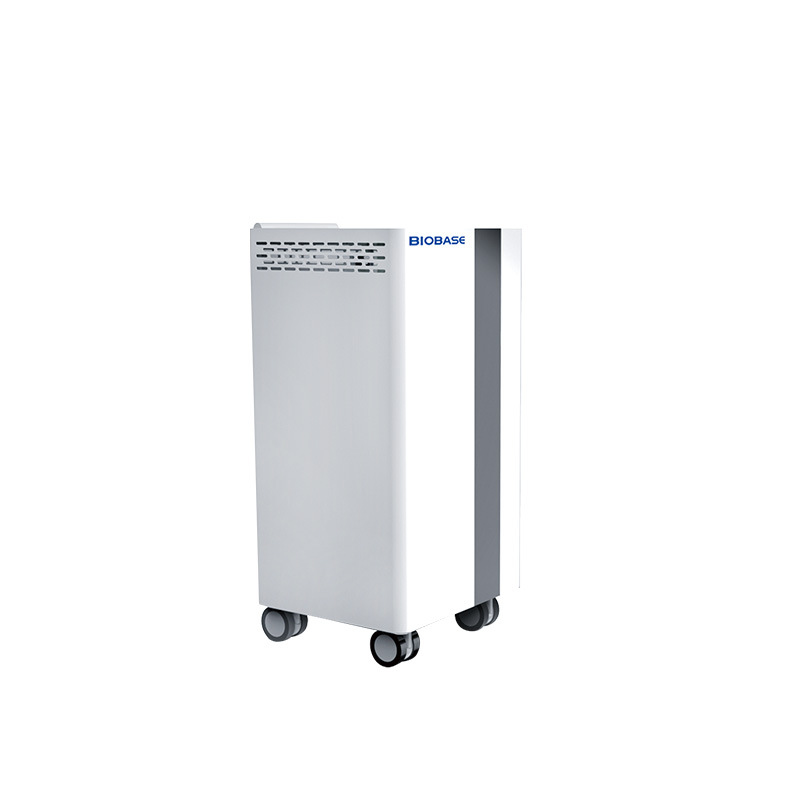

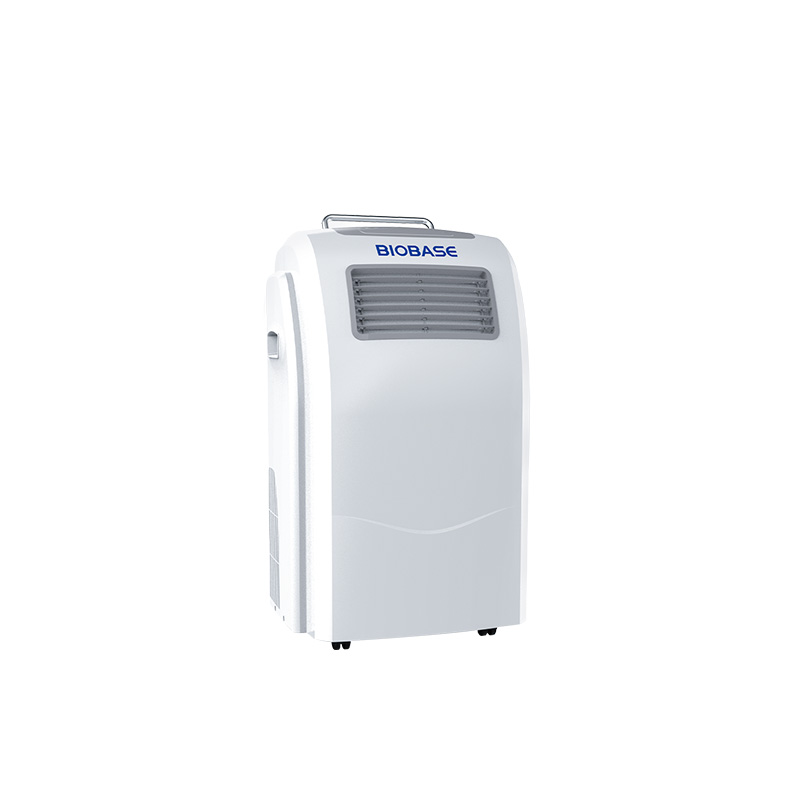

UV Air Sterilizer (Mobile)
BK-Y-600 / BK-Y-800 / BK-Y-1000 / BK-Y-1300 / BKB-Y-800
The sterilizer is suitable for use in medical institutions, laboratory, production workshops with hygienic requirements, public places where disinfection is required, and family rooms, etc.
Key features
- Thermal, UV, plasma or chemical processes
- Capacities and formats for different loads
- Integrated safety systems
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BK-Y-600 | BK-Y-800 | BK-Y-1000 | BK-Y-1300 | BKB-Y-800 |
|---|---|---|---|---|---|
| Applicable Space | ≤60m³ | ≤80m³ | ≤100m³ | ≤130m³ | ≤80m³ |
| Circulating Air | ≥600m³/h | ≥800m³/h | ≥1000m³/h | ≥1300m³/h | ≥800m³/h |
| Shell Material | ABS, anti-UV | ABS, anti-UV | ABS, anti-UV | ABS, anti-UV | Metal shell |
| Filter | Filter dust particles above 5 µm | Filter dust particles above 5 µm | Filter dust particles above 5 µm | Filter dust particles above 5 µm | · |
| UV Lamp Life | |||||
| UV Leakage | ≤2µW/cm² | ≤3µW/cm² | ≤1µW/cm² | ≤1µW/cm² | ≤1µW/cm² |
| O₃ Leakage | ≤0.006 mg/m³ | ≤0.007 mg/m³ | ≤0.019 mg/m³ | ≤0.022 mg/m³ | ≤0.0114 mg/m³ |
| Negative Ion Generation | |||||
| Natural Bacteria Extinction Rate | |||||
| Sterilization Rate of Staphylococcus Albus | |||||
| Noise | |||||
| Consumption | ≤230 W | ≤260 W | ≤300 W | ≤340 W | ≤150 W |
| Power Supply | AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional) | AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional) | AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional) | AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional) | AC220V, 50/60 Hz(Standard); AC110V, 50/60 Hz(Optional)(External transformer) |
| External Size(W*D*H) | 540 × 410 × 900 mm · | 540 × 410 × 900 mm · | 540 × 410 × 900 mm · | 540 × 410 × 900 mm · | 370 × 360 × 710 mm |
| Net Weight | 19.1 kg | 19.4 kg | 21.5 kg | 21.9 kg | 21.5 kg |
| Package Size(W*D*H) | 574 × 481 × 975 mm · | 574 × 481 × 975 mm · | 574 × 481 × 975 mm · | 574 × 481 × 975 mm · | 440 × 430 × 780 mm |
| Gross Weight | 22.5 kg | 22.7 kg | 24.8 kg | 24.8 kg | 27.5 kg |
