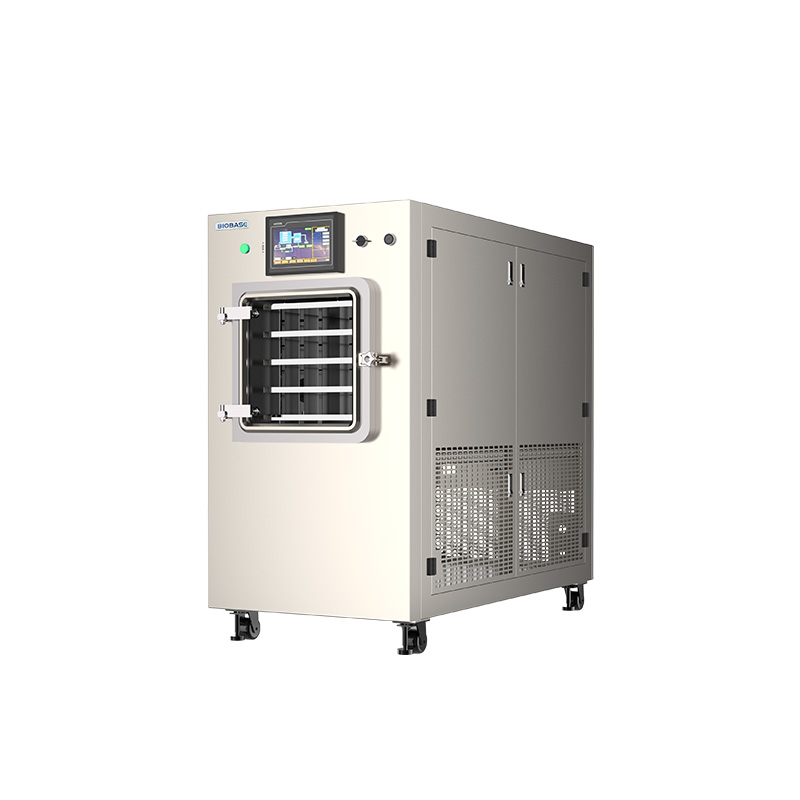

BIOBASE BK-PFD20S / BK-PFD20T / BK-PFD30S / BK-PFD30T Pilot Freeze Dryer BK-PFD20S BK-PFD20T BK-PFD30S BK-PFD30T

Photography and technical data supplied by: BIOBASE · 1 image.

Freeze drying

Pilot Freeze Dryer BK-PFD20S BK-PFD20T BK-PFD30S BK-PFD30T

BK-PFD20S / BK-PFD20T / BK-PFD30S / BK-PFD30T

Sample freeze drying from benchtop to pilot scale.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Low-temperature condenser
  • Vacuum control
  • Benchtop and pilot configurations

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-PFD20SBK-PFD20TBK-PFD30SBK-PFD30T
TypeStandardStopperingStandardStoppering
Freeze Drying Area0.3m 20.2m 20.4m 20.3m 2
Shelf Temperature
Common to all models-55℃～+70℃(no-loading)
Cold Trap Temperature
Common to all models<-80℃(no-loading)
Vacuum Degree
Common to all models≤1Pa(no-loading)
Water Capture Capacity≥6kg/24h≥6kg/24h≥8kg/24h≥8kg/24h
Cold Trap Volume15L15L20L20L
Cold Trap Size(Diameter*H)Φ200*450 mmΦ200*450 mmΦ220*520 mmΦ220*520 mm
Drying Chamber Size(W*D*H)330*320*470mm420*320*490mm400*350*430mm380*380*540mm
Shelf Size(W*D*H)Shelf: 400*270*20mmShelf: 400*270*20mmShelf: 340*300*20mmShelf: 340*300*20mm
Qty. of Shelf&TrayShelf: 3+1,Tray: 3Shelf: 2+1,Tray: 2Shelf: 4+1,Tray: 4Shelf: 3+1,Tray: 3
Sample Loading Capacity(Liquid)3L2L4L3L
Height Between Trays70mm100mm50mm70mm
Tray Temperature Difference
Common to all models±1℃
Refrigerant
Common to all modelsR404A+R23
Condenser Cooling Mode
Common to all modelsAir cooling
Defrost ModeElectric defrostingElectric defrostingNatural defrostingElectric defrosting
Total Qty. of VialФ12mm Ф16mm Ф22mm1554 868 440/2187 1200 654
Vacuum Pump4L/S(14.4m3/h)4L/S(14.4m3/h)6L/S(22m3/h)6L/S(22m3/h)
Optional Accessory:
Common to all modelsImport vacuum pump Vacuum pump anti-return valve Oil mist filtration system Vacuum adjustment device
Silicone Oil Heating Rods Consumption
Common to all models600W
Total Consumption3KW4KW4.5KW5.5KW
Power Supply
Common to all modelsAC220V, 50Hz/60Hz(Standard); AC110V, 60Hz(Optional)
Main Body Weight300kg400kg300kg400kg
External Size(W*D*H)1033*781*1580mm1033*781*1704mm825*928*1366mm853*1277*1679mm
Packing Size(W*D*H) And Gross WeightMain Body1433*1081*2004mm/330kg1225*1228*1666mm/430kg1225*1577*1979mm/430kg
Packing Size(W*D*H) And Gross Weight (2)Vacuum Pump770*350*450mm/65kg770*350*450mm/65kg770*350*450mm/65kg

Photography and technical data supplied by BIOBASE.
