Photography and technical data supplied by: BIOBASE · 4 images.

Chromatography

High Performance Liquid Chromatography System Agress1100+

Agress1100+(Type I) / Agress1100+(Type II)

High performance liquid chromatography system designed for precise and efficient chemical analysis. This HPLC system with UV detector ensures reliable separation and accurate results for laboratory applications.

Key features

  • Configurable analytical separation
  • Selectable detectors and accessories
  • Matched to method and sample matrix
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Optional accessories

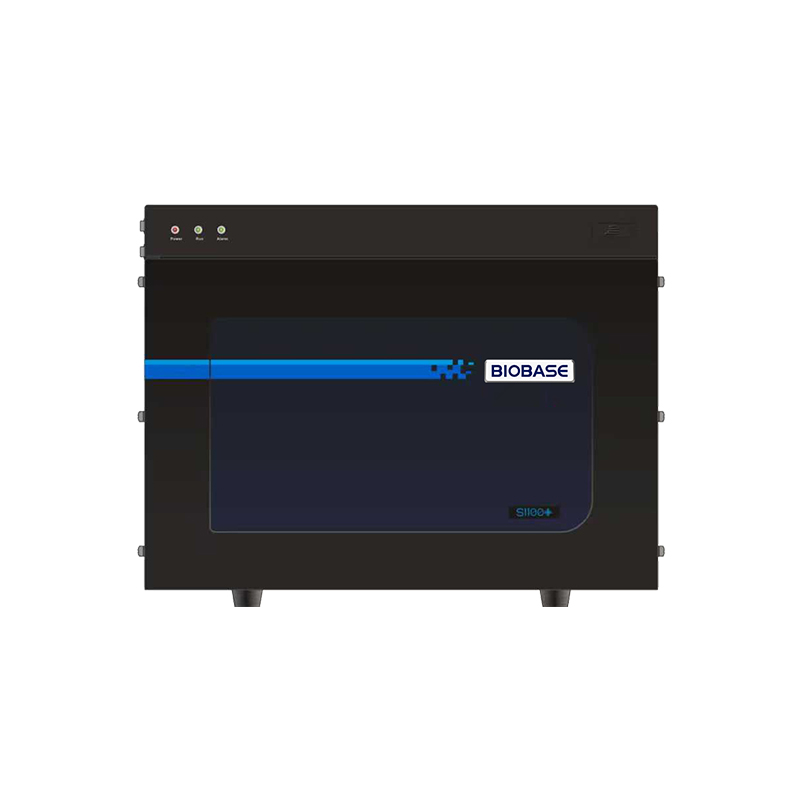

  • S1100+ autosampler
  • Column

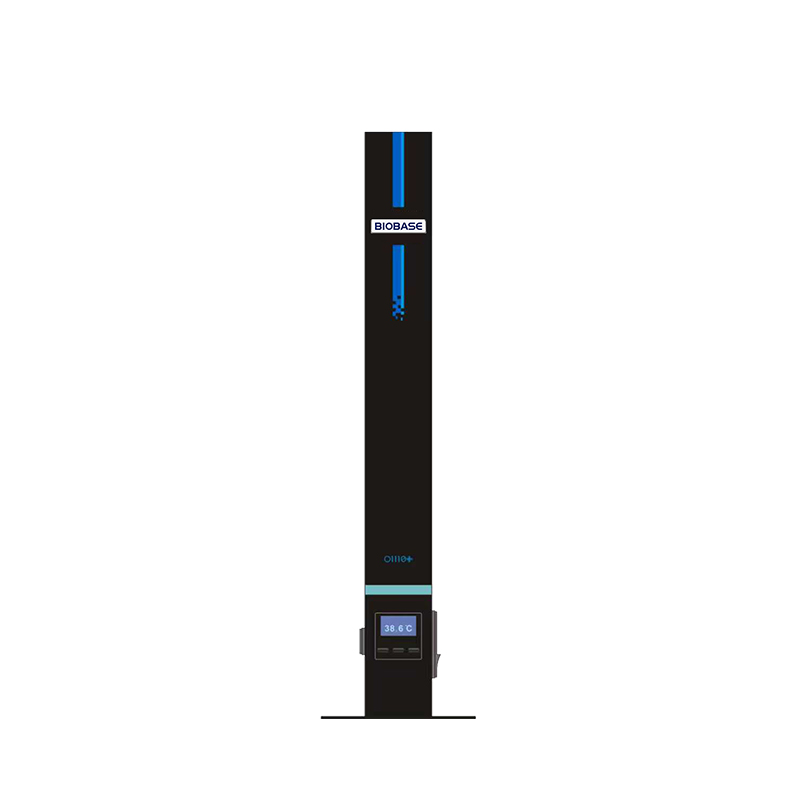

  • O1120+ column oven
  • Evaporative light scattering detector
  • Differential refractive index detector
  • Fluorescence detector
  • Solvent bottle

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterAgress1100+(Type I)Agress1100+(Type II)
Item
Common to all modelsSpecification
Wavelength Range
Common to all models190–700 nm
Light Resource
Common to all modelsDeuterium lamp
Display
Common to all models2 × 16 LCD
Spectral Bandwidth
Common to all models8 nm
Wavelength Accuracy
Common to all models±1 nm
Wavelength Repeatability
Common to all models≤1 nm
Set Fan of Wavelength-time Program
Common to all models0.1–999.9 min
Response Time
Common to all models0.1–5.0 s
Noise
Common to all models≤±1×10⁻⁵ AU (Empty flow cell, 254 nm, constant ambient temperature)
Drift
Common to all models≤1.5×10⁻⁴ AU/h (Empty flow cell, 254 nm, constant ambient temperature)
Linearity Range
Common to all models≥1.8AU (5 %, 254 nm)
Optical Path of Flow Cell
Common to all models10 mm
Withstand Voltage of Flow Cell
Common to all models≤8 MPa
Communication Mode
Common to all modelsRS232 or USB
Flow Rate
Common to all models0.001–10.000 mL/min (Step: 0.001 mL/min)
Accuracy
Common to all models≤ ±0.3 % (1.0 mL/min, 8 ± 2 MPa, water, ambient temperature)
Precision
Common to all models≤ 0.085 % (1.0 mL/min, 8 ± 2 MPa, water, ambient temperature)
Max Pressure
Common to all models45 MPa(0.001–5.000 mL/min) 20 MPa(5.001–10.000 mL/min)
Pressure Accuracy
Common to all models±3 % or <±0.8 MPa
Pressure Pulsation
Common to all models≤1 %
Leak-proofing Capability
Common to all modelsPressure drop≤1.5 MPa (40 MPa, 10 min)
Communication mode
Common to all modelsRS-485
Dimension/Net Weight
Common to all models420 × 260 × 160 mm/14 kg
Power Supply
Common to all modelsAC220V, 50 Hz
Power
Common to all models80 W
Temperature Range
Common to all modelsAmbient temperature+5–99 °C
Setting Precision
Common to all models0.1 °C
Temperature Accuracy
Common to all models≤±0.5 °C
Temperature Stability
Common to all models≤0.2 °C
Communication Interface
Common to all modelsRS-485
No.ItemsSpecifications
1Injection range0–100 µL, 500 µL, 2 mL
2Injection repeatabilityRSD<0.3 % Full sample loop injection (standard conditions) RSD<0.5 % Partial volume injection (lossy injection, standard conditions) RSD<1.0 % Partial volume injection (without loss, standard conditions)
3Injection linearityR²>0.999
4Sample residue<0.01 %
5Highest pressure45 MPa
6Communication methodUDP network communication
7Injection triggerDigital mode, analog mode
PumpP1100+*1P1100+*2
Detector

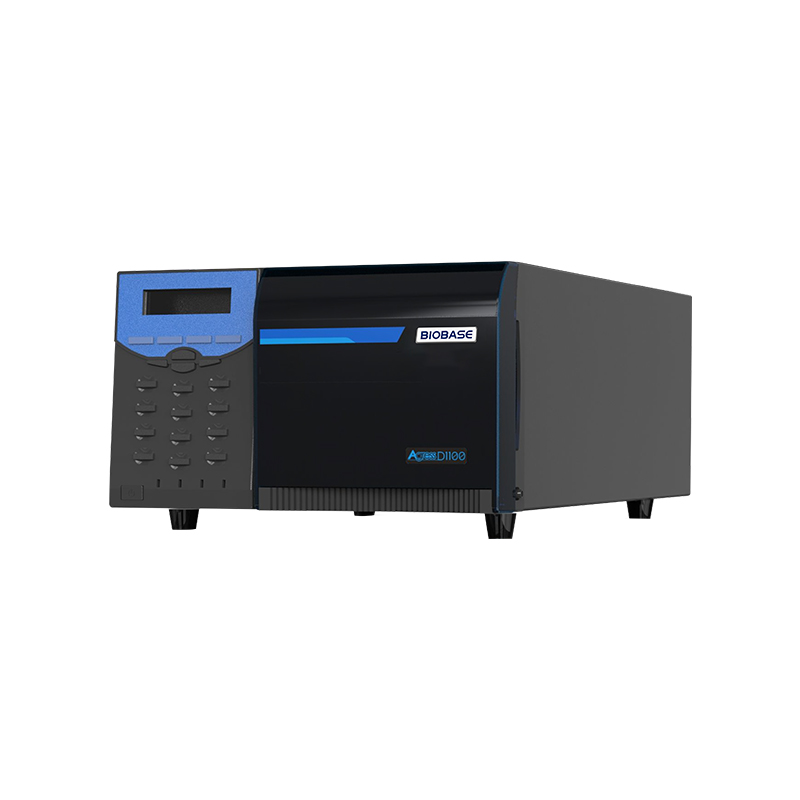

Common to all modelsD1100+*1
Sampler Injector
Common to all modelsRheodyne 7725i*1
Valve Mounting Frame
Common to all modelsVB1100+*1
Solvent Bottle Tray
Common to all modelsT1100+*1
Workstation
Common to all modelsKromstation*1
System Toolkit
Common to all modelsAgress1100+*1
Column
Common to all modelsSupersil ODS2 5 µm 4.6 × 250 mm*1
Gradient Mixer/TD-1–15 × 1
Power Supply (2)
Common to all modelsAC220V±10 %, 50 Hz
Optional Accessory
Common to all modelsS1100+ autosampler, column, O1120+ column oven, evaporative light scattering detector, differential refractive index detector, fluorescence detector, solvent bottle
Packing Size(W*D*H)580 × 400 × 280 mm 580 × 400 × 280 mm 580 × 400 × 280 mm580 × 400 × 280 mm 580 × 400 × 280 mm 580 × 400 × 280 mm 580 × 400 × 280 mm
Gross Weight16 kg 16 kg 8 kg16 kg 16 kg 16 kg 8 kg

Technical data supplied by BIOBASE.
