Chromatography

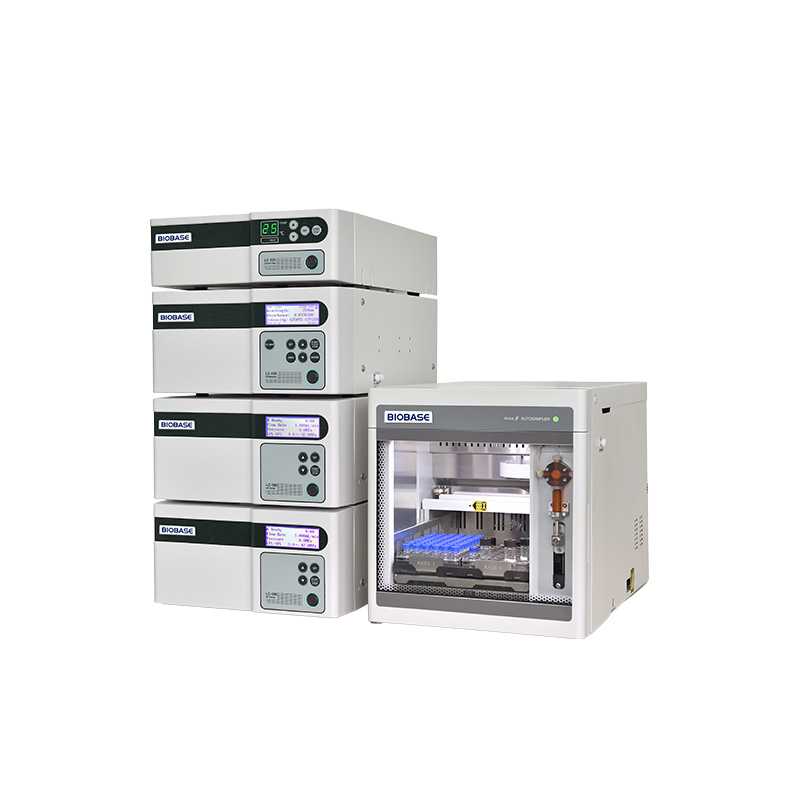

HPLC liquid chromatography system

BK-100HPLC (Type I) / BK-100HPLC (Type II) / BK-100HPLC (Type III) / BK-100HPLC (Type IV) / BK-100HPLC (Type V)

Liquid chromatography is a technique that uses a liquid as the mobile phase to separate mixtures through a stationary phase. It utilizes the differences in partition coefficients and adsorption capacities of various components between the two phases, achieves separation through repeated distribution equilibrium, and combines with detectors for qualitative and quantitative analysis.

Key features

  • Configurable analytical separation
  • Selectable detectors and accessories
  • Matched to method and sample matrix
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Optional accessories

  • UV detector
  • RI detector
  • PDA detector
  • ELSD detector
  • FLD100 detector
  • Column
  • LC-CO 100 standard column oven
  • ARCUS 5 auto-sampler

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-100HPLC (Type I)BK-100HPLC (Type II)BK-100HPLC (Type III)BK-100HPLC (Type IV)BK-100HPLC (Type V)
Liquid Infusion System
Common to all modelsDual-piston reciprocating parallel pump, equipped with a binary high-pressure mixer
Flow Rate Range
Common to all models0.001–10 mL/min
Max Output Pressure
Common to all models42 MPa
Flow Accuracy
Common to all models≤±1 %
Flow Precision
Common to all modelsRSD<0.07 %
Qualitative Repeatability
Common to all modelsRSD6≤0.1 %(naphthalene/methanol standards)
Quantitative Repeatability
Common to all modelsRSD6≤0.3 %(naphthalene/methanol standards)
Pressure Fluctuation
Common to all models0.1 MPa
Power Supply
Common to all modelsAC220/110 V, 50/60 Hz
Flow Cell Volume
Common to all models8.0µl
Light Source
Common to all modelsD2 lamp
Wavelength Range
Common to all models190–680 nm
Spectrum Bandwidth
Common to all models8 nm
Wavelength Accuracy
Common to all models±1 nm
Wavelength Precision
Common to all modelsBelow 0.1 nm
Noise
Common to all models≤0.25 × 10⁻⁵AU(static)/±1 × 10⁻⁵AU(dynamic, under given conditions)
Drift
Common to all models≤0.4 × 10⁻³AU/h(static)/≤2 × 10⁻³AU/h(dynamic, under given conditions)
Minimum Detectable Concentration
Common to all models3 × 10⁻⁹g/ml(naphthalene/methanol solution)
Wavelength Range (2)
Common to all models200–900 nm(200–600*), Above 600 nm just for W lamp
Arrays
Common to all models512
Spectrum Bandwidth (2)
Common to all models10 nm
Light Source (2)
Common to all modelsD2 lamp+W lamp
Noise (2)
Common to all models±5 × 10⁻⁵AU
Sample Rate
Common to all modelsMax100Hz
Interface
Common to all modelsLAN, USB, R232

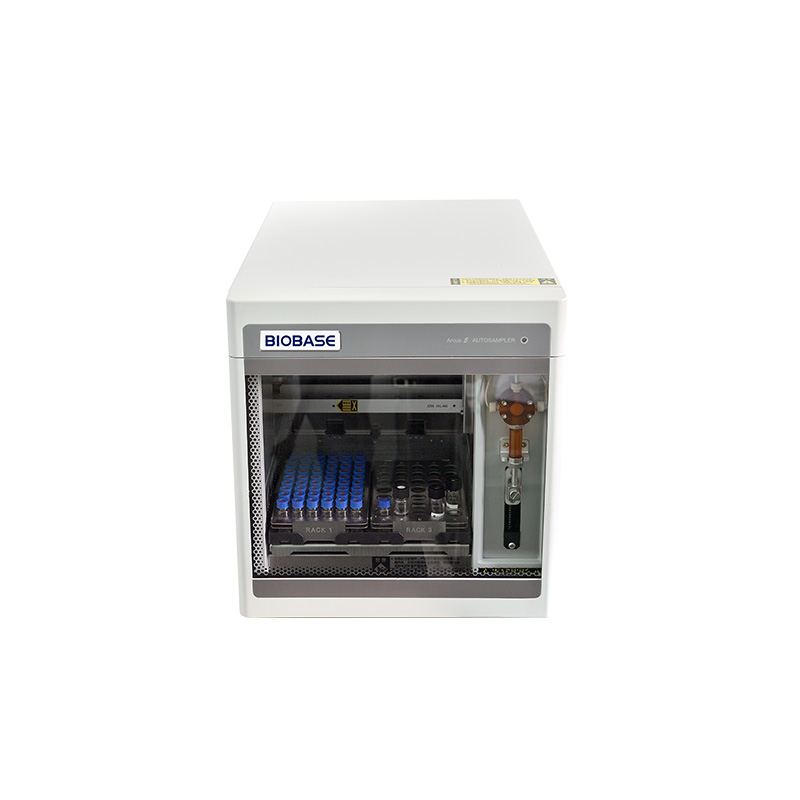

Sample Loading
Common to all modelsStandard tray (1) 2 mL*54 vials(default standard configuration) · Expanded tray (2) 10 mL*15 vials (3) 4 mL*35 vials · Each side could be set with one of the tray types and the tray in one side could be different from the other side; the system could automatically identify the tray type; maximum 108 vials are available(2 mL vial)
Vial Height
Common to all modelsH≤52 mm(including septa and cap-mat)
Metering Pump Volume
Common to all models200µl(precision: 0.1µl)
Injection Mode
Common to all modelsFull loop injection Partial loop injection No waste injection
Automatic Protection
Common to all modelsVial-missing alarm, sample needle fault alarm, pipeline jammed alarm, and leakage alarm
Power Supply (2)
Common to all modelsAC115–230 V, 50/60 Hz
System Test Quantitative Repeatability
Common to all modelsFull loop injection: RSD6≤0.3 % · Partial loop injection: RSD6≤0.5 %(injection volume ≥ 10µl) No waste injection: RSD6≤1.0 %(injection volume ≥ 10µl)
Memory Effect
Common to all models≤0.005 %(designated washing procedure)
Maximum Pressure
Common to all models40Mpa(conventional) 69Mpa(ultra-high performance system)
Software With Audit Trail//Yes ·YesYes
Diode Array Detector////Yes

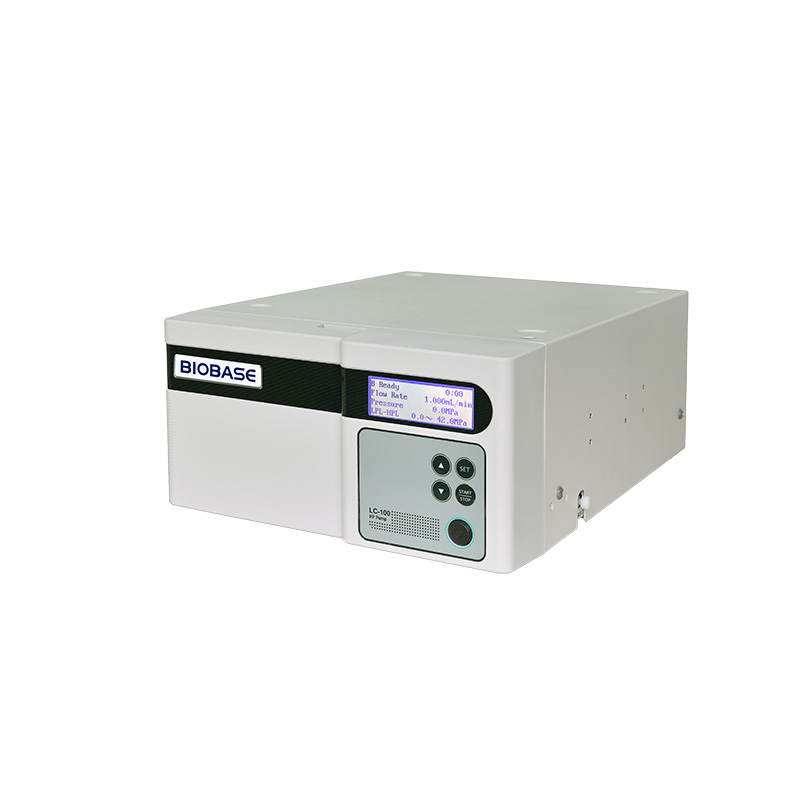

High-pressure Constant Flow PumpLC-100 HP*1LC-100 HP*2LC-100 HP*1LC-100 HP*2LC-100 HP*2

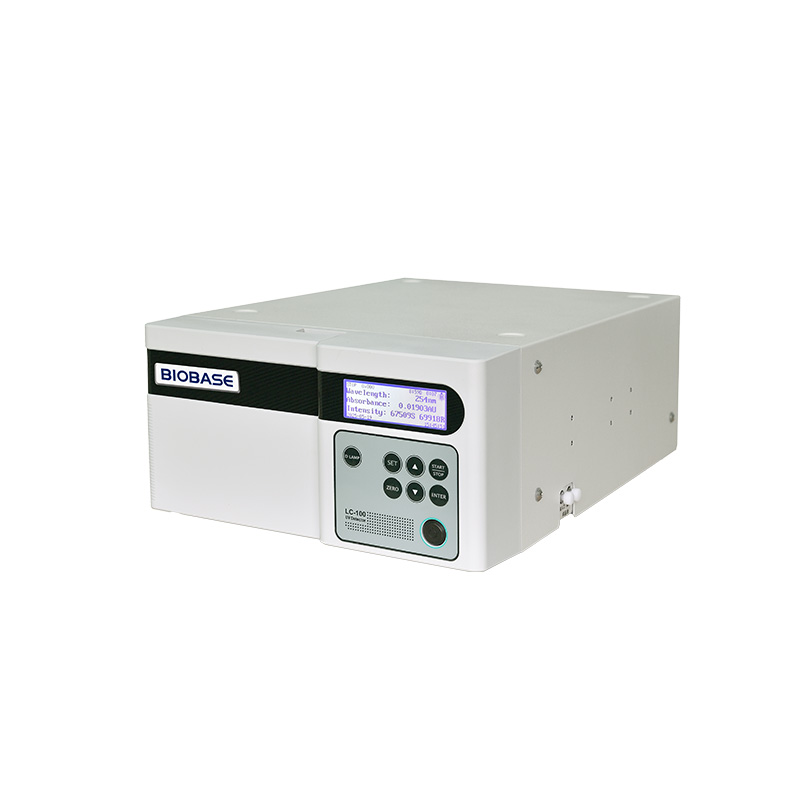

UV Detector · LC-100 UVYesYesYesYes/
Diode Array Detector (With English Workstation)////LC-100 PDA*1
Workstation LC-100 WSYesYes///
Workstation EX-Clarity C50//YesYes/
Manual Sampler 7725i
Common to all modelsYes
C18 5μm ID4.6*250mm (mm)
Common to all modelsYes
High-precision Mixer EX1600 MX3/Yes/YesYes
Optional Accessory
Common to all modelsUV detector, RI detector, PDA detector, ELSD detector, FLD100 detector, column, LC-CO 100 standard column oven, ARCUS 5 auto-sampler
Package Size (W*D*H)450 × 620 × 350 mm*2450 × 620 × 350 mm*3450 × 620 × 350 mm*2450 × 620 × 350 mm*3450 × 620 × 350 mm*2660 × 560 × 500 mm*1
Gross Weight19 kg; 15 kg19 kg; 19 kg; 15 kg19 kg; 15 kg19 kg; 19 kg; 15 kg19 kg; 19 kg; 18 kg

Technical data supplied by BIOBASE.
