Freeze drying

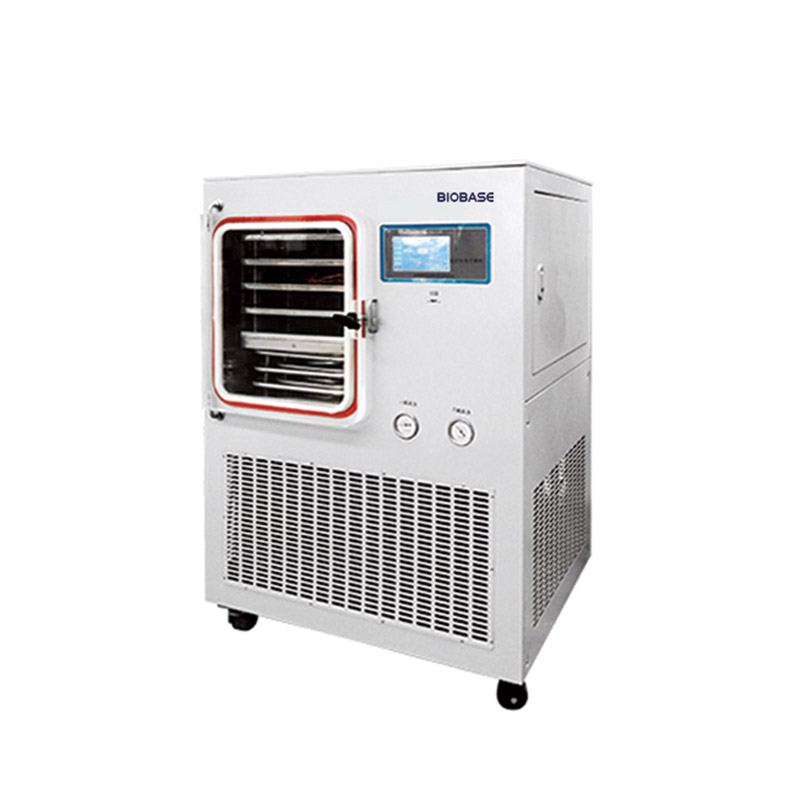

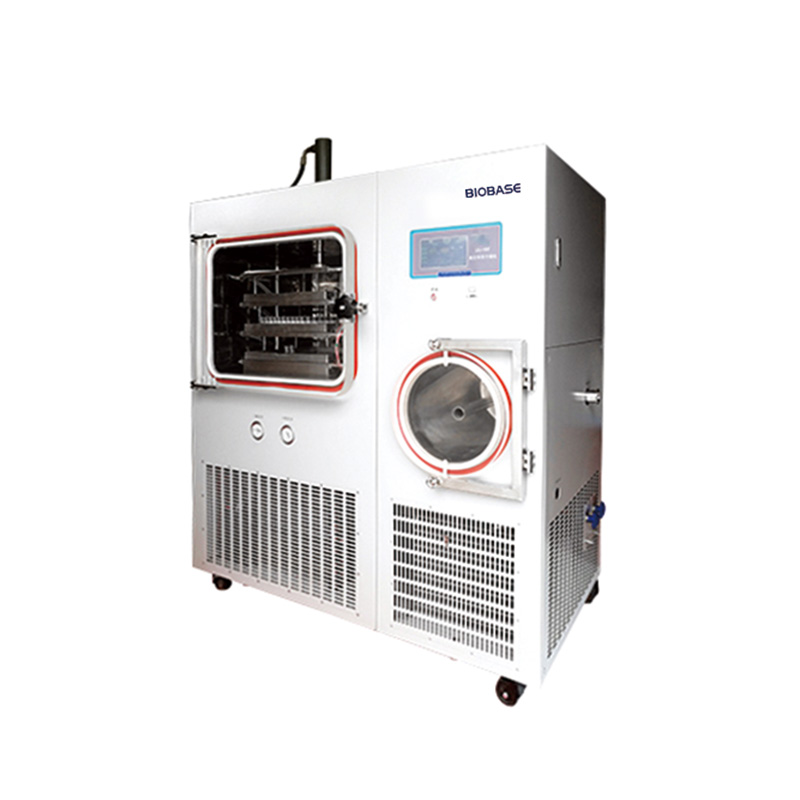

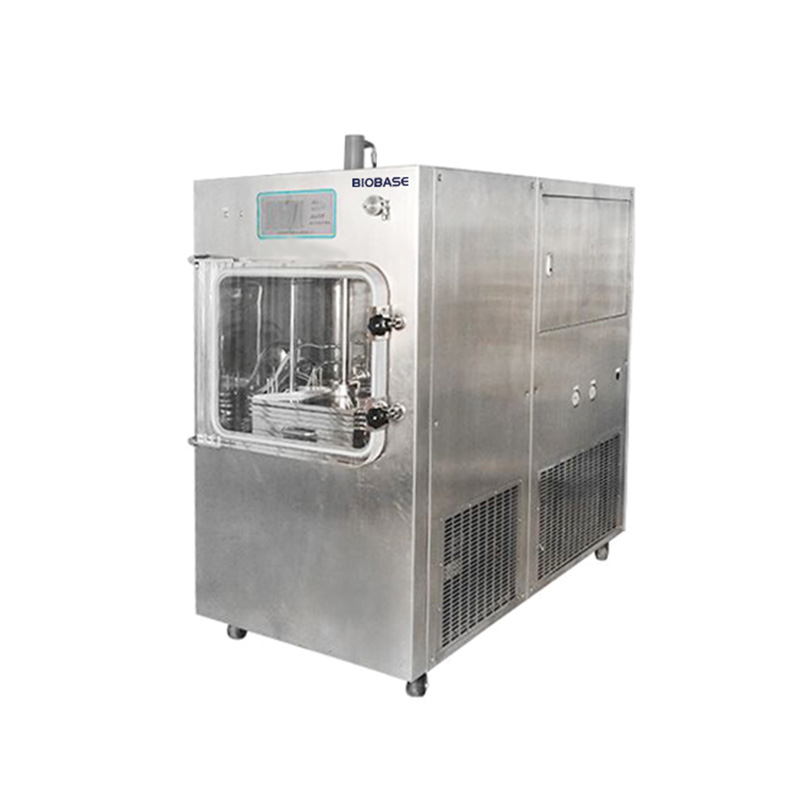

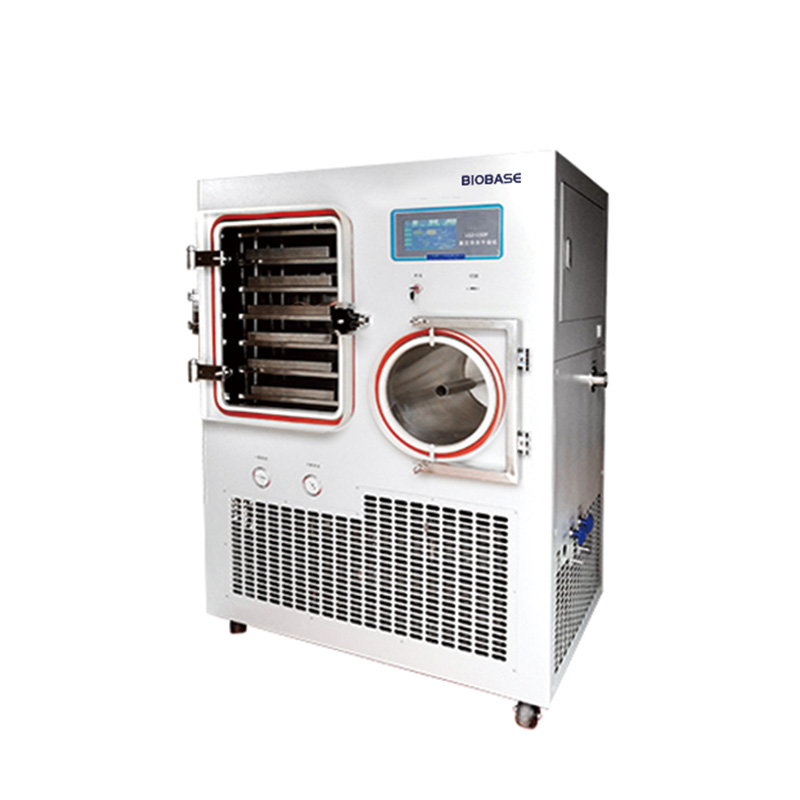

Pilot Freeze Dryer Large Freeze Dryer
BK-FD50S(Standard) / BK-FD50T(Stoppering) / BK-FD100S(Standard) / BK-FD100T(Stoppering)
With advanced control features, precise temperature regulation, and robust construction, this freeze dryer ensures high-quality drying outcomes and efficient process scaling from the lab to production levels.
Key features
- Low-temperature condenser
- Vacuum control
- Benchtop and pilot configurations
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BK-FD50S(Standard) | BK-FD50T(Stoppering) | BK-FD100S(Standard) | BK-FD100T(Stoppering) |
|---|---|---|---|---|
| Freeze Drying Area | 0.7m² | 0.5m² | 1.03m² | 1.15m² |
| Shelf Temperature | ||||
| Cold Trap Temperature | ||||
| Vacuum Degree | ||||
| Water Capture Capacity | ≥10 kg | ≥10 kg | ≥15 kg | ≥15 kg |
| Cold Trap Volume | / | 70 L | 70 L | 70 L |
| Cold Trap Size(Diameter*H) | / | Φ400 × 560 mm | Φ400 × 560 mm | Φ400 × 560 mm |
| Drying Chamber Size(W*D*H) | 410 × 510 × 590 mm | 620 × 510 × 580 mm | 410 × 580 × 520 mm | 700 × 590 × 760 mm |
| Shelf&Tray Size(W*D*H) | Shelf: 480 × 360 × 18 mm · Tray: 475 × 355 × 25 mm | Shelf: 410 × 410 × 18 mm · Tray: 405 × 405 × 25 mm | Shelf: 480 × 360 × 18 mm · Tray: 475 × 355 × 25 mm | Shelf: 480 × 600 × 18 mm · Tray: 475 × 595 × 25 mm |
| Qty. Of Shelf&Tray | Shelf: 4+1; Tray: 4 | Shelf: 3+1; Tray: 3 | Shelf: 6+1; Tray: 6 | Shelf: 4+1; Tray: 4 |
| Sample Loading Capacity(Liquid) | 7 L | 5 L | 10 L | 11 L |
| Height Between Trays | 50 mm/70 mm(Optional) | 100 mm | 70 mm | 100 mm |
| Tray Temperature Difference | ||||
| Refrigerant | ||||
| Condenser Cooling Mode | ||||
| Defrost Mode | Natural defrosting(optional electric defrosting) | Electric defrosting | Electric defrosting | Electric defrosting |
| Stoppering Mode | / | Automatic | / | Automatic |
| Total Qty. of Vial | ||||
| Total Qty. of Vial (2) | ||||
| Total Qty. of Vial (3) | ||||
| Vacuum Pump | 8 L/S(29m³/h) | 8 L/S(29m³/h) | 15 L/S(54m³/h) | 15 L/S(54m³/h) |
| Electric Defrosting Consumption | / | 1000 W | 1500 W | 1500 W |
| Silicone Oil Heating Rods Consumption | 1000 W | 1000 W | 1600 W | 1600 W |
| Hydraulic Pressure Station Consumption | / | 1000 W | / | 1500 W |
| Total Consumption | 5.5KW | 6.5KW | 6.5KW | 7.5KW |
| Power Supply | ||||
| Main Body Weight | 600 kg | 800 kg | 700 kg | 1000 kg |
| External Size(W*D*H)mm | 1008 × 823 × 1420 | 1405 × 911 × 1983 | 1190 × 876 × 1727 | 1823 × 1144 × 2104 |
| Packing Size(W*D*H)mm | ||||
| Gross Weight — Vacuum Pump | 790 × 330 × 445 mm(73 kg) | 830 × 370 × 600 mm(88 kg) | 785 × 455 × 300 mm(95 kg) | 800 × 500 × 500 mm(70 kg) |
