Laboratory analysis

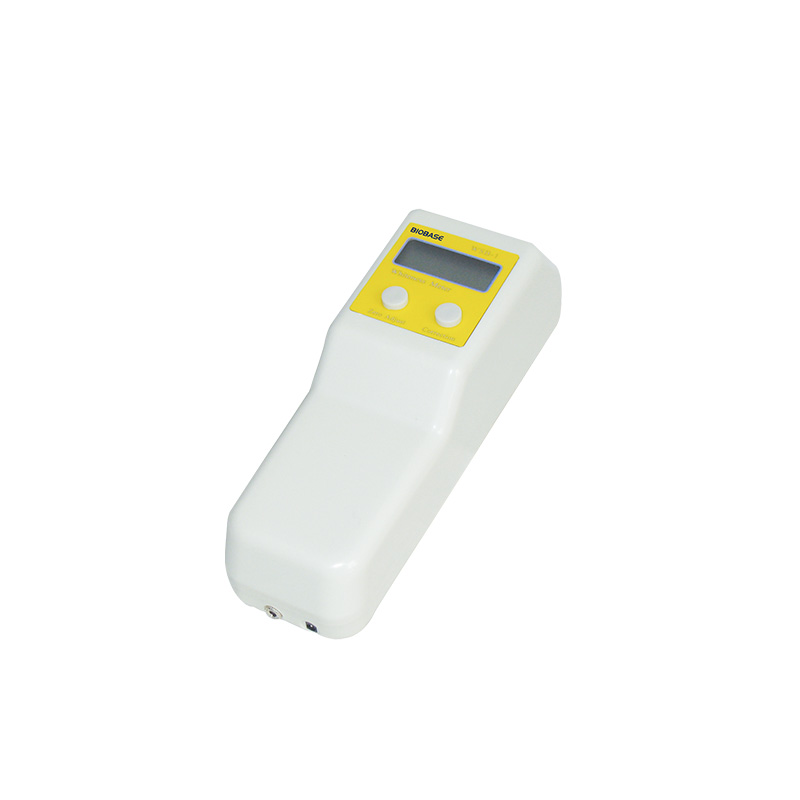

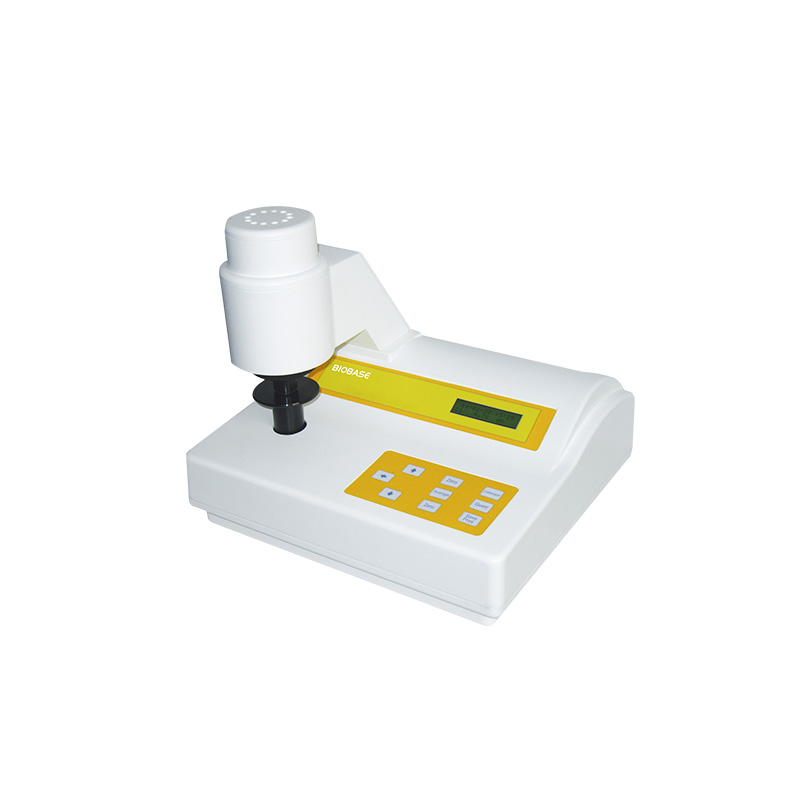

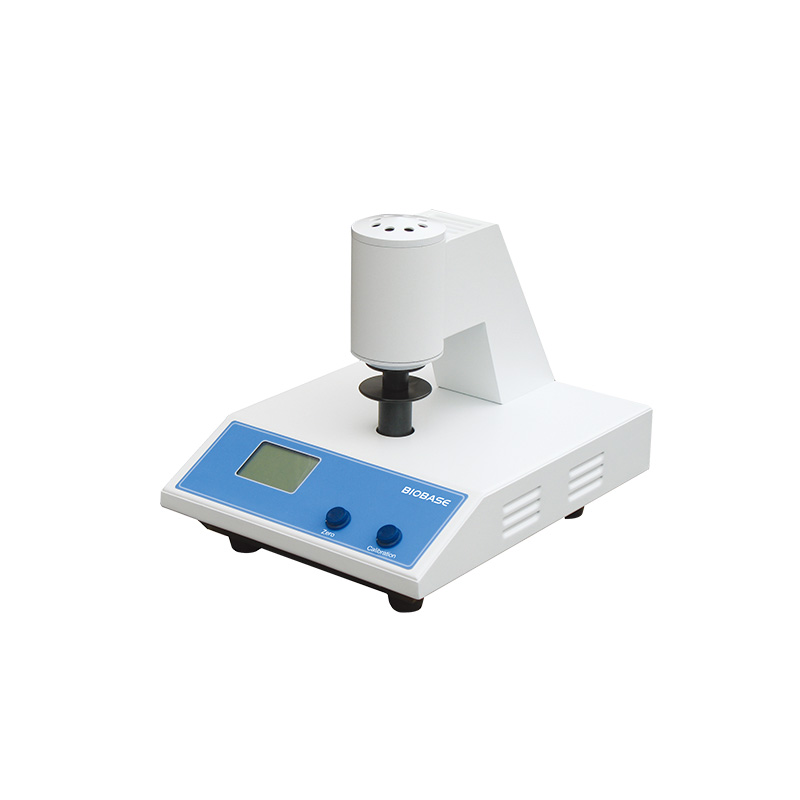

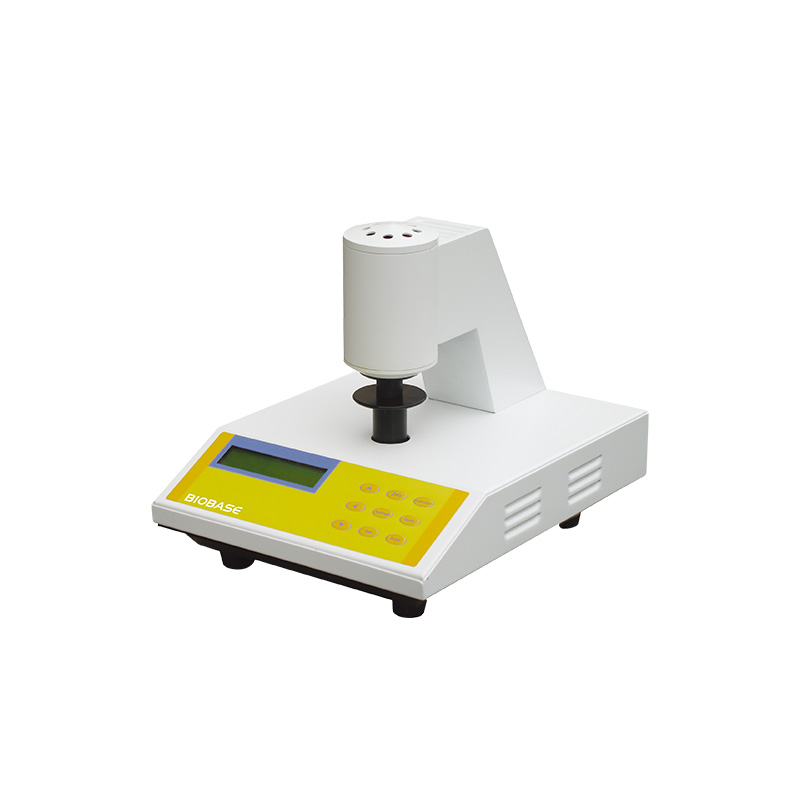

Whiteness Meter
BK-WM1 / BK-WM2 / BK-WM2A / BK-WM3 / BK-WM3A
Whiteness meter with the digital display is mainly applicable for the measurement of the whiteness degree on the surface of the object or the powder in the white color and the color close to white. The whiteness degree can be accurately educed that is consistent with the visual degree.
Key features
- Digital measurement
- Method matched to the parameter
- Repeatable results and data capture
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BK-WM1 | BK-WM2 | BK-WM2A | BK-WM3 | BK-WM3A |
|---|---|---|---|---|---|
| Measuring Range | 0–199 | 0–199 | 0–120 | 0–120 | 0–120 |
| Measuring Condition | 45/0 | 45/0 | 45/0 | 0/d | d/0 |
| Illuminant | D65 | / | / | / | / |
| Display | |||||
| Whiteness Mean | |||||
| Minimum Readout | 0.1 | 0.1 | 0.01 | 0.01 | 0.01 |
| Calibrate | Φ15 | Φ30 | Φ30 | Φ30 | Φ30 |
| Zero Drift | |||||
| Indication Error | ≤±2.5 | ≤±1 | ≤±1 | ≤±1 | ≤±1 |
| Repeatability | |||||
| Power Supply | AC220V, 50/60 Hz; DC 7.5 V, 0.2 A(1.5 V AA alkaline dry battery*5), power supply adapter | AC220V, 50/60 Hz; 110 V, 50/60 Hz | AC220V, 50/60 Hz; 110 V, 50/60 Hz | AC220V, 50/60 Hz; 110 V, 50/60 Hz | AC220V, 50/60 Hz; 110 V, 50/60 Hz |
| External Size(W*D*H) | 235 × 75 × 65 mm | 325 × 265 × 280 mm | 325 × 265 × 280 mm | 310 × 280 × 280 mm | 310 × 280 × 280 mm |
| Package Size(W*D*H) | 370 × 285 × 175 mm | 400 × 330 × 345 mm | 400 × 330 × 345 mm | 370 × 355 × 380 mm | 370 × 355 × 380 mm |
| Net Weight | 0.8 kg | 4 kg | 4.56 kg | 3.1 kg | 3.1 kg |
| Gross Weight | 1.8 kg | 5 kg | 5.56 kg | 4.1 kg | 4.1 kg |
