Laboratory analysis

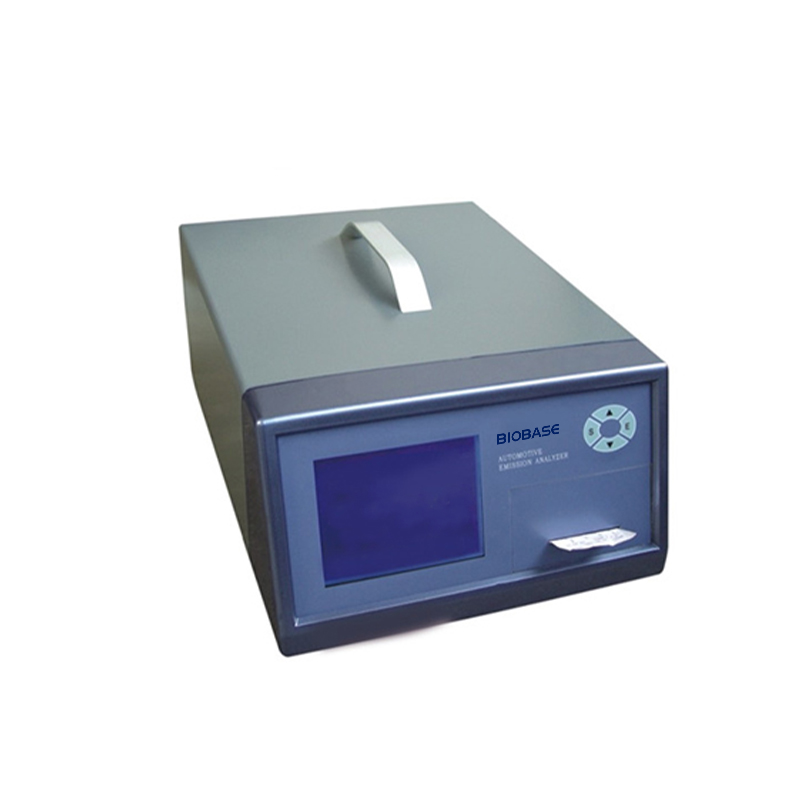

Automobile Exhaust Analyzer

BK-EA500

Applications: Used to measure vehicle emissions of gas concentration.

Key features

  • Digital measurement
  • Method matched to the parameter
  • Repeatable results and data capture
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-EA500
Measurement range
HC:0–10000 × 10–6 (ppm) vol · C0:0–10 × 10–2(%)vol CO2:0–20 × 10–2(%)vol · O2:~25 × 10・2(%)vol NOx:0–5000 × 10・6 (ppm) vol λ:0.50–3.00 COcor:0–10 × 10–2(%)vol
Speed speed
0–9990 rpm
Oil temperature
0–150 °C
The value error
HC ± 12 × 10–6 (PPM) VOL (absolute error) or ± 5 %(relative error) CO ± 0.06 × 10–2 (%) VOL (absolute error) or ± 5 %(relative error) CO2 ± 0.5 × 10–2 (%) VOL (absolute error) or ± 5 %(relative error) 02 ± 0.1 × 10–2 (%) VOL (absolute error) or ± 5 %(relative error) Nox ± 25 × 10–6 (PPM) VOL (absolute error) or ± 4 %(relative error)
Repeatability error
<±2 %
Stability
Torque drift < ± 3 %, zeroing
Resolution
HC: 1 × 10–6 (ppm) vol CO: 0.01 × 10–2(%)voI CO2: 0.1xiQ-2(%)vol O2: 0.01 × 10–2(%)vol NOx:1><10–6 (ppm) vol λ:0.01
The response time
95 %response is not more than 10 seconds
Preheating time
8 min (preheating 3 min emergency test)
The output method
Can be displayed on the screen. The maximum value, average, minimum value and license plate number of the gas concentration can be printed. Date, speed, oil temperature and λ, COCOR value, can be connected to the computer network
Environmental conditions
Temperature -5–50 °C, relative humidity <90 %
Power supply
AC100–240 V 50/60 Hz or DC 12 V (select the power inverter). Consumption power 40VA
Dimensions
420 mm (long) x 310 mm (width) x 170 mm (height)
Weight
About 9 kg

Technical data supplied by BIOBASE.
