Laboratory analysis

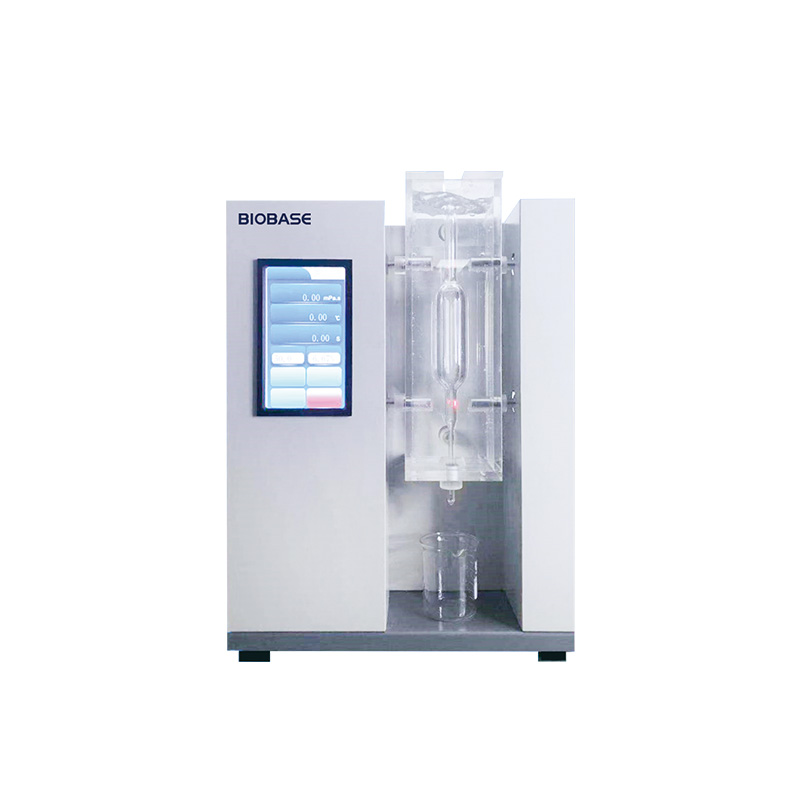

Viscometer

BDV-5P

It is suitable for the viscosity and property testing of edible gelatin, medicinal gelatin, industrial gelatin, bone gelatin and other gelatin, as well as the viscosity detection of agar, protein powder and other gelatin liquids.

Key features

  • Digital measurement
  • Method matched to the parameter
  • Repeatable results and data capture
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBDV-5P
Measured Range (mPa·s)
0–99.99
Viscocity Display Resolution(mPa·s)
0.01
Precision(mPa·s)
±0.02
Time Range
0–5000 s
Time Precision
≦0.01 s
Time Display Resolution
Millisecond
Water Bath Temp. Range
R.T.~70 °C
Water Bath Temp. Setting Resolution
0.1 °C
Water Bath Temp. Precision
±0.1 °C
Water Bath Temp. Display Resolution
0.01 °C
Viscometer Volume
100 mL
Viscometer Volume Error
±0.5 m
Longitudinal Central Moment
152 mm ± 0.5 mm
Power Supply
AC220V±10 %, 50 Hz
Power
500 W
Package Size
465 × 370 × 610 mm
Gross Weight
16 kg

Technical data supplied by BIOBASE.
