Laboratory analysis

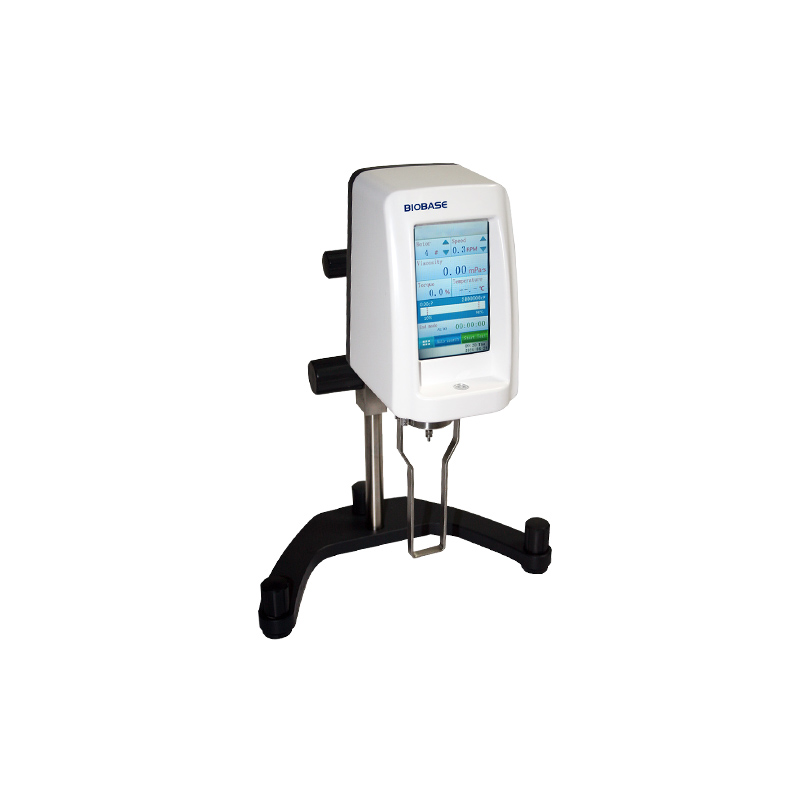

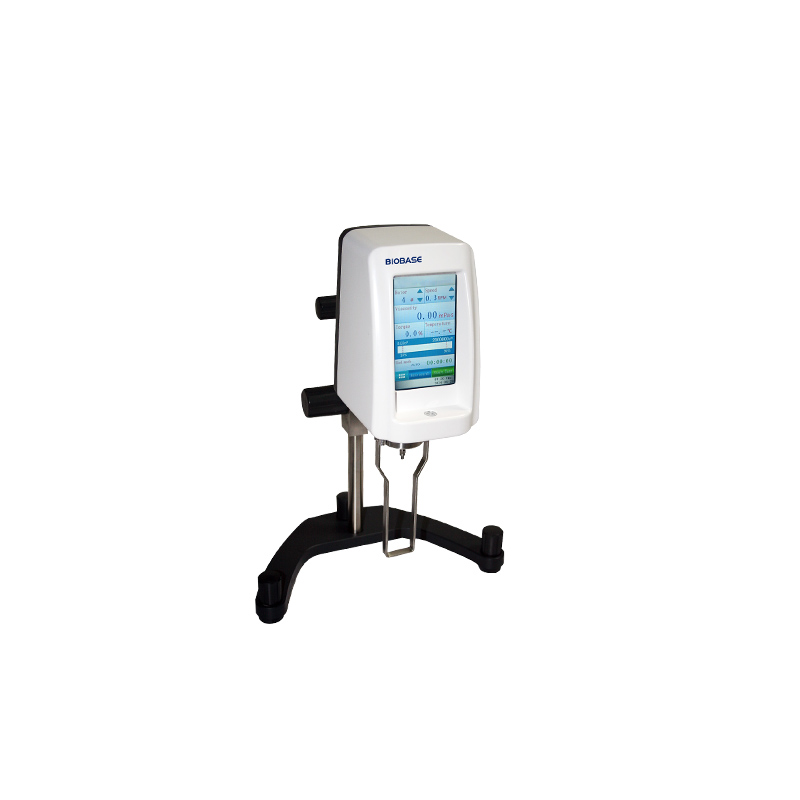

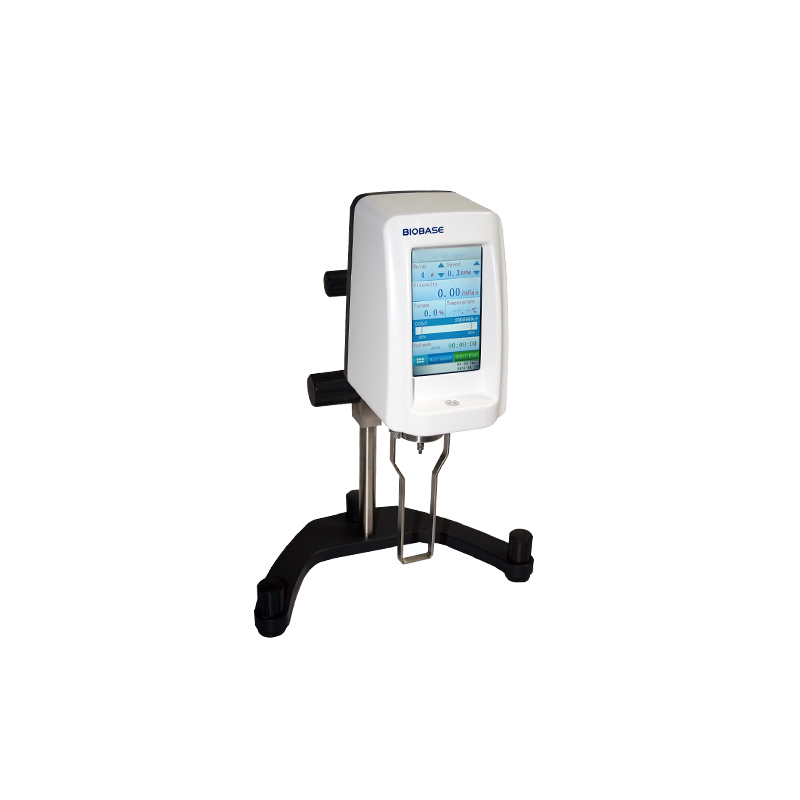

Touch Screen Digital Display Viscometer

BDV-5SC / BDV-8SC / BDV-9SC

This instrument can be widely used to measure the viscosity of oils, paints, food, coatings, paper making, cosmetics, chemicals, capsule adhesives and other fluids.

Key features

  • Digital measurement
  • Method matched to the parameter
  • Repeatable results and data capture
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Included accessories

  • Temperature sensor interface
  • Computer USB interface
  • RS232 interface

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBDV-5SCBDV-8SCBDV-9SC
Measured Range1–1 × 10^5mpa.s1–2 × 10^6mpa.s1–6 × 10^6mpa.s
Measurement Accuracy
Common to all models±2 %(FS)(Newtonian liquid)
Repetitive Error
Common to all models1 %(FS)(Newtonian liquid)
Display Accuracy
Common to all models0.01mpa.s
Single Measurement Automatic
Common to all modelsWhen the measurement result is stable, the rotor stops automatically
Rotor Specification
Common to all modelsStandard: 1#, 2#, 3#, 4# Optional: 0#
Rotor Speed(rpm)6, 12, 30, 600.3, 0.6, 1.5, 3, 6, 12, 30, 600.1, 0.3, 0.6, 1.5, 3, 6, 12, 30, 60
Standard Accessory
Common to all modelsTemperature sensor interface, computer USB interface, RS232 interface
Work Environment
Common to all modelsTemperature: 5–35 °C Relative Humidity: ≤80 %
Power Supply
Common to all modelsAC110–240 V, 50/60 Hz, DC 12 V
Package Size(W*D*H)
Common to all models200 × 440 × 480 mm
Net Weight
Common to all models6.3 kg
Gross Weight
Common to all models10.6 kg

Technical data supplied by BIOBASE.
