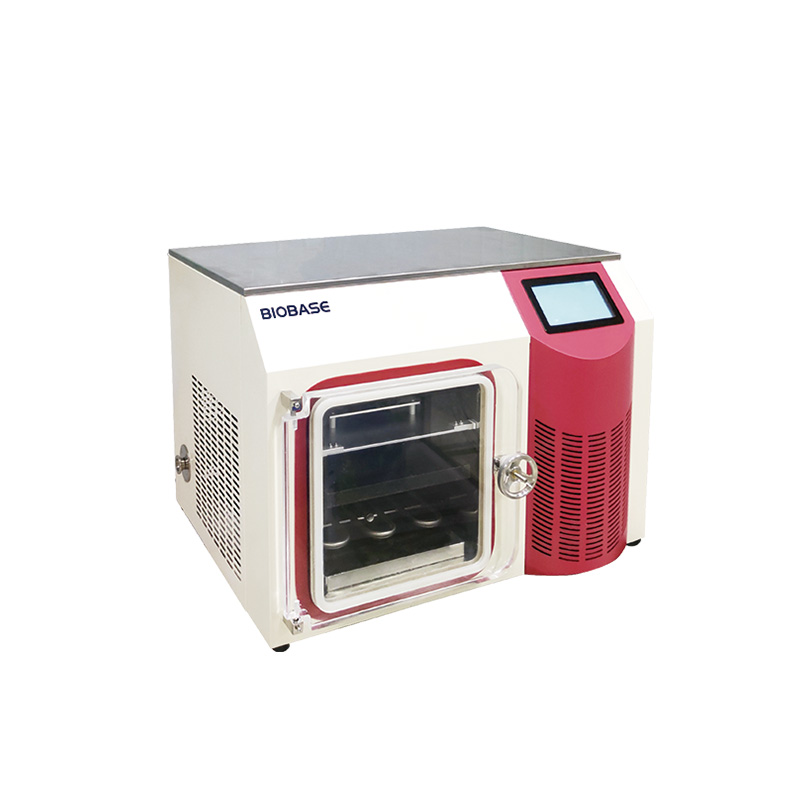

Tabletop Pilot Freeze Dryer

BK-FD10ES / BK-FD10EP / BK-FD10ET / BK-FD10EPT

The Tabletop Pilot Freeze Dryer is a compact, high-performance solution designed for small-scale freeze-drying applications. Ideal for research and development, as well as small batch production, this versatile freeze dryer offers precise control and reliability in a convenient tabletop design.

Key features

Low-temperature condenser
Vacuum control
Benchtop and pilot configurations

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-FD10ES	BK-FD10EP	BK-FD10ET	BK-FD10EPT

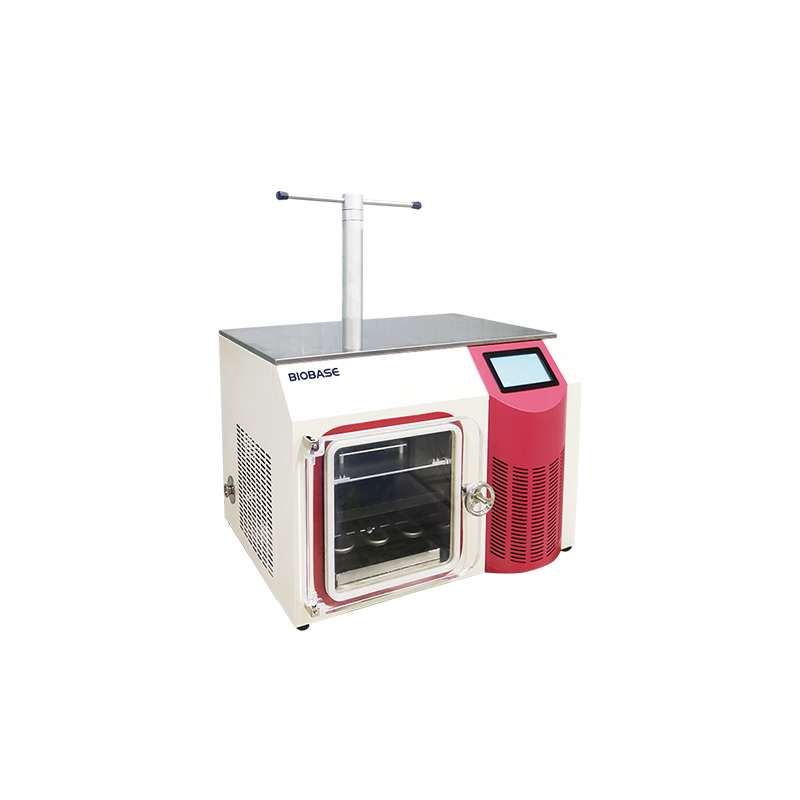

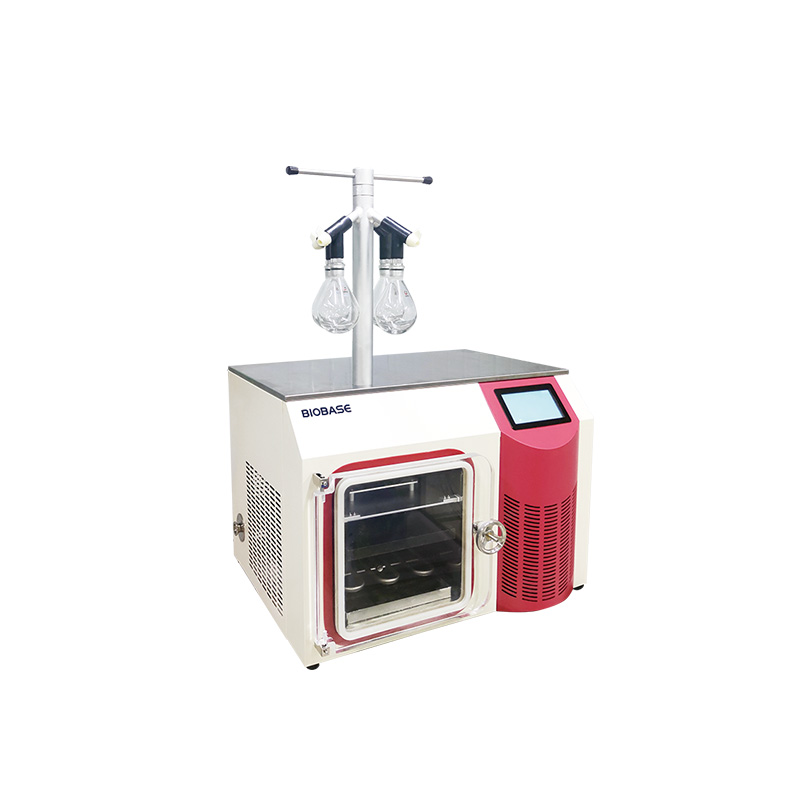

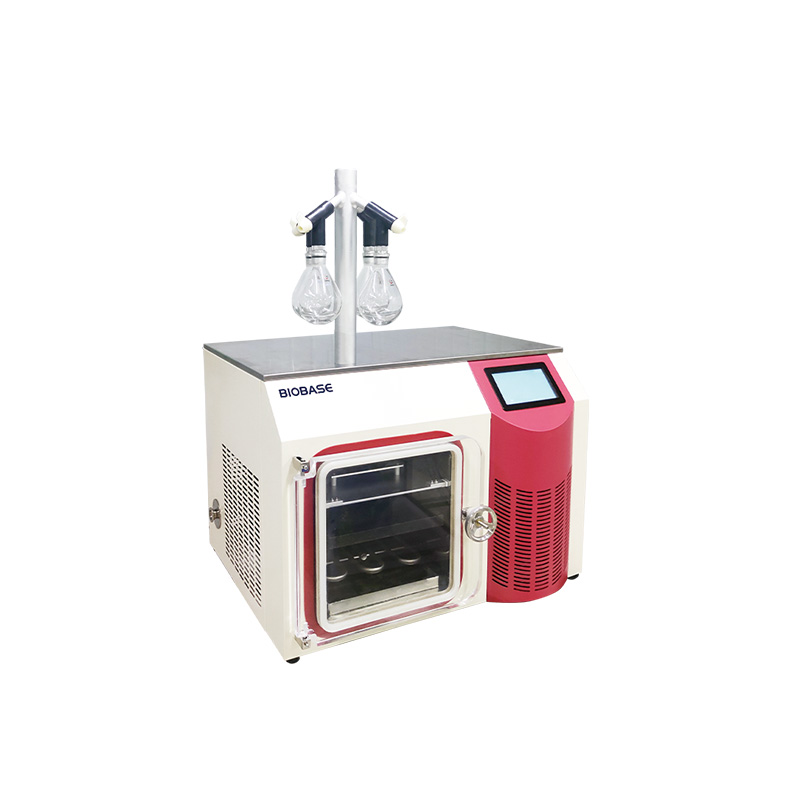

Type	Standard chamber	4 port manifold	Stoppering chamber	Stopping chamber with 4 port manifold
Cold Trap Temp.	Common to all models-88 °C
Shelf Temp.	Common to all models-60~+70 °C
Temp. Uniformity	Common to all models±1 °C
Vacuum Degree	Common to all models≤0.1 Pa
Cold Trap Volume	Common to all models11 L
Freezer Drying Area	Common to all models0.1m2
Condensing Capacity	Common to all models3 kg/h
Qty. Of Shelf	Common to all models1
Drying Chamber Size	Common to all models40 L
Material Loading Capacity	Common to all models3000 mL
Total Qty. of Vial	Common to all modelsΦ22 mm · 216 · 216 · 216 · 216
Total Qty. of Vial (2)	Common to all modelsΦ16 mm · 400 · 400 · 400 · 400
Total Qty. of Vial (3)	Common to all modelsΦ12 mm · 726 · 726 · 726 · 726
Manifold	/	4 pieces	/	4 pieces
USB Interface	Common to all modelsYes
Drying Chamber(Standard)	Common to all modelsTransparent Acrylic
Vacuum Pump	Common to all modelsStandard
Control System	Common to all modelsMicroprocessor, touch screen
Power Supply	Common to all models220/110 V, 50/60 Hz
Power	Common to all models2.3 kW
Cold Trap Size(Φ*Hmm)	Common to all models215 × 190 mm
Shelf Size(WDH)	270 × 400 × 150 mm	270 × 400 × 150 mm	270 × 400 × 120 mm	270 × 400 × 120 mm
External Size(WDH)	820 × 695 × 600/995 mm	820 × 695 × 600/995 mm	820 × 695 × 875/1075 mm	820 × 695 × 875/1075 mm
Host Package Size(WDH)	Common to all models940 × 840 × 990 mm
Vacuum Pump Package Size(WDH)	Common to all models600 × 230 × 300 mm
Gross Weight	180 kg	210 kg	210 kg	220 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
