Freeze drying

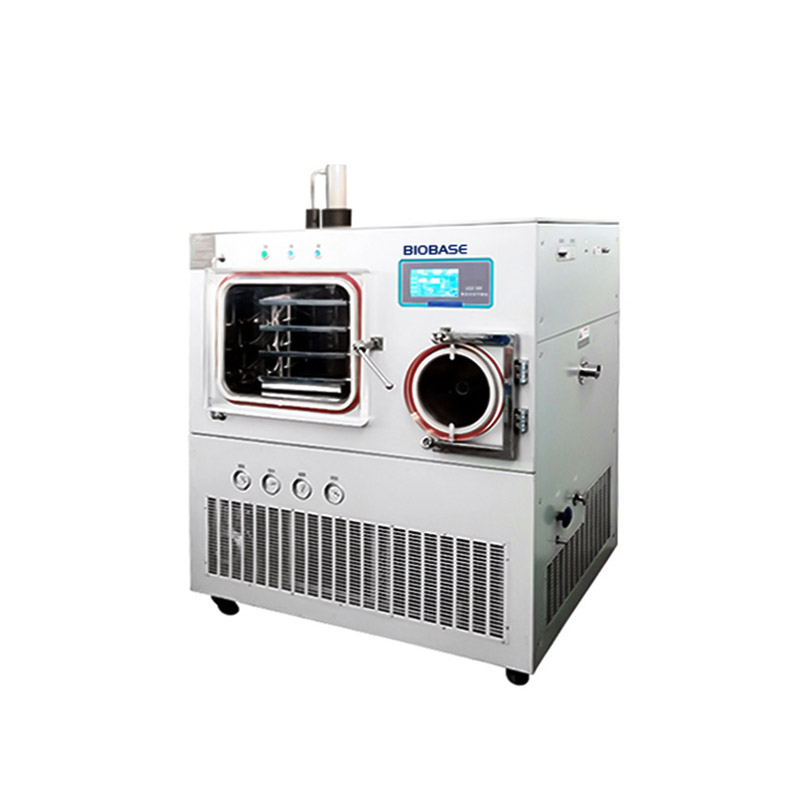

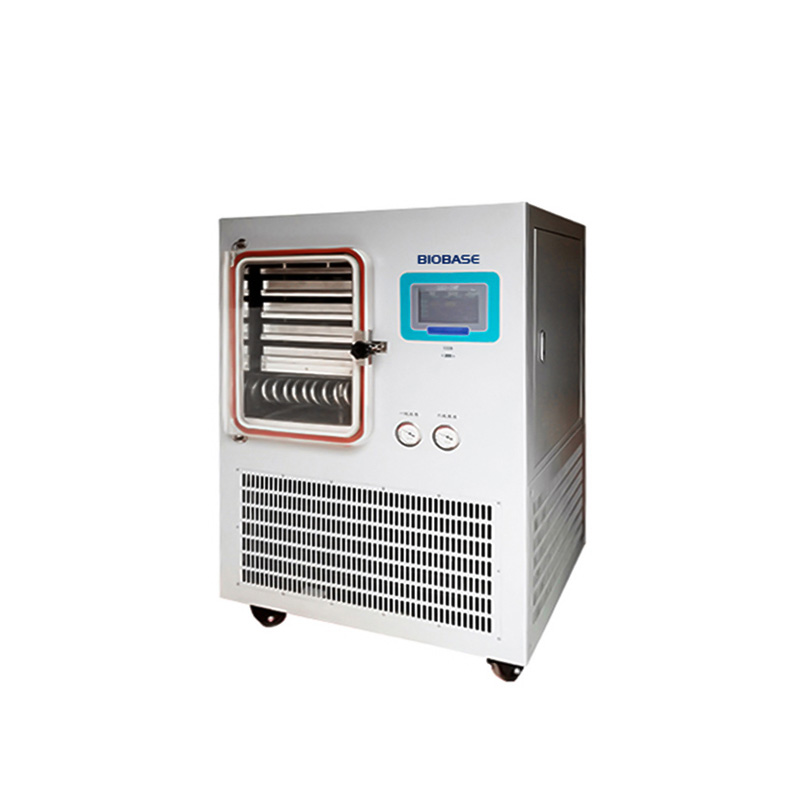

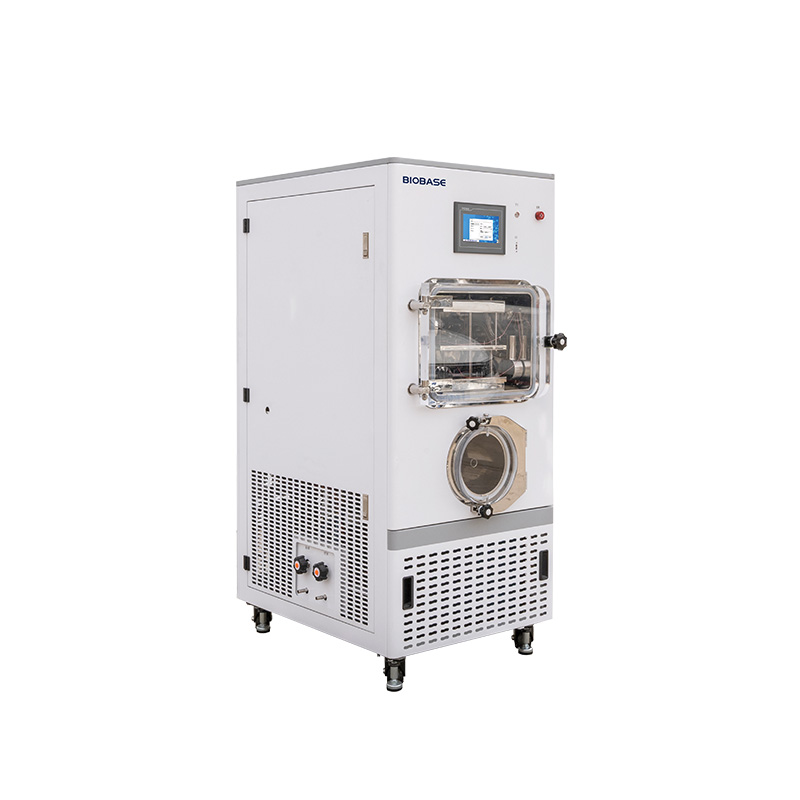

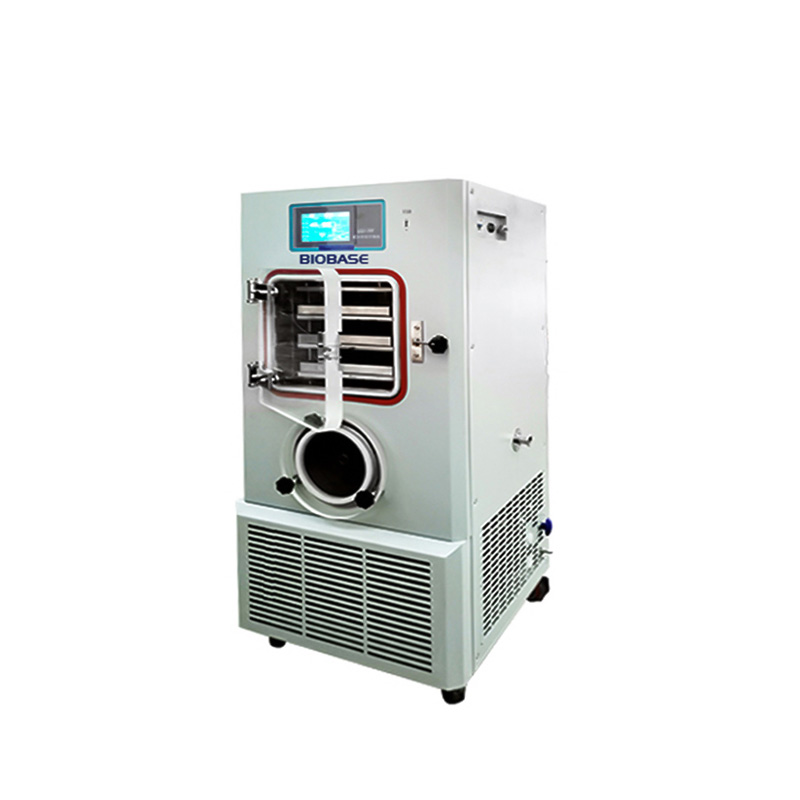

Pilot Freeze Dryer Large Freeze Dryer ,
BK-FD20S(Standard) / BK-FD20T(Stoppering) / BK-FD30S(Standard) / BK-FD30T(Stoppering)
With advanced control features, precise temperature regulation, and robust construction, this freeze dryer ensures high-quality drying outcomes and efficient process scaling from the lab to production levels.
Key features
- Low-temperature condenser
- Vacuum control
- Benchtop and pilot configurations
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BK-FD20S(Standard) | BK-FD20T(Stoppering) | BK-FD30S(Standard) | BK-FD30T(Stoppering) |
|---|---|---|---|---|
| Freeze Drying Area | 0.3m² | 0.2m² | 0.4m² | 0.3m² |
| Shelf Temperature | ||||
| Cold Trap Temperature | ||||
| Vacuum Degree | ||||
| Water Capture Capacity | ≥6 | ≥6 | ≥8 | ≥8 |
| Cold Trap Volume | 14 L | 14 L | / | 26 L |
| Cold Trap Size(Diameter*H) | Φ200 × 460 mm | Φ200 × 460 mm | / | Φ320 × 520 mm |
| Drying Chamber Size(W*D*H) | 330 × 325 × 470 mm | 330 × 325 × 470 mm | 340 × 500 × 420 mm | 480 × 380 × 540 mm |
| Shelf&Tray Size(W*D*H) | Shelf: 400 × 270 × 18 mm · Tray: 395 × 265 × 25 mm | Shelf: 400 × 270 × 18 mm · Tray: 395 × 265 × 25 mm | Shelf: 300 × 340 × 18 mm · Tray: 295 × 335 × 25 mm | Shelf: 300 × 340 × 18 mm · Tray: 295 × 335 × 25 mm |
| Qty. of Shelf&Tray | Shelf: 3+1; Tray: 3 | Shelf: 2+1; Tray: 2 | Shelf: 4+1; Tray: 4 | Shelf: 3+1; Tray: 3 |
| Sample Loading Capacity(Liquid) | 3 L | 2 L | 4 L | 3 L |
| Height Between Trays | 70 mm | 100 mm | 50 mm | 70 mm |
| Tray Temperature Difference | ||||
| Refrigerant | ||||
| Condenser Cooling Mode | ||||
| Defrost Mode | Electric defrosting | Electric defrosting | Natural defrosting(optional electric defrosting) | Electric defrosting |
| Stoppering Mode | / | Automatic | / | Automatic |
| Total Qty. of Vial | ||||
| Total Qty. of Vial (2) | ||||
| Total Qty. of Vial (3) | ||||
| Vacuum Pump | 4 L/S(14.4m³/h) | 4 L/S(14.4m³/h) | 6 L/S(22m³/h) | 6 L/S(22m³/h) |
| Electric Defrosting Consumption | 800 W | 800 W | / | 1000 W |
| Silicone Oil Heating Rods Consumption | 800 W | 800 W | 1000 W | 1000 W |
| Hydraulic Pressure Station Consumption | / | 500 W | / | 1000 W |
| Total Consumption | 3KW | 4KW | 4.5KW | 5.5KW |
| Power Supply | ||||
| Main Body Weight | 300 kg | 300 kg | 400 kg | 400 kg |
| External Size(W*D*H) | 1033 × 781 × 1580 mm | 1033 × 781 × 1580 mm | 928 × 825 × 1366 mm | 1272 × 853 × 1679 mm |
| Packing Size(W*D*H)/Gross Weight | ||||
| Packing Size(W*D*H)/Gross Weight (2) | ||||
