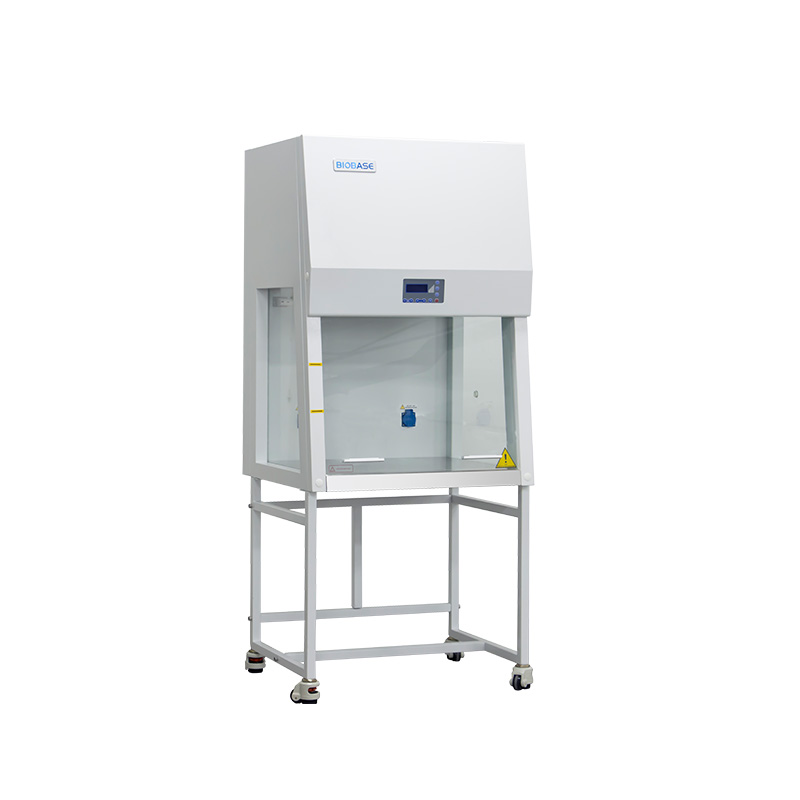

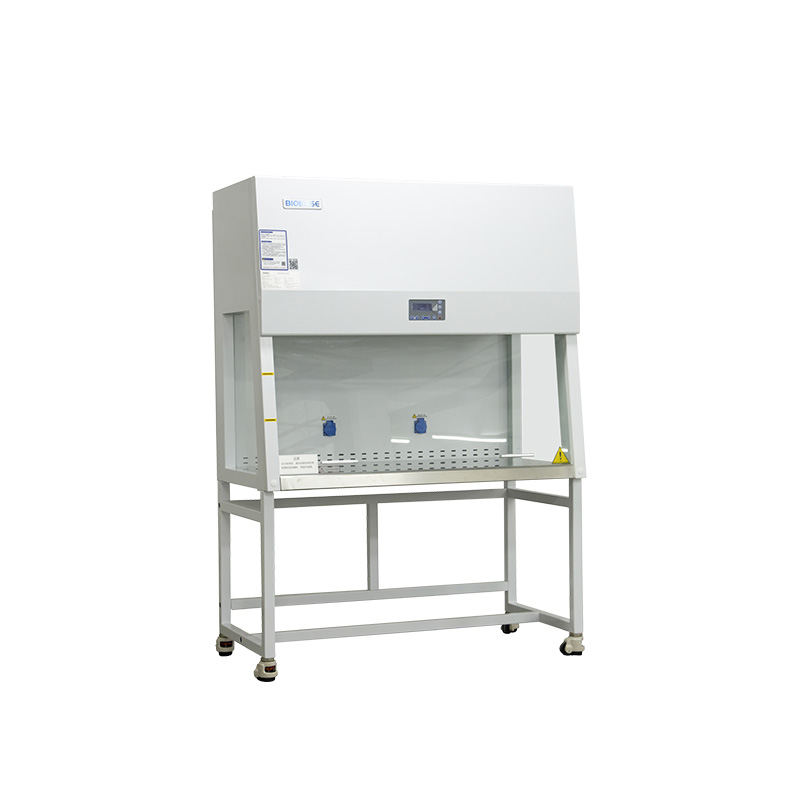

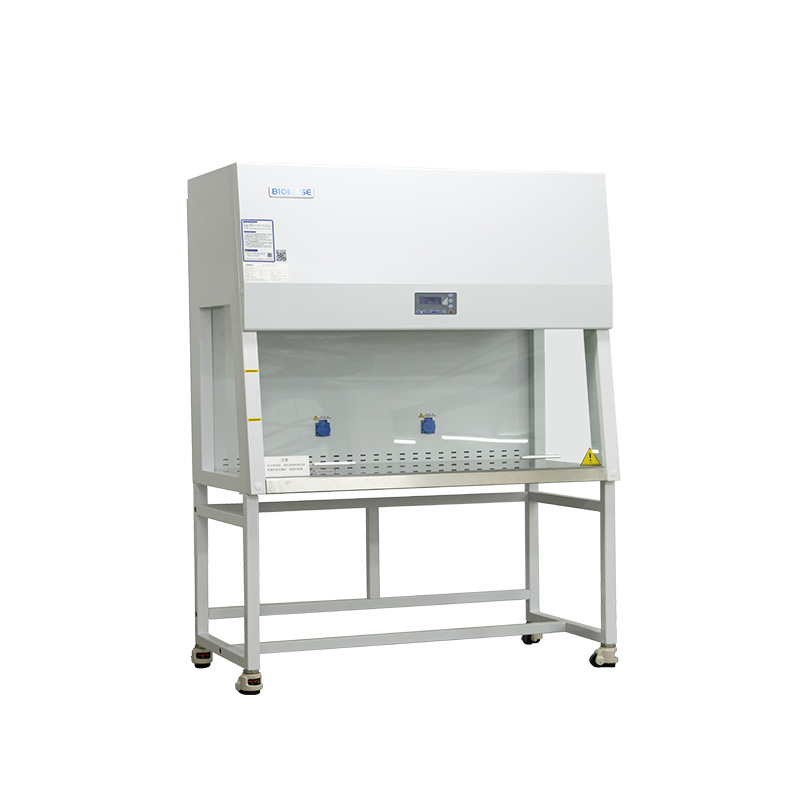

Vertical Laminar Flow Cabinet

BBS-V800-X / BBS-V1300-X / BBS-V1800-X

The Vertical Laminar Flow Cabinet is a high-performance clean air workstation designed to protect samples from contamination by providing a sterile environment. This cabinet directs HEPA-filtered air in a vertical unidirectional flow, ensuring that the working area remains free of airborne particles.

Key features

HEPA-filtered laminar airflow
Sample protection
Vertical or horizontal configuration

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Base stand
LED lamp
UV lamp
Waterproof socket*2

Optional accessories

Camera
Scanner
Tablet computer

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BBS-V800-X	BBS-V1300-X	BBS-V1800-X
External Size(WDH)	800 × 665 × 1850 mm	1300 × 710 × 1850 mm	1800 × 710 × 1850 mm
Internal Size(WDH)	700 × 575 × 625 mm	1200 × 575 × 625 mm	1700 × 575 × 625 mm
Work Surface Height	Common to all models750 mm
Max Opening	Common to all models400 mm
Display	Common to all modelsLCD display
Airflow Velocity	Common to all models0.3–0.45m/s
Material	Common to all modelsWorking Area: 304 stainless steel Main Body: 1.2 mm cold-rolled steel with anti-bacteria powder coating Front Window: 5 mm toughened glass, anti-UV
Pre-Filter	Common to all modelsPolyester fiber
HEPA Filter	Common to all modelsOne, 99.995 % efficiency at 0.3 µm
Noise	Common to all models≤65dB(A)
Illumination	Common to all models≥300lx
Waterproof Sockets	Common to all modelsTwo sockets, Max. Power: 500 W
Power Supply	Common to all modelsAC220V±10 %, 50/60 Hz(Standard); 110 V±10 %, 60 Hz(Optional)
Consumption	650 W	750 W	900 W
LED Lamp	*8 W1**	*12 W1**	*16 W1**
UV Lamp	*20 W1**	*30 W1**	*40 W1**
Package Size(WDH)	940 × 980 × 1350 mm	1440 × 980 × 1350 mm	1940 × 980 × 1350 mm
Gross Weight	140 kg	220 kg	280 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
