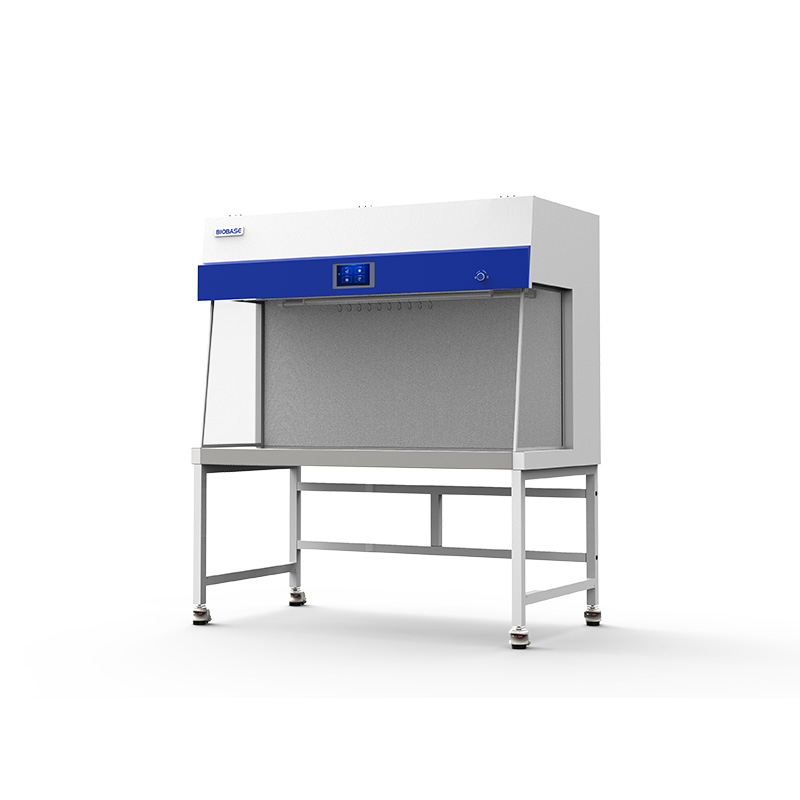

Horizontal laminar flow cabinet

BKCB-H1500 / BKCB-H1800

Laminar flow cabinet is a kind of air purification equipment that provides a local dust-free and sterile working environment. It is widely used in biological laboratory, medical and health care and other related industries.

Key features

HEPA-filtered laminar airflow
Sample protection
Vertical or horizontal configuration

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

LED lamp*2
UV lamp*2
Base stand
Waterproof socket*2
Temperature and humidity sensor

Optional accessories

Armrest*2
Electric height adjustable base stand

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKCB-H1500	BKCB-H1800
Flow Mode	Common to all modelsHorizontal flow
Number of Users	1–2	1–3
Rated Power	1250VA(including operating area socket load 500VA)	2000VA(including operating area socket load 500VA)
Power Supply	Common to all models220 V±10 %, 50 Hz(Standard); 110±10 %V, 60 Hz(Optional)
Airflow Velocity	Common to all models0.2m/s~0.45m/s
Noise	Common to all models≤65dB(A)
Lighting	Common to all models≥300lx
Vibration	Common to all models≤5 µm(rms)
Safety	Common to all modelsColonies Number≤0.5CFU/30 min
Clean Grade	Common to all modelsISO level 5(100 levels)
Filtration Efficiency	Common to all modelsHEPA(H14) high efficiency filter, filtration efficiency for 0.3 µm particle≥99.995 %
Work Surface Height	Common to all models750 mm(Customized)
Standard Accessory	Common to all modelsLED lamp2, UV lamp2, Base stand, Waterproof socket*2, Temperature and humidity sensor
Optional Accessory	Common to all modelsArmrest*2, electric height adjustable base stand
Net Weight	220 kg	260 kg
Gross Weight	299 kg	355 kg
External Size(WDH)	1500 × 800 × 1730 mm	1800 × 800 × 1930 mm
Internal Size(WDH)	1400 × 500 × 600 mm	1700 × 500 × 730 mm
Package Size(WDH)	1760 × 1010 × 1340 mm	2060 × 1010 × 1500 mm

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
