Photography and technical data supplied by: BIOBASE · 2 images.

Spectroscopy

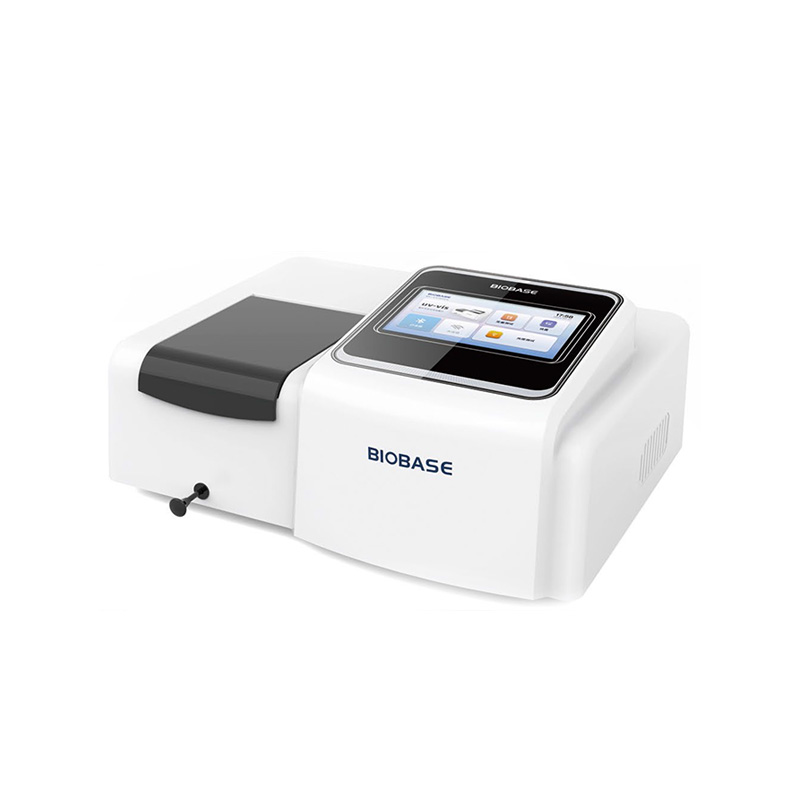

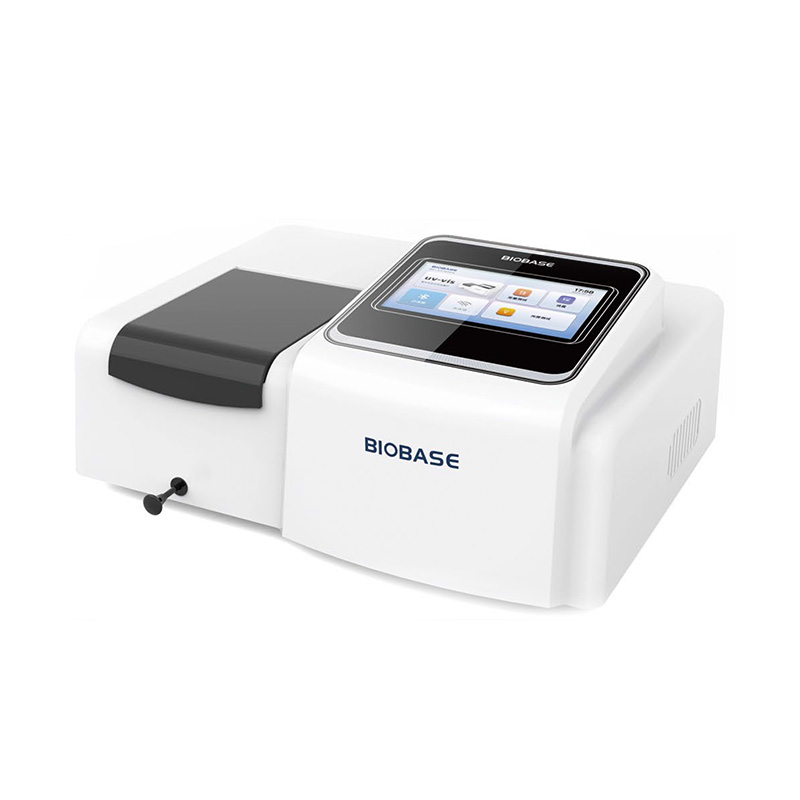

UV/VIS Spectrophotometer

BK-UV1600G / BK-V1600G

Analytical instrument based on molecular absorption of ultraviolet and visible radiation. It is used in environmental monitoring, life sciences, food analysis, organic chemistry and biochemistry; available functions depend on the selected model.

Key features

  • Controlled optical measurement
  • Configurations for different spectral ranges
  • R&D and quality-control applications
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

  • Quartz cuvettes or sample cells
  • Glass cuvettes

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-UV1600GBK-V1600G
Optical System
Common to all modelsSingle beam, grating 1200 L/mm
Wavelength190–1100 nm325–1100 nm
Spectral Bandwidth
Common to all models4 nm
Wavelength Accuracy
Common to all models±1.5 nm
Wavelength Repeatability
Common to all models≤0.2 nm
Photometric Accuracy
Common to all models+0.002Abs(0–0.5Abs), ±0.004 A(0.5–1.0Abs), ±0.4 %T(0–100 %T)
Photometric Repeatability
Common to all models0.001Abs(0–0.5Abs), 0.002Abs(0.5–1.0Abs), <0.2 %T(0–100 %T)
Stray Light
Common to all models≤0.05 %T(220 nm, 360 nm)
Stability
Common to all models±0.001 A/h(500 nm)
Photometric Range
Common to all models-0.301–3.0 A 0–200 %T 0–9999C
Photometric Mode
Common to all modelsA T C E
Wavelength Setting
Common to all modelsAutomatic
Output
Common to all modelsRS232 printer data output, USB-A connection, wireless printing, mobile phone PC connection
Detector
Common to all modelsImported silicon photodiode
Light SourceDeuterium lamp, tungsten lampTungsten lamp
Power Supply
Common to all models100–220 V, 50/60 Hz
External Size
Common to all models466 × 365 × 200 mm
Net Weight
Common to all models11.25 kg
Packing Size
Common to all models590 × 480 × 315 mm
Gross Weight15.4 kg15 kg

Technical data supplied by BIOBASE.
