Spectroscopy

UV/Vis spectrophotometers

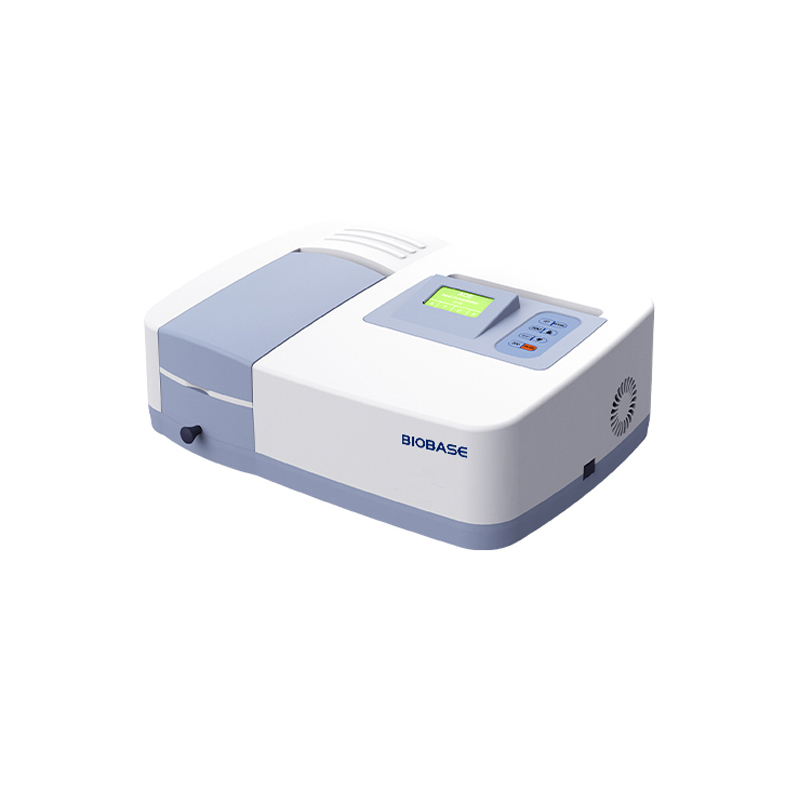

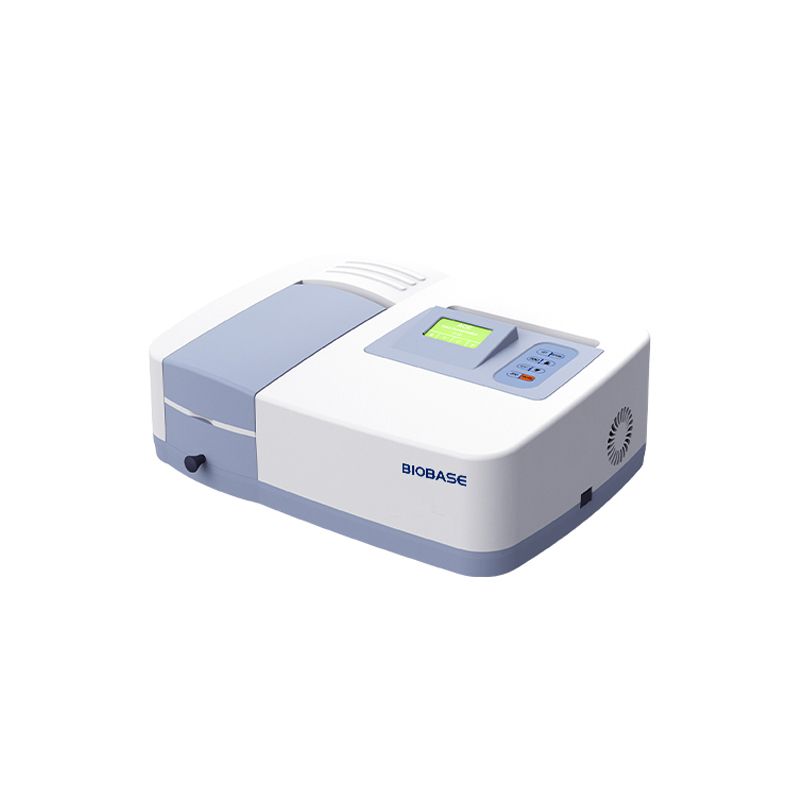

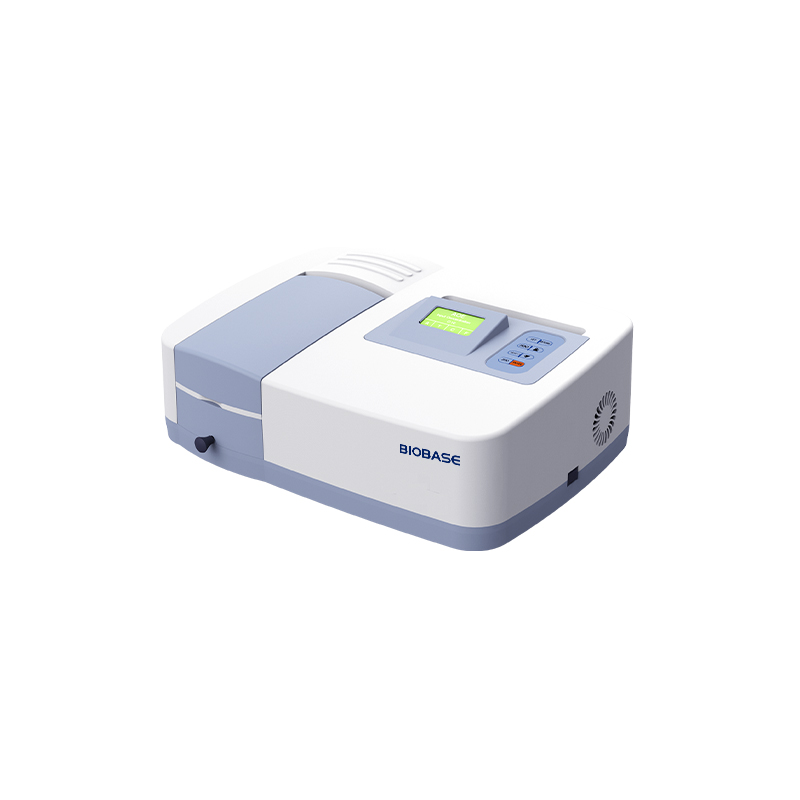

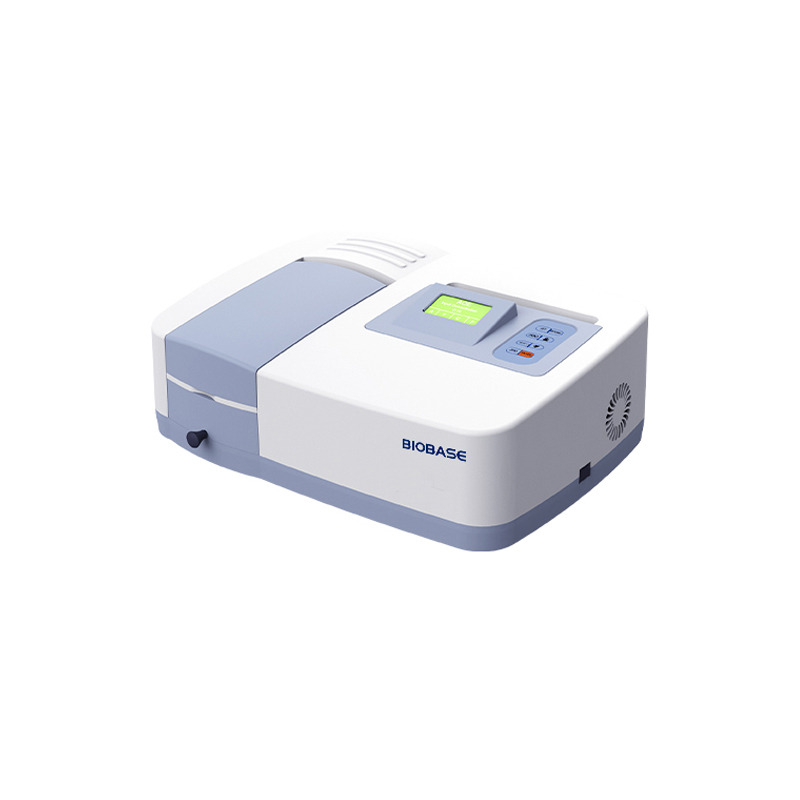

BK-UV1000 / BK-V1000 / BK-UV1200 / BK-V1200

Analytical instrument based on molecular absorption of ultraviolet and visible radiation. It is used in environmental monitoring, life sciences, food analysis, organic chemistry and biochemistry; available functions depend on the selected model.

Key features

  • Controlled optical measurement
  • Configurations for different spectral ranges
  • R&D and quality-control applications
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

  • Quartz cuvettes or sample cells
  • Glass cuvettes
  • Cuvette holders

Optional accessories

  • Microcuvettes and holder
  • Thermostatted cuvette holder
  • Test-tube holder
  • Solid-sample holder
  • Sample holder
  • Deuterium lamp
  • Tungsten lamp
  • Printer
  • Compatible software

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-UV1000BK-V1000BK-UV1200BK-V1200
Optical System
Common to all modelsSingle Beam, Grating 1200 lines/mm
Wavelength Range200–1100 nm325–1100 nm190–1100 nm320–1100 nm
Spectral Bandwidth
Common to all models4 nm
Wavelength Accuracy±1.8 nm±1.8 nm±1.0 nm±1.0 nm
Wavelength Repeatability
Common to all models≤0.5 nm
Photometric Accuracy
Common to all models±0.002 A(0–0.5Abs), ±0.004 A(0.5–1.0Abs), ±0.5 %T(0–100 %T)
Photometric Repeatability
Common to all models0.001Abs(0–0.5Abs), 0.002Abs(0.5–1.0Abs), ≤0.2 %T(0–100 %T)
Stray Light
Common to all models≤0.2 %T@360 nm; 220 nm(UV)
Stability
Common to all models±0.002 A/h@500 nm
Noise
Common to all models±0.001 A
Display
Common to all models128 × 64 Dots LCD
Photometric Mode
Common to all modelsT, A, C, E
Photometric Range
Common to all models0–200 %T, -0.301–3.0 A
Detector
Common to all modelsSilicon Photodiode
Light Source
Common to all modelsDeuterium Lamp, Tungsten Lamp
Input
Common to all modelsMembrane Keypad
Output
Common to all modelsParallel Print, USB 1.0
Power Supply
Common to all modelsAC85–265 V, 50/60 Hz
Standard Accesseries1 cm glass cuvette*4, · 1 cm quartz cuvette*2, · 1 cm quadruple cuvette holder*11 cm glass cuvette*4, · 1 cm quadruple cuvette · holder*11 cm glass cuvette*4, · 1 cm quartz cuvette*2, · 1 cm quadruple cuvette · holder*11 cm glass cuvette*4, · 1 cm quadruple · cuvette holder*1
Package Size(W*D*H)
Common to all models560 × 430 × 320 mm
Gross Weight12 kg11.5 kg12 kg11.5 kg

Technical data supplied by BIOBASE.
