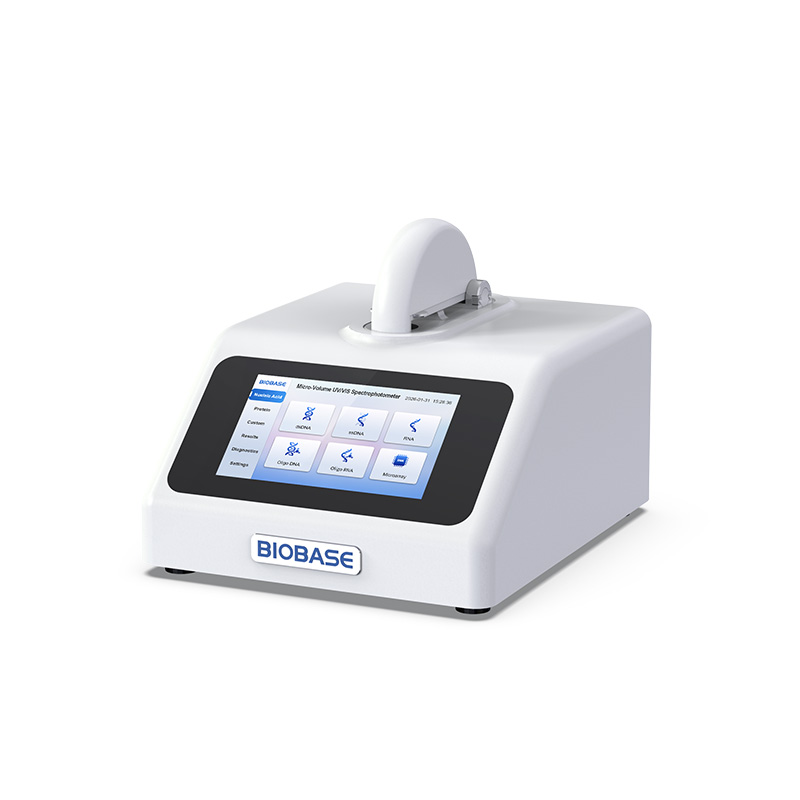

Micro-volume UV/Vis spectrophotometer

Name: Micro-volume UV/Vis spectrophotometer BK-CW1000B
Brand: BIOBASE
SKU: BK-CW1000B

BK-CW1000B

Optical instrumentation for identification and quantification in research and quality control.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Controlled optical measurement
Configurations for different spectral ranges
R&D and quality-control applications

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-CW1000B
Path Length	1.0mm/0.2mm
Sample Volume	0.5~2uL
Light Source	Long-life pulsed xenon lamp
Detector	2048 pixel linear CCD array
Scanning Wavelength Range	190~850nm
Wavelength Accuracy	±1nm
Wavelength Resolution	2nm
Spectral Resolution	≤0.3nm(FWHM, Hg 253.7nm line)
Absorbance Accuracy	2%(Based on 0.76Abs @257nm)
Absorbance Resolution	0.002Abs(@1mm path length)
Absorbance Range	0.02~300Abs(Equivalent to 10mm path length)
Nucleic Acid Measurement Range	dsDNA 2~15000ng/μL
Protein Measurement Range	BSA 0.1~100mg/mL
Detection Time	<5s
Detection Platform	Quartz fiber + high-hardness aluminum
Operating System	Android system
Interface Output	USB, RJ45
Power Supply	AC 100~240V, 50/60Hz
External Size(WDH)	*265320235mm*
Package Size(WDH)	*398445366mm*
Net Weight	4kg
Gross Weight	6kg
