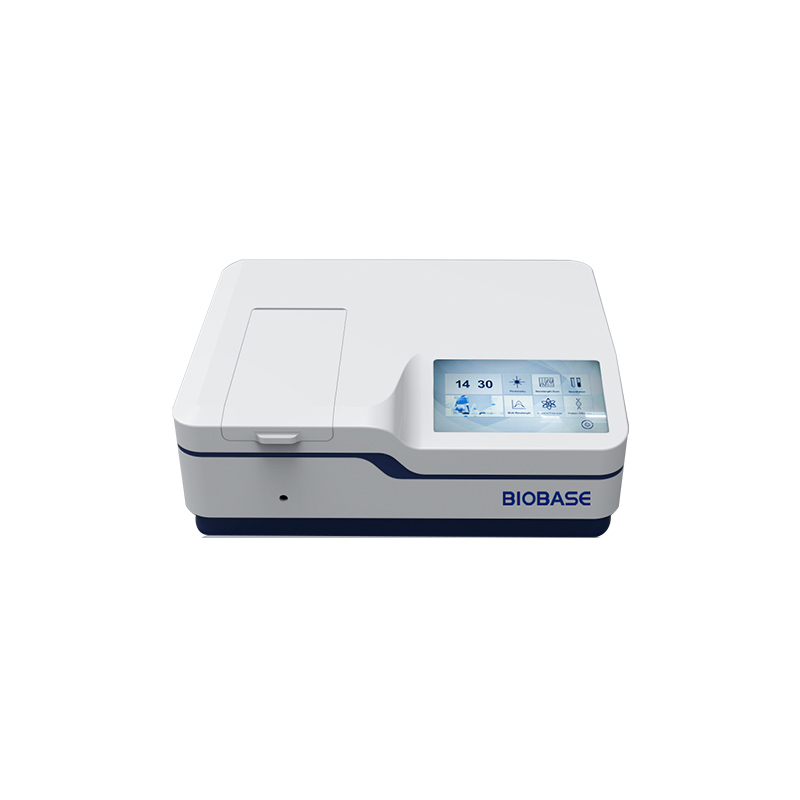

UV-Vis Spectrophotometer

BK-D9X

Analytical instrument based on molecular absorption of ultraviolet and visible radiation. It is used in environmental monitoring, life sciences, food analysis, organic chemistry and biochemistry; available functions depend on the selected model.

Key features

Controlled optical measurement
Configurations for different spectral ranges
R&D and quality-control applications

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Quartz cuvettes or sample cells
Glass cuvettes
Compatible software

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-D9X
Optical System	Double beam, 1200 lines/mm holographic grating
Spectral Bandwidth	1.0/2.0 nm
Wavelength Range	190–1100 nm
Wavelength Accuracy	±0.3 nm
Wavelength Repeatability	0.1 nm
Wavelength Resolution	0.1 nm
Data Display	10-inch LCD color touchscreen
Stray Light	≤0.05 %TT at 220 nm, 360 nm
Photometric Range	0–200 %T, -0.3–3.0 A, 0–9999C (0–9999F)
Maximum Allowable Error of Transmittance	±0.3 %T
Transmittance Repeatability	≤0.1 %T
Baseline Flatness	±0.001Abs
Drift	≤0.1 %T
Noise	0 %≤0.05 %T, 100 %≤0.1 %T
Light Source	Xenon Lamp
Power Supply Voltage Adaptability	±0.1 %
Data Output	RS-232C serial port (printing), USB drive (online connection), USB HOST (U disk)
Processor	Cotex_M3, main frequency 120 MHz
Supply Power	220 V, 50/60 Hz(Standard); 110 V, 50/60 Hz(Optional)
External Size（WDH）mm	580 × 450 × 215
Package Size（WDH）mm	800 × 645 × 265
Net Weight(kg)	21
Gross Weight（kg）	26
