Spectroscopy

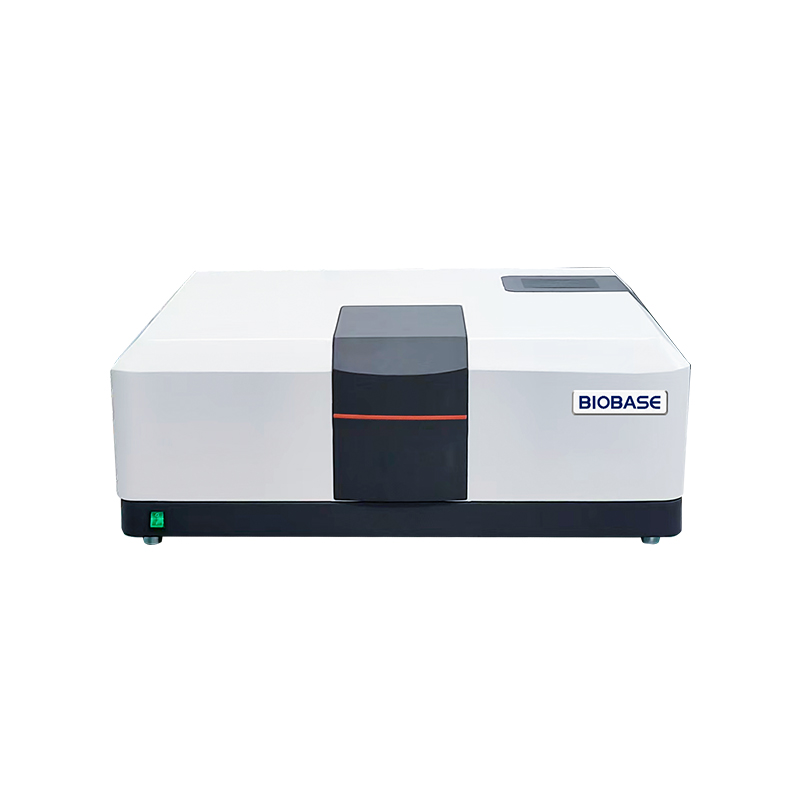

UV-Vis NIR Spectrophotometer

BK-UN600PLUS

Double-beam spectrophotometer covering the ultraviolet, visible and near-infrared regions. It measures transmittance, absorbance and reflectance in glass, coatings, films and other optical materials.

Key features

  • Controlled optical measurement
  • Configurations for different spectral ranges
  • R&D and quality-control applications
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

  • Compatible software

Optional accessories

  • Integrating sphere
  • Transmission accessory
  • Reflection accessory

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-UN600PLUS
Optical System
Double beam
Light Source
Deuterium lamp, tungsten lamp
Detector
PMT, PbS
Optical System (2)
Czerny-Turner
Wavelength Range
190–3200 nm(Transmission and specular reflectance mode) 250–2500 nm(Integrating sphere mode)
Stability
±0.002 A/hr @500 nm, 0 A
Wavelength Accuracy
±0.5 nm(UV/Vis) ±0.4 nm(NIR)
Wavelength Repeatability
≤0.2 nm(UV/Vis) ≤1 nm(NIR)
Spectral Bandwidth
0.1–7 nm(UV/Vis) 0.8–20 nm(NIR)
Operate Mode
Transmittance, absorbance, reflectivity, energy
Raster
Diffraction grating 1200 L/mm(UV/Vis) 300 L/mm(NIR)
Photometric Accuracy
±0.3 %T(0–100 %T)
Photometric Repeatability
≤0.2 %T
Stray Light
≤0.2 %T(360 nm, 420 nm)
Sampling Interval
0.1 nm, 0.2 nm, 0.5 nm, 1 nm, 1.5 nm, 2 nm, 5 nm, 10 nm
Photometric Range
0–3 A
Baseline Flatness
±1 %T(190–3200 nm, after 30 min warm-up) ±0.5 %T(200–2500 nm, after 30 min warm-up)
Host Interface
USB2.0
Power Supply
AC 110/220 V, 50/60 Hz
Standard Accessory
Operational software
Optional Accessory
Integrating sphere accessory(60/100/150 mm); transmission accessory; reflection accessory(Only the 60 mm integrating sphere accessory, transmission accessory, and reflection accessory are configurable simultaneously)
External Size(W*D*H)
760 × 605 × 300 mm
Package Size(W*D*H)
870 × 750 × 505 mm
Net Weight
48 kg
Gross Weight
69 kg

Technical data supplied by BIOBASE.

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.

The information provided will be used only to respond to your request. More privacy information
