Centrifuges

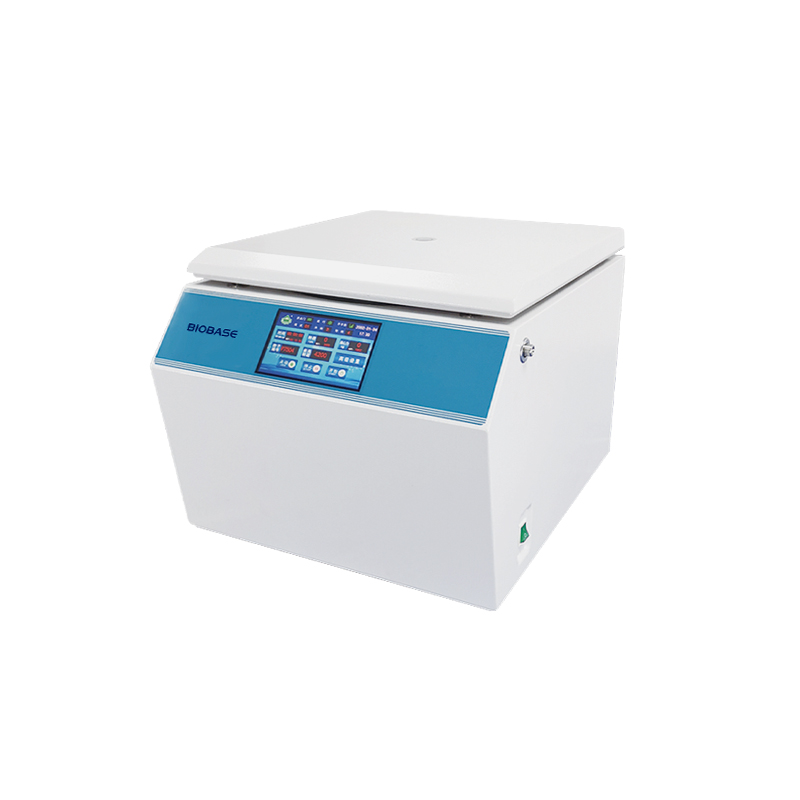

Table Top Low Speed Centrifuge
BKC-TL5VI / BKC-TL6III / BKC-TL6IV
The Table Top Low Speed Centrifuge is a compact and efficient laboratory device designed for a variety of applications such as cell culture, blood separation, and routine sample processing. With a user-friendly interface and reliable performance, this centrifuge is ideal for use in research labs and educational institutions.
Key features
- Controlled speed and centrifugal force
- Rotors matched to the vessel
- Benchtop and refrigerated formats
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BKC-TL5VI | BKC-TL6III | BKC-TL6IV |
|---|---|---|---|
| Max. Capacity | 4 × 750 mL | 8 × 100 mL | 4 × 500 mL |
| Max. Speed | |||
| Max. RCF | |||
| Speed Precision | |||
| Timing Range | |||
| Noise | ≤50dB | ≤60dB | ≤60dB |
| Power Supply | |||
| External Size(W*D*H)mm | 640 × 515 × 450 | 540 × 425 × 405 | 610 × 485 × 400 |
| Package Size(W'D*H)mm | 750 × 645 × 630 | 620 × 555 × 550 | 750 × 645 × 630 |
| Gross Weight(kg) | 86 | 48 | 62 |
| Rotor No. | Max. Capacity | Max. Speed(rpm) | Max. RCF(xg) |
| No.1 Swing Rotor | 4 × 750 mL | 4200 | 3727 |
| Adapter | 4 × 500 mL | 4200 | 3727 |
| Adapter (2) | 4 × 250 mL(corning tube) | 4200 | 3727 |
| Adapter (3) | 4 × 250 mL | 4200 | 3727 |
| Adapter (4) | 12 × 100 mL | 4200 | 3727 |
| Adapter (5) | 20 × 50 mL(▲) | 4200 | 3727 |
| Adapter (6) | 56 × 10/15 mL(▲) | 4200 | 3727 |
| Adapter (7) | 76 × 10 mL vacuum blood tube | 4200 | 3727 |
| Adapter (8) | 96 × 3/5/7 mL vacuum blood tube | 4200 | 3727 |
| Adapter (9) | 148 × 5 mL(RIA tube) | 4200 | 3727 |
| Adapter (10) | 28 × 50 mL(●) | 4200 | 3727 |
| No.2 Uncapped Swing Rotor | 96 × 3/5 mL vacuum blood tube | 4200 | 3727 |
| Uncapped Adapter | 96 × 3/5 mL vacuum blood tube | 4200 | 3727 |
| No.3 Anti-pollution Swing Rotor | 4 × 750 mL | 4200 | 3727 |
| No.4 Swing Rotor | |||
| No.5 Swing Rotor | 148 × 5 mL vacuum blood tube | 4200 | 3451 |
| No.6 Angle Rotor | 6 × 50 mL | 6000 | 5502 |
| No.7 Microplate Rotor【DWP/MTP】 | 2 × 96-well /2 × 2 × 96-well | 5000 | 3530 |
| No.8 Microplate Rotor【DWP/MTP】 | 4 × 96-well/2 × 4 × 96-well | 4000 | 3667 |
| No.1 Swing Rotor (2) | 4 × 100 mL | 5000 | 4500 |
| Adapter (11) | 4 × 100 mL | 5000 | 4500 |
| Adapter (12) | 4 × 50 mL | 5000 | 4500 |
| Adapter (13) | 12 × 15 mL(▲) | 5000 | 4500 |
| Adapter (14) | 16 × 5/10 mL | 5000 | 4500 |
| No.2 Swing Rotor | 4 × 100 mL | 4500 | 3645 |
| Adapter (15) | 4 × 100 mL | 4500 | 3645 |
| Adapter (16) | 8 × 50 mL | 4500 | 3645 |
| Adapter (17) | 24 × 10/15 mL(▲/urine sediment tube) | 4500 | 3645 |
| No.3 Swing Rotor | 8 × 100 mL | 4200 | 3175 |
| Adapter (18) | 8 × 100 mL | 4200 | 3175 |
| Adapter (19) | 8 × 50 mL | 4200 | 3175 |
| Adapter (20) | 32 × 10/15 mL | 4200 | 3175 |
| No.6 Swing Rotor | 40 × 5/7 mL vacuum blood tube | 4500 | 3645 |
| Adapter 1 | 40 × 5/7 mL vacuum blood tube | 4500 | 3645 |
| Adapter 2 | 24 × 10/15 mL(▲/urine sediment tube) | 4500 | 3645 |
| No.4 Swing Rotor (2) | 32 × 5 mL | 4500 | 3645 |
| Adapter 1 (2) | 32 × 5/7 mL vacuum blood tube | 4500 | 3645 |
| No.5 Uncapped Swing Rotor | 32 × 5 mL vacuum blood tube | 4500 | 3645 |
| Uncapped Adapter (2) | 32 × 5 mL vacuum blood tube | 4500 | 3645 |
| No.7 Swing Rotor | 48 × 5/7 mL vacuum blood tube | 4500 | 3645 |
| Adapter (21) | 48 × 5/7 mL vacuum blood tube | 4500 | 3645 |
| No.8 Uncapped Swing Rotor | 48 × 5 mL vacuum blood tube8 | 4500 | 3645 |
| Uncapped Adapter (3) | 48 × 5 mL vacuum blood tube | 4500 | 3645 |
| No.9 Angle Rotor | 12 × 5/10 mL | 6000 | 5502 |
| No.10 Angle Rotor | 6 × 50 mL | 6000 | 5502 |
| No.11Microplate Rotor【DWP/MTP】 | 2 × 96-well /2 × 2 × 96-well | 5000 | 3530 |
| No.1 Swing Rotor (3) | 4 × 300 mL(round cup） | 4500 | 3645 |
| Adapter (22) | 4 × 250 mL | 4500 | 3645 |
| Adapter (23) | 12 × 50 mL | 4500 | 3645 |
| Adapter (24) | 40 × 10 mL vacuum blood tube | 4500 | 3645 |
| Adapter (25) | 28 × 15 mL(▲) | 4500 | 3645 |
| Adapter (26) | 56 × 3/5 mL vacuum blood tube | 4500 | 3645 |
| Adapter (27) | 76 × 5 mL(RIA tube) | 4500 | 3645 |
| No.2 Swing Rotor (2) | 4 × 500 mL(round cup） | 4200 | 3451 |
| Adapter (28) | 4 × 250 mL | 4200 | 3451 |
| Adapter (29) | 8 × 100 mL | 4200 | 3451 |
| Adapter (30) | 16 × 50 mL | 4200 | 3451 |
| Adapter (31) | 56 × 10 mL(●) | 4200 | 3451 |
| Adapter (32) | 40 × 15 mL(▲) | 4200 | 3451 |
| Adapter (33) | 68 × 3/ 5/7 mL vacuum blood tube | 4200 | 3451 |
| Adapter (34) | 96 × 5 mL(RIA tube) | 4200 | 3451 |
| No.3 Uncapped Swing Rotor | 68 × 3/5 mL vacuum blood tube | 4200 | 3451 |
| Uncapped Adapter (4) | 68 × 3/5 mL vacuum blood tube | 4200 | 3451 |
| No.4 Angle Rotor | 6 × 50 mL | 6000 | 5502 |
| No.5 Angle Rotor | 12 × 5/10 mL | 6000 | 5502 |
| No.6 Microplate Rotor【DWP/MTP】 | 2 × 96-well / 2 × 2 × 96-well | 5000 | 3530 |
