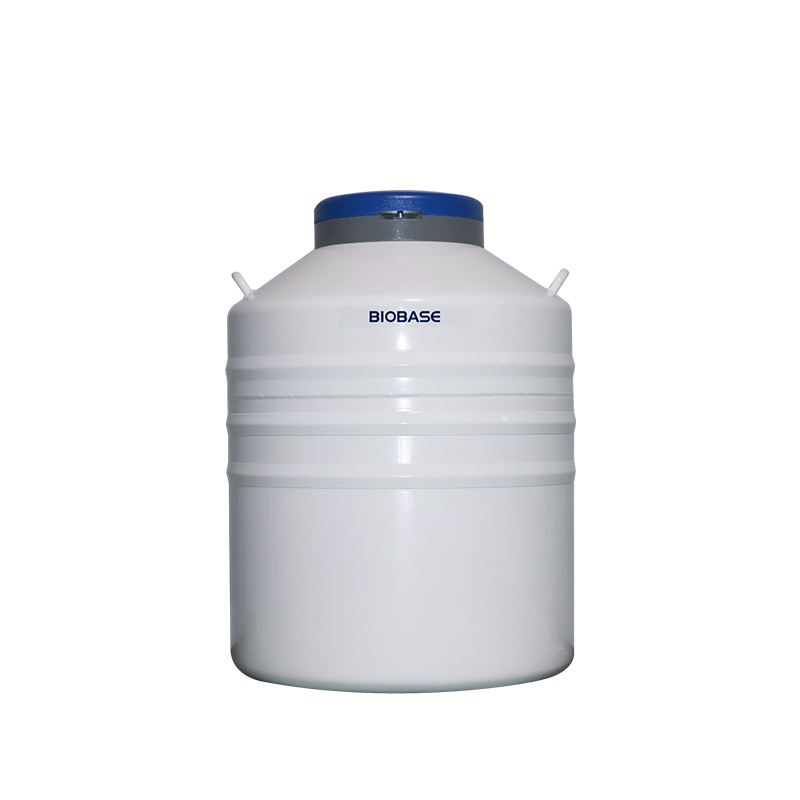

Static Storage Liquid Nitrogen Container

YDS-47–127-FS / YDS-47–127LS(6) / YDS-47–127 / YDS-65–216-FS / YDS-65–216S / YDS-95–216-FS / YDS-95–216S / YDS-120–216-FS / YDS-120–216S / YDS-145–216-FS / YDS-145–216S / YDS-175–216-FS / YDS-175–216S

Liquid nitrogen tank is a kind of equipment for storing and transporting liquid nitrogen, which is mainly used in scientific research, industrial production, medical treatment and agriculture. ‌ The design of liquid nitrogen tank is based on the principle of vacuum jacket insulation invented by Dewar, which can effectively reduce the evaporation loss of liquid nitrogen due to heat convection, conduction and radiation.

Key features

Monitored temperature
Alarms and sample protection
Capacity matched to inventory

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	YDS-47–127-FS	YDS-47–127LS(6)	YDS-47–127	YDS-65–216-FS	YDS-65–216S	YDS-95–216-FS	YDS-95–216S	YDS-120–216-FS	YDS-120–216S	YDS-145–216-FS	YDS-145–216S	YDS-175–216-FS	YDS-175–216S
Capacity	Common to all modelsL · 47 · 47 · 47 · 65 · 65 · 95 · 95 · 125 · 125 · 145 · 145 · 175 · 175
Empty Weight	Common to all modelskg · 25.7 · 24.1 · 20.2 · 50.8 · 41.5 · 58.3 · 45.7 · 66 · 52.5 · 71.9 · 53.3 · 79.1 · 57.5
Caliber	Common to all modelsmm · 127 · 127 · 127 · 216 · 216 · 216 · 216 · 216 · 216 · 216 · 216 · 216 · 216
Outer Diameter	Common to all modelsmm · 508 · 508 · 508 · 684 · 684 · 684 · 684 · 684 · 684 · 684 · 684 · 684 · 684
Height	Common to all modelsmm · 700 · 700 · 675 · 770 · 770 · 790 · 790 · 970 · 970 · 975 · 975 · 1060 · 1060
Static Evaporation Loss	Common to all modelsL/d · 0.45 · 0.45 · 0.45 · 0.89 · 0.78 · 0.97 · 0.97 · 0.98 · 0.98 · 0.96 · 0.96 · 0.95 · 0.95
Static · Holding Time	Common to all modelsd · 105 · 105 · 105 · 73 · 83 · 98 · 98 · 127 · 127 · 151 · 151 · 184 · 184
Canister Specification	Common to all modelsmm · Square: · 82 × 84, · 750pcs of 2 mL vials · Round: · 104 × 276 · 一 · Square: · 142 × 144, · 1944pcs of 2 mL vials · — · Square: · 142 × 144, · 2430pcs of 2 mL vials · 一 · Square: · 142 × 144, · 2916pcs of 2 mL vials · 一 · Square: 142 × 144, 3888/4800pcs of 2 mL vials · 一 · Square: · 142 × 144, · 4860pcs of 2 mL vials · —
Canister · NO.(Standard)	Common to all modelspc · 6 · 6 · 一 · 6 · 一 · 6 · 一 · 6 · 一 · 6 · 一 · 6 · 一
Canvas Protective · Sleeve	Common to all modelspc · 一 · 一 · 一 · 一 · 一 · 一 · 一 · 一 · 一 · 一 · 一 · 一 · 一
Lockable Lid	Common to all modelsset · √ · √ · 一 · √ · √ · √ · √ · √ · √ · √ · √ · √ · √
Packing Size	Common to all modelsmm · 575 × 575 · 860 · 575 × 575 · 860 · 575 × 575 · 860 · 760 × 760 · 910 · 760 × 760 · 910 · 760 × 760 · 950 · 760 × 760 · 950 · 760 × 760 · 1105 · 760 × 760 · 1105 · 760 × 760 × 1130 · 760 × 760 · 1130 · 760 × 760 · 1200 · 760 × 760 · 1200
Gross Weight — kg	29.5	27.9	24	63.7	54.4	73.9	58.7	79.9	66.4	85.9	67.5	93.5	71.9

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
