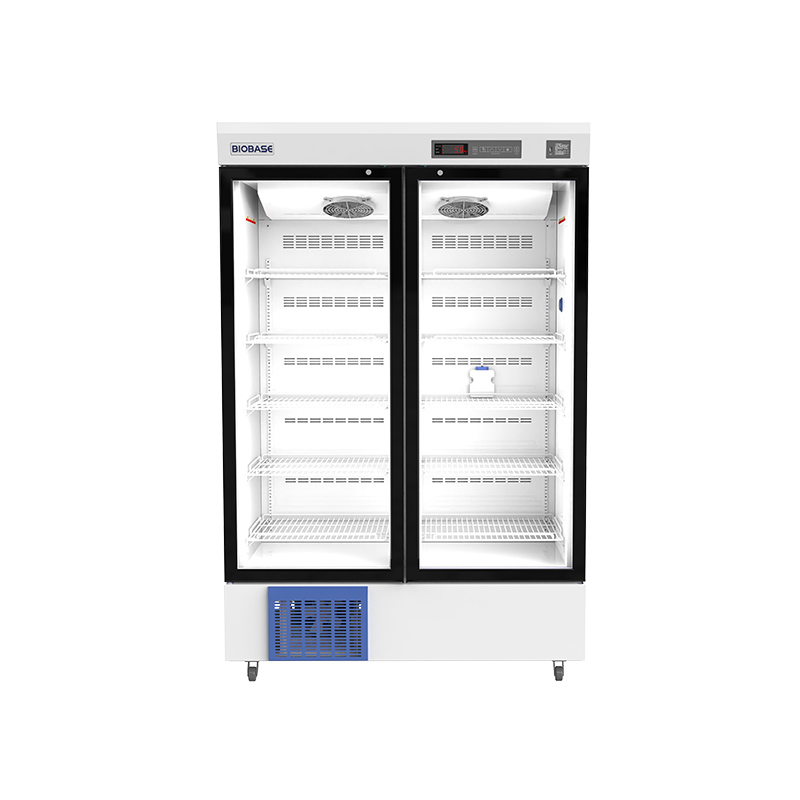

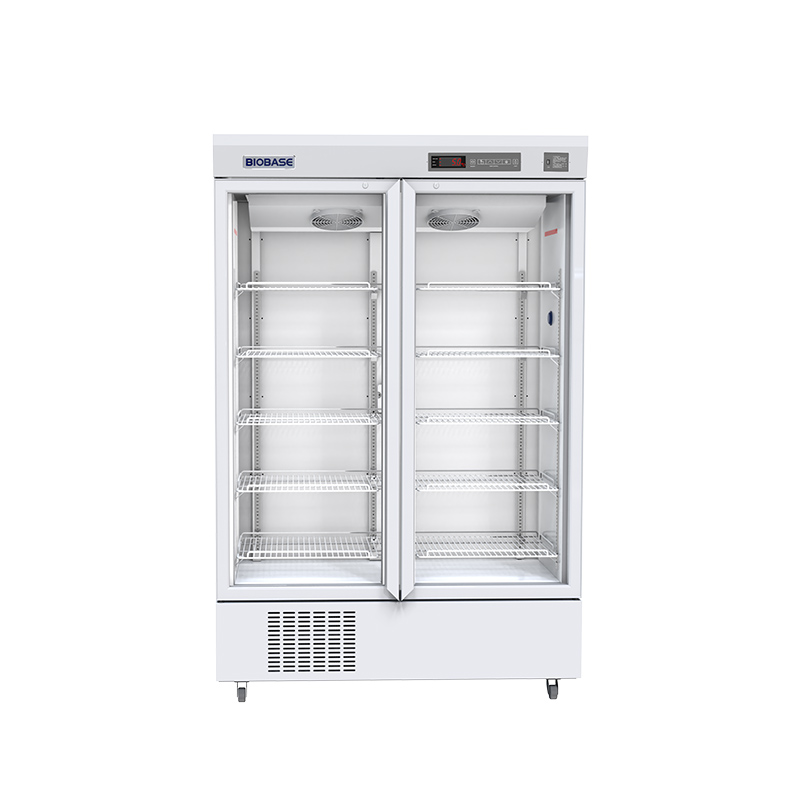

2–8 °C laboratory refrigerator

BPR-5V628 / BPR-5V650 / BPR-5V968

The laboratory refrigerator is a device specifically designed for use in the laboratory environment with a set of key characteristics that make it ideal for storing reagents, media, proteins and other products, as well as other biomedical samples, in research, clinical and industrial laboratories.

Key features

Monitored temperature
Alarms and sample protection
Capacity matched to inventory

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Test hole
USB interface

Optional accessories

RS485
Printer
Temperature recorder

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BPR-5V628	BPR-5V650	BPR-5V968
Capacity	628 L	650 L	968 L
Temp. Range	Common to all models2–8 °C
Temp. Accuracy	Common to all models0.1 °C
Temp. Uniformity	Common to all models≤2 °C
Temp. Stability	Common to all models≤3 °C
Recovery Time(Recover to 8℃ in an ambient temp. of 32℃)	Common to all models≤15 min
Cooling Time(Cool down to 6℃ in an ambient temp. of 32℃)	≤100 min	≤75 min	≤100 min
Control System	Common to all modelsMicroprocessor control
Display	Common to all modelsLED
Alarm	Common to all modelsHigh / low temperature alarm, power failure alarm(8 h), controller failure alarm, door ajar alarm
Refrigeration Type	Common to all modelsAir-cooling
Refrigerant	Common to all modelsR290/150 g
Compressor	Common to all modelsInternational famous brand compressor/1
Condenser&Evaporator	Common to all modelsCopper tube aluminum fin type
Defrost	Common to all modelsAutomatic defrost
Construction	Common to all modelsPolyurethane cyclopentane insulation material
Material — Internal Material	Common to all modelsSpraying steel plate
Material — External Material	Common to all modelsSpraying steel plate
Door	Common to all modelsElectrically heated glass door*2
Consumption	Common to all models300 W
Power Supply	Common to all modelsAC220V, 50 Hz(Standard); 110/220 V, 60 Hz(Optional)
Casters	Common to all modelsYes
Shelf	Common to all models10
Standard Accessory	Common to all modelsTest hole, USB interface
Optional Accessory	Common to all modelsRS485, printer, temperature recorder
Internal Size(WDH)	1100 × 454 × 1325 mm	1100 × 479 × 1325 mm	1100 × 684 × 1325 mm
External Size(WDH)	1220 × 630 × 1885 mm	1220 × 630 × 1885 mm	1220 × 860 × 1885 mm
Package Size(WDH)	1340 × 750 × 2100 mm	1340 × 750 × 2100 mm	1340 × 980 × 2100 mm
Net Weight	189 kg	189 kg	212 kg
Gross Weight	223 kg	223 kg	256 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
