Spectroscopy

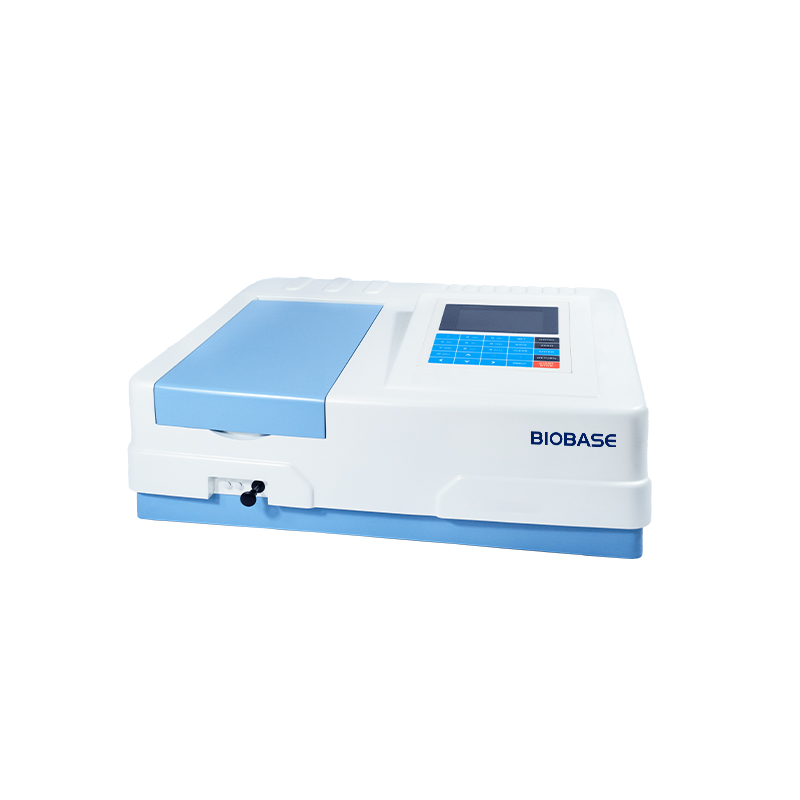

Scanning UV/VIS Spectrophotometer

BK-S360 / BK-S380 / BK-S390

Analytical instrument based on molecular absorption of ultraviolet and visible radiation. It is used in environmental monitoring, life sciences, food analysis, organic chemistry and biochemistry; available functions depend on the selected model.

Key features

  • Controlled optical measurement
  • Configurations for different spectral ranges
  • R&D and quality-control applications
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

  • Quartz cuvettes or sample cells
  • Glass cuvettes
  • Cuvette holders
  • Compatible software

Optional accessories

  • Reflection accessory
  • Microcuvettes and holder
  • Thermostatted cuvette holder
  • Test-tube holder
  • Solid-sample holder
  • Sample holder
  • Deuterium lamp
  • Tungsten lamp
  • Printer

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-S360BK-S380BK-S390
Optical System
Common to all modelsSingle Beam, Grating 1200 lines/mm
Wavelength Range
Common to all models190–1100 nm
Spectral Bandwidth1.8 nm1 nm0.5, 1, 2, 4, 5 nm
Wavelength Accuracy
Common to all models±0.3 nm
Wavelength Repeatability
Common to all models≤0.2 nm
Photometric Accuracy
Common to all models±0.002 A(0–0.5Abs), ±0.004 A(0.5–1.0Abs), ±0.3 %T(0–100 %T)
Photometric Repeatability
Common to all models0.001Abs(0–0.5Abs), 0.002Abs(0.5–1.0Abs), ≤0.1 %T(0–100 %T)
Stray Light
Common to all models≤0.04 %T@360 nm; 220 nm
Stability
Common to all models±0.001 A/h@500 nm
Baseline Flatness
Common to all models±0.0015 A
Noise
Common to all models±0.0004Abs
Display
Common to all models65 thousand true color 7 inch TFT LCD(480 × 800)
Photometric Mode
Common to all modelsT, A, C, E
Photometric Range
Common to all models0–200 %T, -0.301–3.0 A
Detector
Common to all modelsSilicon Photodiode
Light Source
Common to all modelsDeuterium Lamp, Tungsten Lamp
Input
Common to all modelsMembrane keypad
Output
Common to all modelsUSB-A*2 print and data output USB-B connect PC
Standard Accesseries
Common to all models1 cm glass cuvette*4, 1 cm quartz cuvette*2, 1 cm quadruple cuvette holder, scanning software
Power Supply
Common to all modelsAC85–265 V, 50/60 Hz
Package Size(W*D*H)
Common to all models740 × 570 × 440 mm
Gross Weight
Common to all models25 kg

Technical data supplied by BIOBASE.
