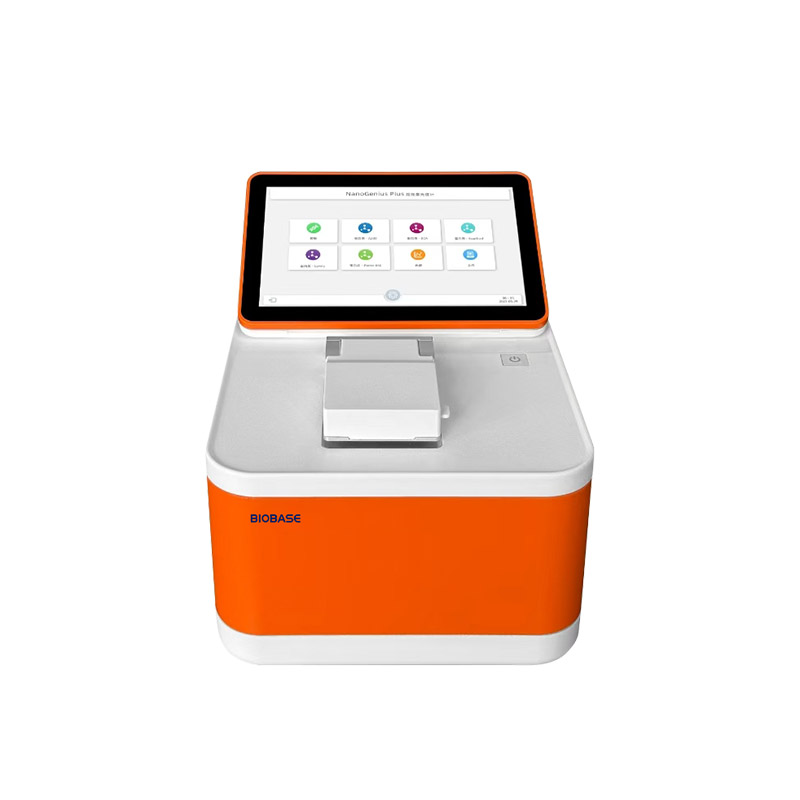

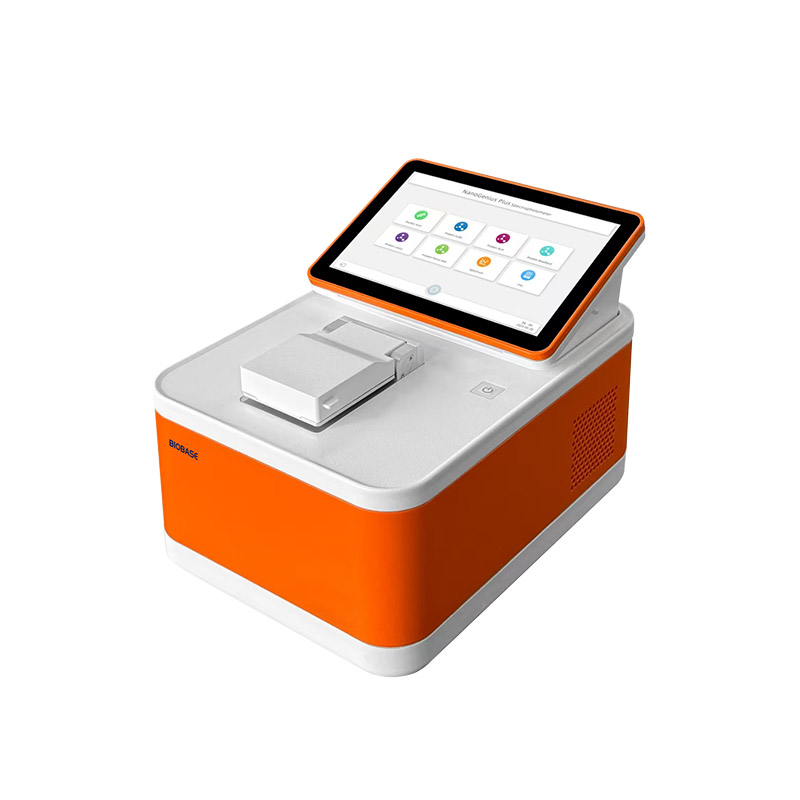

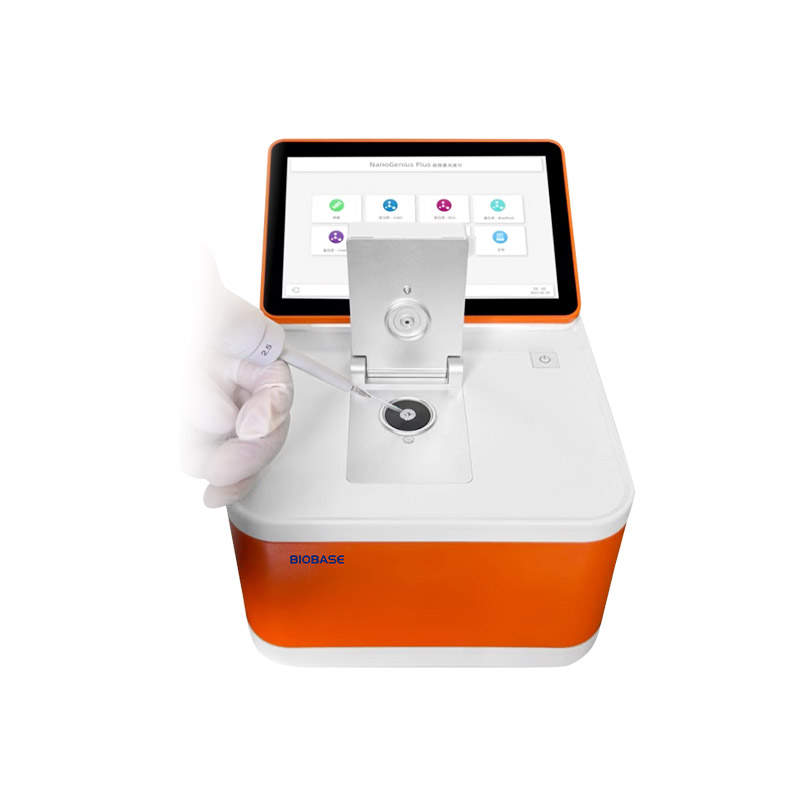

Micro-Volume UV/VIS Spectrophotometer

BK-CW500P

Micro-volume spectrophotometer for quantitative and qualitative absorbance analysis. It quantifies nucleic acids, proteins and bacterial growth using very small sample volumes.

Key features

Controlled optical measurement
Configurations for different spectral ranges
R&D and quality-control applications

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-CW500P
Pathlength	0.5 mm
Sample Volume	0.5–2 µL
Light Source	Long-life pulsed xenon lamp
Wavelength Range	190–1000 nm
Wavelength Precision	±1 nm
Wavelength Resolution	0.5 nm
Absorbance Precision	0.001Abs
Absorbance Accuracy	0.3 %
Absorbance Range	0.001–300Abs(Equivalent to 10 nm)
Nucleic Acid Measurement Range	10–5000 ng/µL dsDNA
Protein Measurement Range	0.05–300 mg/ml, BSA
Display Mode	8-inch color capacitive touch screen
Data Output	*USB-A2; USB-B1*
Power Supply	AC220V, 50/60 Hz; 110 V, 50/60 Hz(Optional, external transformer)
External Size(WDH)	210 × 285 × 210 mm
Package Size(WDH)	300 × 400 × 300 mm
Net Weight	5 kg
Gross Weight	5.2 kg
