Laminar flow cabinets

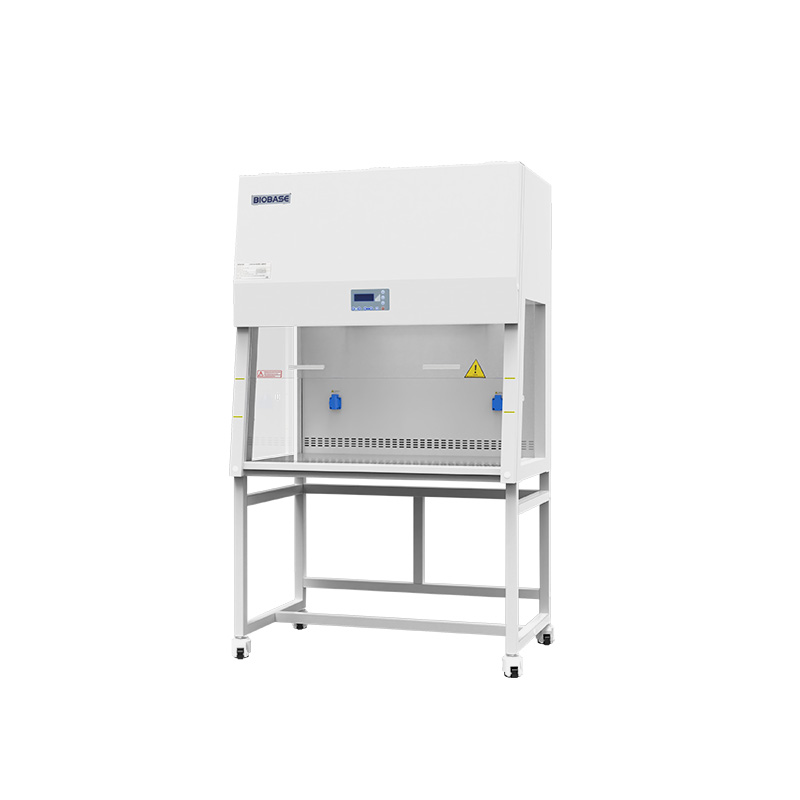

Laminar Flow Cabinet

BBS-V1100-XF / BBS-V1500-XF / BBS-V1800-XF

The Vertical Laminar Flow Cabinet is a high-performance clean air workstation designed to protect samples from contamination by providing a sterile environment. This cabinet directs HEPA-filtered air in a vertical unidirectional flow, ensuring that the working area remains free of airborne particles.

Key features

  • HEPA-filtered laminar airflow
  • Sample protection
  • Vertical or horizontal configuration
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBBS-V1100-XFBBS-V1500-XFBBS-V1800-XF
Airflow Pattern
Common to all modelsVertical laminar flow, return air
Applicable Number of People123
External Size(W*D*H)1100 × 710 × 1850 mm1500 × 710 × 1850 mm1800 × 710 × 1850 mm
Instrument Size(W*D*H)1000 × 575 × 625 mm1400 × 575 × 625 mm1700 × 575 × 625 mm
Work Surface Height
Common to all models750 mm
Max Opening
Common to all models400 mm
Air Velocity
Common to all models0.3–0.45m/s
Airflow Volume
Common to all models750m³/h
Noise
Common to all models≤65dB(A)
LED Lamp12 W*116 W*116 W*1
UV Lamp20 W*140 W*140 W*1
Power Supply
Common to all models220 V±10 %, 50/60 Hz; 110 V±10 %, 60 Hz
Consumption700 W750 W900 W
HEPA Filter
Common to all models1pc
Gross Weight190 kg240 kg280 kg
Package Size(W*D*H)1240 × 1050 × 1350 mm1640 × 1050 × 1350 mm1940 × 1050 × 1350 mm

Technical data supplied by BIOBASE.

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
