Water purifiers

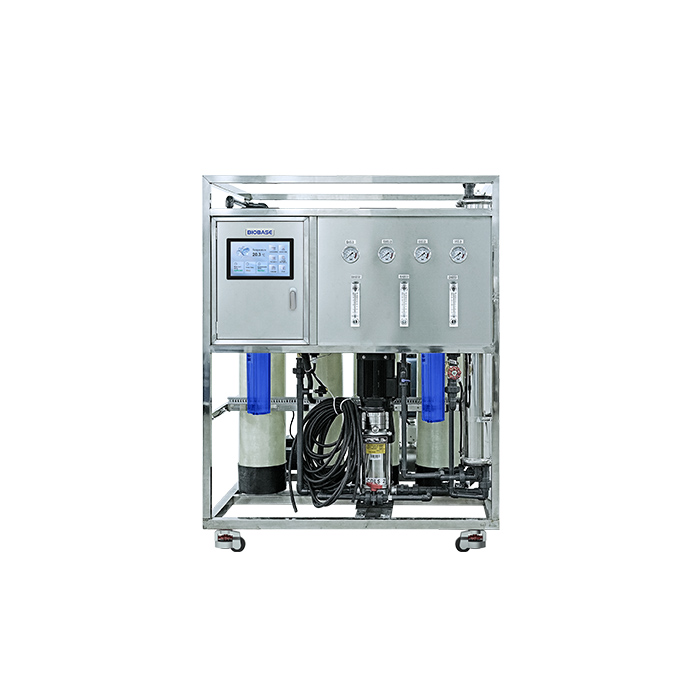

Laboratory Water Purifier 300L/h 600L/h 1000L/h
SCSJ-II-300LF / SCSJ-II-600LF / SCSJ-II-1000LF
Provide ultra-pure water for biochemical room, laboratory department and laboratory water points.
Key features
- Continuous purified-water production
- Quality selected by application
- Output-parameter monitoring
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | SCSJ-II-300LF | SCSJ-II-600LF | SCSJ-II-1000LF |
|---|---|---|---|
| Water Output Type | |||
| Water Output Speed | 300 L/h/set(25 °C) | 600 L/h/set(25 °C) | 1000 L/h/set(25 °C) |
| External Size(Without Water Tank)(L*W*H) | 1150 × 930 × 1530 mm | 1150 × 930 × 1530 mm | 1350 × 700 × 1700 mm |
| Water Tank(Optional) | Φ720 × 1150 mm | Φ720 × 1150 mm | Φ1100 × 1350 mm |
| External Size(With Water Tank)(L*W*H) | 1870 × 930 × 1530 mm | 1870 × 930 × 1530 mm | 2500 × 1200 × 1800 mm |
| Water Utilization Rate | |||
| Desalinization Rate | |||
| Production Water Quality Treatment Method | |||
| Control Mode | 10-inch touch screen, fully automatic control | 10-inch touch screen, fully automatic control | PLC automatic control |
| Producing Water Quality | |||
| Producing Water Quality (2) | |||
| Component | |||
| Power Supply | |||
| Packing Size | |||
| Packing Size (2) | |||
| Gross Weight(Equipment Host&Accessory) | 450 kg | 450 kg | 600 kg |
| Standard Quantity( Recommended Replacement Time) | SCSJ-II-300LF | SCSJ-II-600LF | SCSJ-II-1000LF |
| Coconut Shell Activated Carbon Filter | 12 kg(About 2 years) · | / | — |
| Quartz Sand | 20 kg(About 2 years) | 100 kg(About 2–3 years) | — |
| Ion Exchange Resin | 25 L(About 2 years) | / | — |
| PP Filter Element | 20"*1（About 3 months） | 1pc*2（About 1–3 months） | — |
| Folding Filter Element | 20"*1（About 6 months） | 1pc*2（About 3–6 months） | — |
| RO Membrane | 2pcs(About 2 years) | 4pcs(About 2–3 years) | — |
| Polished Resin | 30 L（About 30000 L of water） | / | — |
| Resin Regeneration Exchange Agent | / | / | 3 kg(According to the test agent test cycle) |
| Activated Carbon | / | / | 50 kg(About 2–3 years) |
| Softened Resin | / | / | 75 L(About 2–3 years) |
| Fine Mixed Resin | / | / | 50 L（Replacement is recommended at 3–6 months） |
MADE-TO-ORDER SUPPLY
Do you need this equipment?
Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.

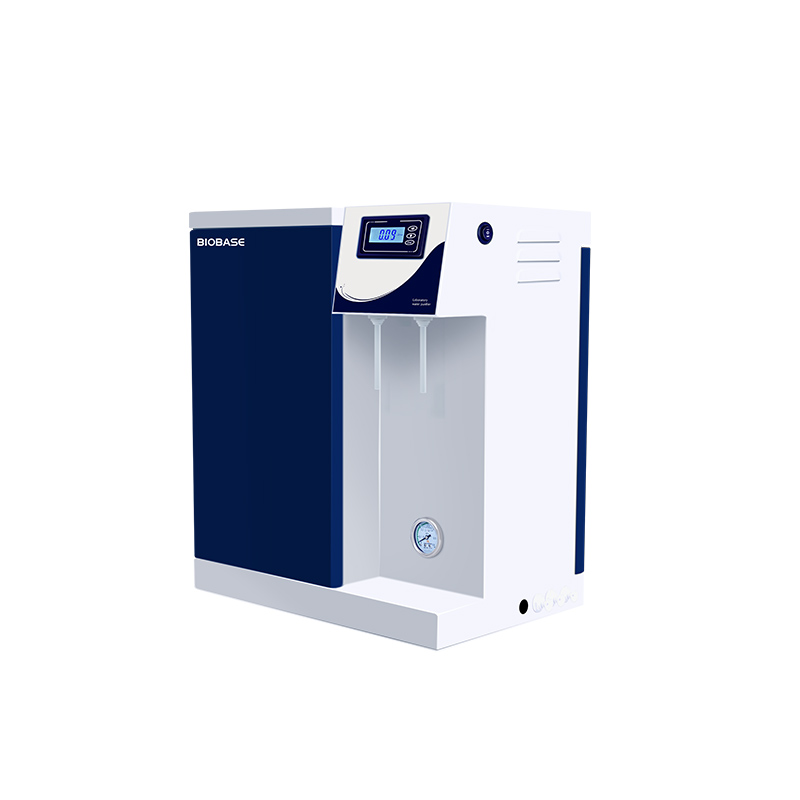

Laboratory water purification system
