Water purifiers

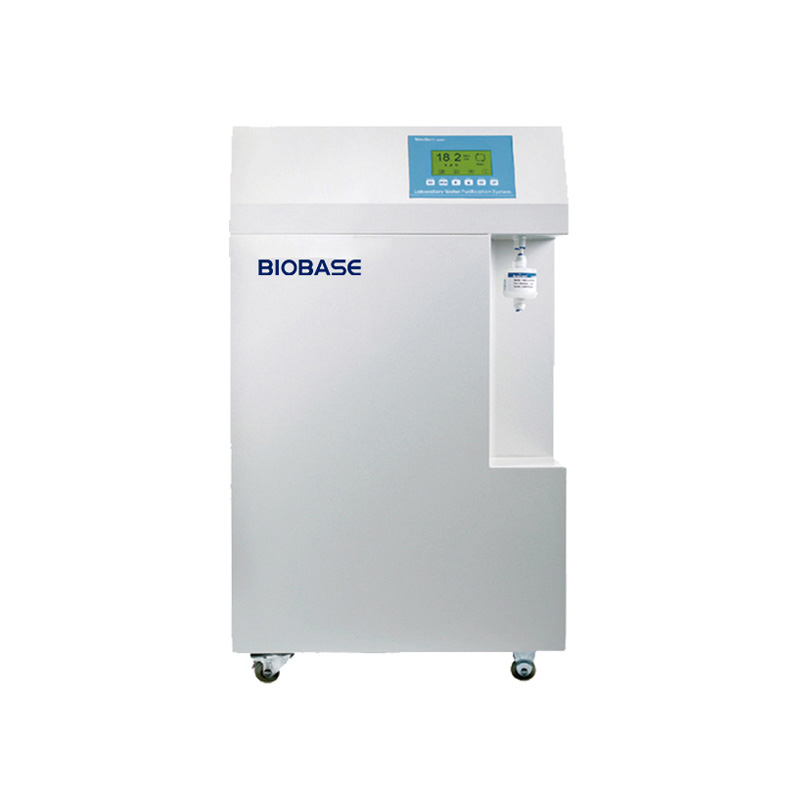

Laboratory Water Purifier

SCSJ-V 45 / SCSJ-V 63 / SCSJ-V 94 / SCSJ-V 125

The Medium Type Water Purifier(Automatic RO/DI System) is an intelligent, mid-capacity water purification solution designed to deliver reliable, high-purity water for laboratories, hospitals, pharmaceutical manufacturing, and industrial testing environments.

Key features

  • Continuous purified-water production
  • Quality selected by application
  • Output-parameter monitoring
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

  • Main body(include 1 set of purification column)
  • 2 built-in 15 liters tank
  • Accessory pack

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterSCSJ-V 45SCSJ-V 63SCSJ-V 94SCSJ-V 125
Water Output Type
Common to all modelsRO and DI water
Water Output Speed45 L/H63 L/H94 L/H125 L/H
Purifying Procedure
Common to all modelsPF+AC+RO+AC+DI+TF
Water Supply Requirement
Common to all modelsTap water: TDS＜200ppm, 5–45 °C, 1.0–4.0Kgf/cm² (if TDS≥200ppm, extra pretreatment filter is recommended)
Purifica- -tion System
Common to all modelsPretreatment Unit · 20"PP filter*1, 20" granular active carbon filter*1, 20"active carbon block filter* 1 · 20"PP filter*1, 20" granular active carbon filter*1, 20"active carbon block filter* 1 · 20"PP filter*1, 20" granular active carbon filter*1, 20"active carbon block filter* 1 · 20"PP filter*1, 20" granular active carbon filter*1, 20"active carbon block filter* 1
Purifica- -tion System (2)
Common to all modelsRO Unit · 300 GPD RO membrane*1 · 400 GPD RO membrane* 1 · 600 GPD RO membrane* 1 · 400 GPD RO membrane*2
Purifica- -tion System (3)
Common to all modelsSubsequent Unit · Organic matter purification column*1; 12 L ultra-purified column(imported resin)*1; 0.2 µm imported PES terminal filter*1 · Organic matter purification column*1; 12 L ultra-purified column(imported resin)*1; 0.2 µm imported PES terminal filter*1 · Organic matter purification column*1; 12 L ultra-purified column(imported resin)*1; 0.2 µm imported PES terminal filter*1 · Organic matter purification column*1; 12 L ultra-purified column(imported resin)*1; 0.2 µm imported PES terminal filter*1
DI Water Quality
Common to all modelsResistivity · 10–18.2MΩ.cm · 10–18.2MΩ.cm · 10–18.2MΩ.cm · 10–18.2MΩ.cm
DI Water Quality (2)
Common to all modelsConductivity · 0.1–0.055µs/cm · 0.1–0.055µs/cm · 0.1–0.055µs/cm · 0.1–0.055µs/cm
DI Water Quality (3)
Common to all modelsHeavy Metal · <0.1ppb · <0.1ppb · <0.1ppb · <0.1ppb
DI Water Quality (4)
Common to all modelsBacteria · <0.01cfu/ml · <0.01cfu/ml · <0.01cfu/ml · <0.01cfu/ml
DI Water Quality (5)
Common to all modelsParticle(>0.2 µm) · <1/ml · <1/ml · <1/ml · <1/ml
Flow Rate
Common to all models3.0 L/min(when there is water in the water tank)
RO Water Quality
Common to all modelsTDS(Total dissolved solid) of RO water(ppm)<TDS of inlet water*5 %
Consumption120 W120 W240 W240 W
Power Supply
Common to all modelsAC220V, 50/60 Hz; AC110V, 50/60 Hz
Standard Configuration
Common to all modelsMain body(include 1 set of purification column), 2 built-in 15 liters tank, accessory pack
External Size(W*D*H)
Common to all models640 × 540 × 1110 mm
Package Size(W*D*H)
Common to all models650 × 750 × 1280 mm
Gross Weight
Common to all models90 kg

Technical data supplied by BIOBASE.
