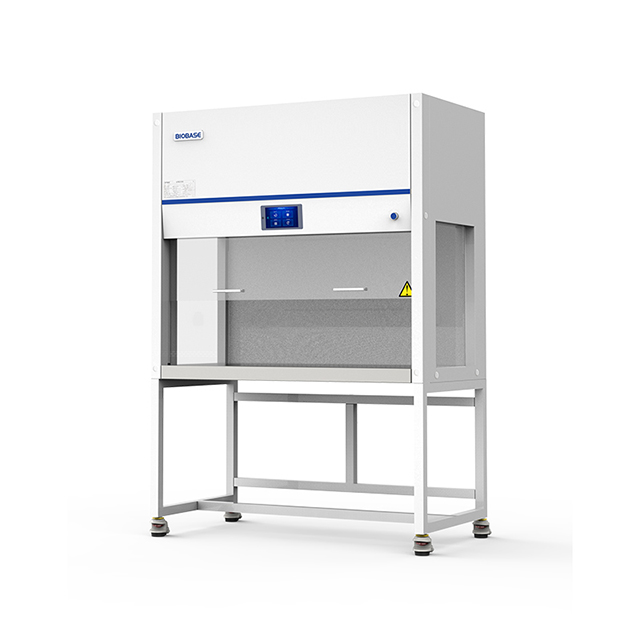

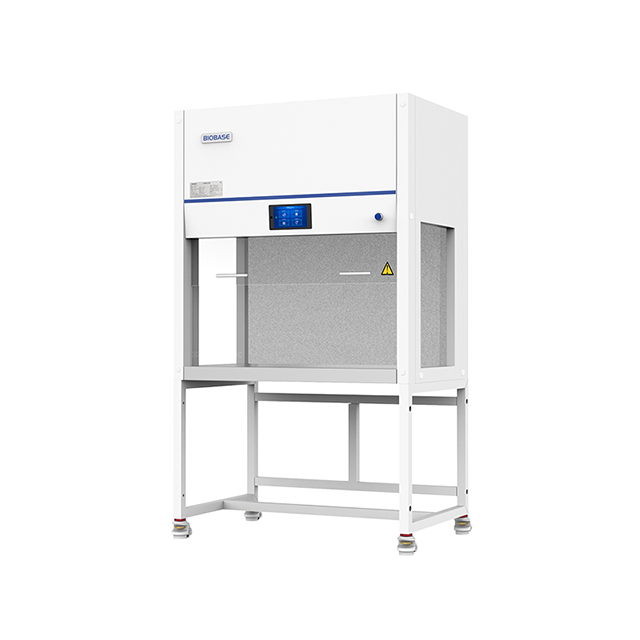

Horizontal Laminar Flow Cabinet

BKCB-H1100S / BKCB-H1300S

Laminar Flow Cabinet is used only for sample protection. Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.

Key features

HEPA-filtered laminar airflow
Sample protection
Vertical or horizontal configuration

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Base stand
LED lamp
UV lamp
Waterproof socket*2

Optional accessories

Motorized door
Armrest*2
Electric height adjustable base stand

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKCB-H1100S	BKCB-H1300S
External Size(WDH)	1100 × 820 × 1780 mm	1300 × 820 × 1780 mm
Internal Size(WDH)	1000 × 500 × 570 mm	1200 × 500 × 570 mm
Work Surface Height	Common to all models750 mm(Customized)
Safety Height	Common to all models200 mm
Max Opening	Common to all models320 mm
Display	Common to all modelsLCD display
Airflow Velocity	Common to all models0.2–0.45m/s
Material	Common to all modelsWorking area: 304 stainless steel Main body: 1.2 mm cold-rolled steel with anti-bacteria powder coating Front window: 5 mm toughened glass, anti-UV
Pre-filter	Common to all modelsPolyester fiber
HEPA Filter	Common to all modelsOne, 99.995 % efficiency at 0.3 µm
Front Window	Common to all modelsManual
Noise	Common to all models≤65dB(A)
Illumination	Common to all models≥300lx
Vibration	Common to all models≤5 µm(rms)
Safety	Common to all modelsColonies number≤0.5CFU/30 min
Clean Level	Common to all modelsISO level 5(Class 100)
Waterproof Sockets	Common to all modelsTwo sockets, Max. Power: 500 W
Power Supply	Common to all modelsAC220V±10 %, 50/60 Hz(Standard); 110 V±10 %, 60 Hz(Optional)
Consumption	Common to all models700 W
LED Lamp	Common to all models8 W*1
UV Lamp	Common to all models15 W*2
Package Size(WDH)	1250 × 1030 × 1270 mm	1450 × 1030 × 1270 mm
Gross Weight	235 kg	290 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
