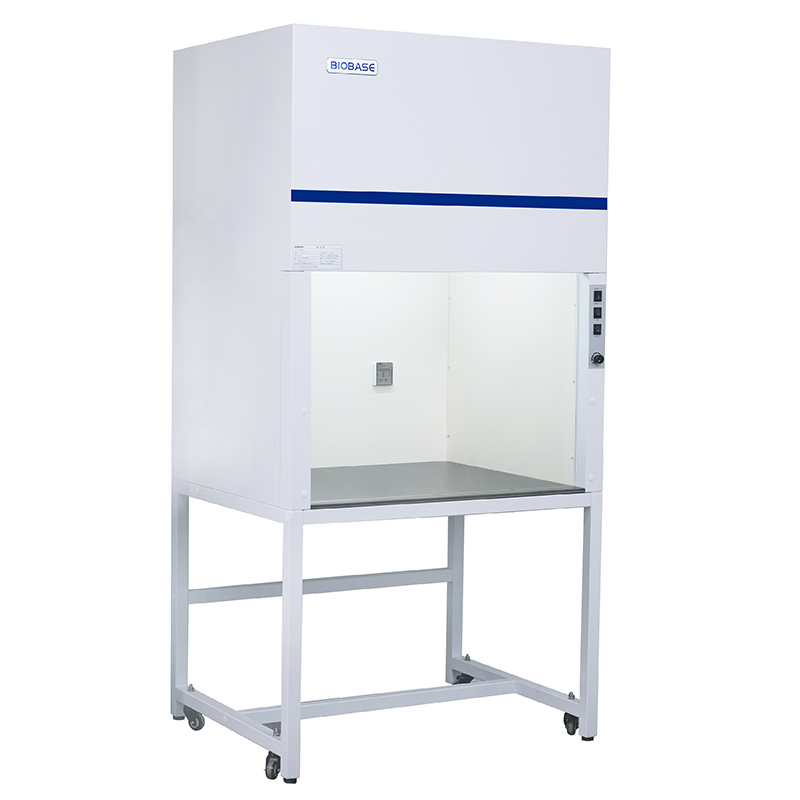

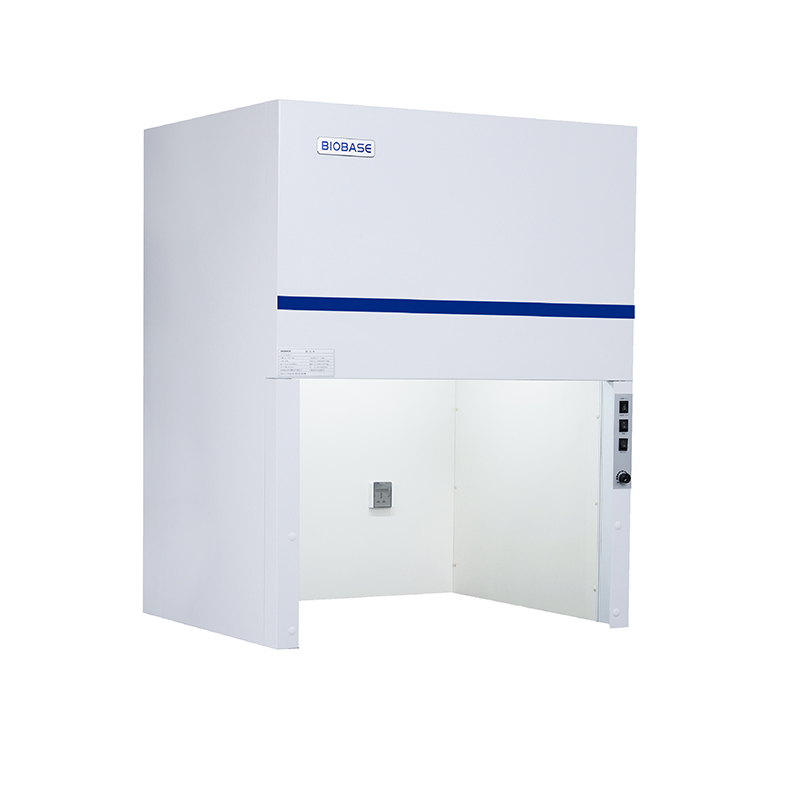

Ducted Fume Hood

FH700(L) / FH1000(L) / FH1100(L) / FH1200(L) / FH1300(L) / FH1500(L) / FH1800(L)

Fume hood is used to protect the lab environment and operator during general chemical applications. It actively protects operator from inhaling toxic vapors and dramatically reduces the risk of fire and explosion.

Key features

Ducted or filtered vapour extraction
Operator protection
Materials suited to chemical agents

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Socket
Fan
LED lamp
5 m PVC duct
5m PVC duct
Base cabinet
Solid core physical and chemical board

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	FH700(L)	FH1000(L)	FH1100(L)	FH1200(L)	FH1300(L)	FH1500(L)	FH1800(L)
External Size(WDH)mm(Tabletop Type)	700 × 650 × 1260	1000 × 800 × 1260	1100 × 800 × 1260	1200 × 800 × 1260	1300 × 800 × 1260	1500 × 800 × 1260	1800 × 800 × 1260
External Size(WDH)mm(Integral Type)	700 × 650 × 2000	1000 × 800 × 2000	1100 × 800 × 2000	1200 × 800 × 2000	1300 × 800 × 2000	1500 × 800 × 2000	1800 × 800 × 2000
Internal Size(WDH)mm	580 × 570 × 835	880 × 720 × 835	980 × 720 × 835	1080 × 720 × 835	1180 × 720 × 835	1380 × 720 × 835	1680 × 720 × 835
Airflow Pattern	Common to all modelsNegative pressure exhaust
Max Opening	Common to all models500 mm
Air Velocity	Common to all models0.3–0.8m/s
System Exhaust Volume	420m³/h	630m³/h	700m³/h	770m³/h	840m³/h	980m³/h	1190m³/h
Noise	Common to all models≤68dB
LED Lamp	*4 W2**	8 W	12 W	12 W	12 W	12 W	16 W
Illumination	Common to all models≥300lx
Vibration	Common to all modelsAmplitude≤5 µm
Consumption	Common to all models400 W
Power Supply	Common to all modelsAC220V±10 %, 50/60 Hz; 110 V±10 %, 60 Hz
Exterior Material	Common to all modelsCold-rolled steel with anti-bacteria powder coating, electrostatic spraying
Interior Material	Common to all models5 mm compact laminate board
Optional Accessory(Integral Type)	Common to all modelsWater tap, g as tap, Water sink
Number of Users	1	1	1–2	1–2	1–2	1–2	2–3
Gross Weight(Tabletop Type)	85	124	135	146	153	174	198
Gross Weight(Integral Type)	110	160	169	179	190	211	236
Package Size(WDH)mm(Tabletop Type)	840 × 790 × 1460	1140 × 940 × 1460	1240 × 940 × 1460	1340 × 940 × 1460	1440 × 940 × 1460	1640 × 940 × 1460	1940 × 940 × 1460
Package Size(WDH)mm(Integral Type)	840 × 950 × 1460	1140 × 1100 × 1460	1240 × 1100 × 1460	1340 × 1100 × 1460	1440 × 1100 × 1460	1640 × 1100 × 1460	1940 × 1100 × 1460

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
