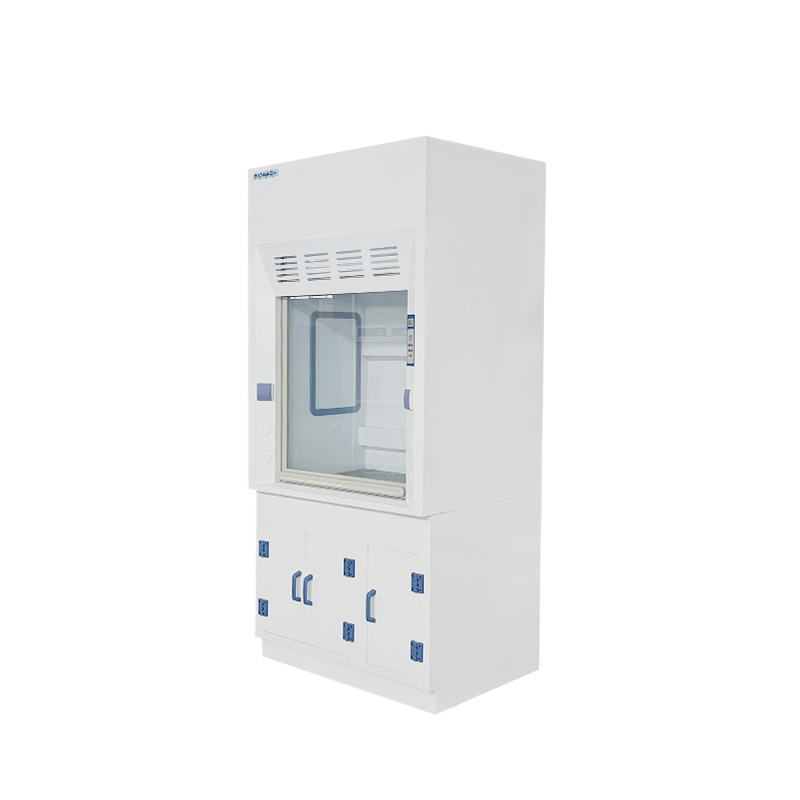

PP spray fume hood

FH1000PL / FH1200PL / FH1500PL / FH1800PL

This style fume hood is a custom-made fume hood for perchloric acid. The alkaline water neutralization and circulation system behind the deflector of the fume hood is the primary neutralization system, and its function is to ensure that high concentrations of perchloric acid residues do not accumulate in the fume hood, thereby causing chemical reactions such as combustion, explosion or a lot of heat.

Key features

Ducted or filtered vapour extraction
Operator protection
Materials suited to chemical agents

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

LED light
Work table: Chemical resistant phenolic resin
5 meters PVC duct (2 pcs of 5 meters PVC dust for FH1800(P) only)
Diameter: 250 mm
Pipe strap*2(4pcs for FH1800(P) only)
Base cabinet
PP centrifugal blower*1(2 for FH1800(P) only) Waterproof socket*2
Water tap(PP)
Gas tap(PP)
Water sink

Optional accessories

PP work table
Epoxy resin board or ceramic board
UV lamp
Electric glass door

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	FH1000PL	FH1200PL	FH1500PL	FH1800PL
External Size(WDH)	1047 × 800 × 2675 mm	1247 × 800 × 2675 mm	1547 × 800 × 2675 mm	1847 × 800 × 2675 mm
Internal Size(WDH)	787 × 470 × 700 mm	987 × 470 × 700 mm	1287 × 470 × 700 mm	1587 × 470 × 700 mm
Work Surface Height	Common to all models820 mm
Max. Opening	Common to all models740 mm
Material	Common to all modelsMain Body: Made of Porcelain white PP, thickness 8 mm, resistant to strong acid, alkali and anti-corrosion Work Table: Solid core physical and chemical board
Airflow Velocity	Common to all models0.3–0.8m/s
Exhaust volume	560m³/h	700m³/h	920m³/h	1130m³/h
Consumption	400 W+370 W(Pump)	400 W+370 W(Pump)	500 W+370 W(Pump)	700 W+370 W(Pump)
Waterproof Socket	Common to all modelsTwo, total load≤500 W
Noise	Common to all models≤68dB(A)
Illumination	Common to all models≥400lx
LED Lamp	24 W	24 W	30 W	38 W
Blower	Common to all modelsBuilt-in PP centrifugal blower(2 blowers for FH1800(P) only); Speed adjustable; 300 W
Front Window	Common to all modelsResistant to acid and alkali, Manual, 5 mm toughened glass, height adjustable
Operators	1–2	1–2	2–3	2–3
Standard Accessory	Common to all modelsLED light; Work table: Chemical resistant phenolic resin; 5 meters PVC duct (2 pcs of 5 meters PVC dust for FH1800(P) only), Diameter: 250 mm; Pipe strap2(4pcs for FH1800(P) only); Base cabinet; PP centrifugal blower1(2 for FH1800(P) only) Waterproof socket*2; Water tap(PP); Gas tap(PP); Water sink
Optional Accessory	Common to all modelsPP work table, epoxy resin board or ceramic board; UV lamp; Electric glass door
Power Supply	Common to all models220 V, 50/60 Hz(Standard); 110 V, 60 Hz(Optional)
Package Size(WDH)	Main Body: 1188 × 938 × 1690 mm Base Cabinet: 1188 × 888 × 1000 mm	Main Body: 1388 × 938 × 1690 mm Base Cabinet: 1388 × 888 × 1000 mm	Main Body: 1688 × 938 × 1690 mm Base Cabinet: 1688 × 888 × 1000 mm	Main Body: 1988 × 938 × 1690 mm Base Cabinet: 1988 × 888 × 1000 mm
Gross Weight	137 kg · 90 kg	155 kg · 100 kg	180 kg · 115 kg	206 kg 140 kg
