Included accessories
- Ice scoop*1
- Water inlet hose*1
- Drain hose*1
- Spare sealing washer*1
Photography and technical data supplied by: BIOBASE · 3 images.
Cold storage

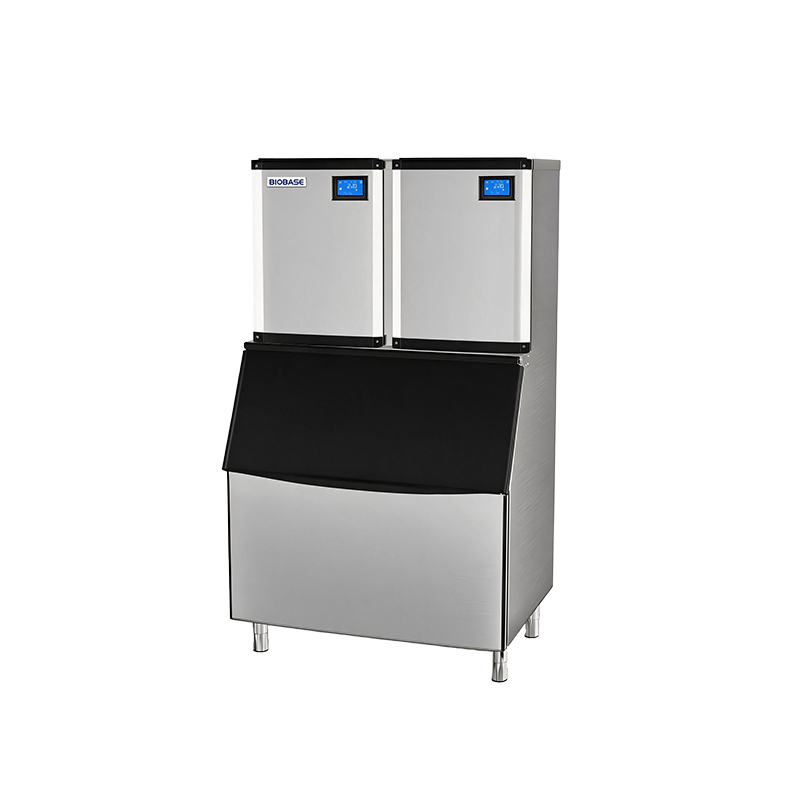

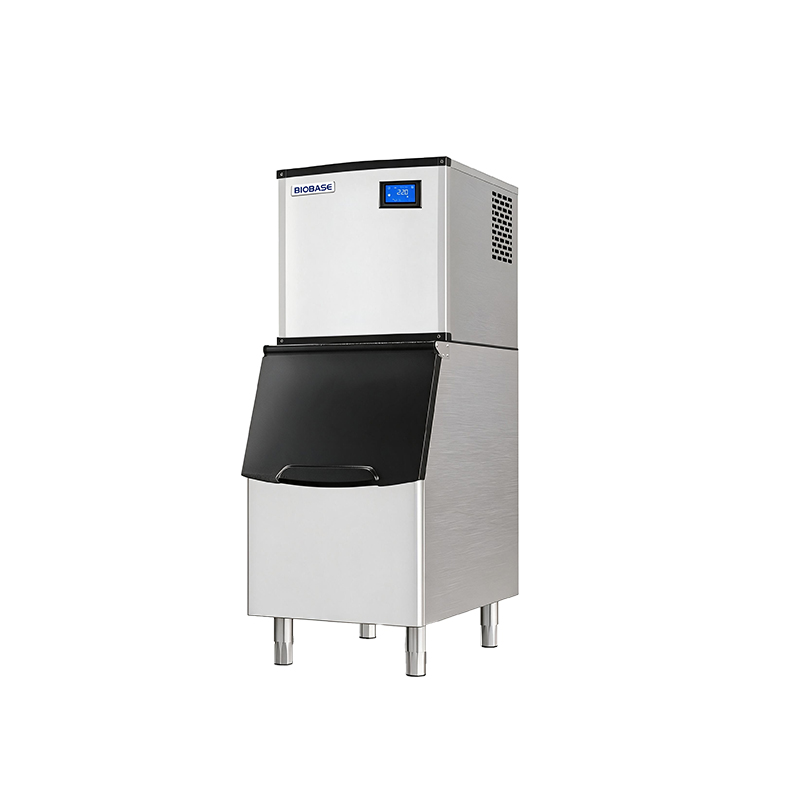

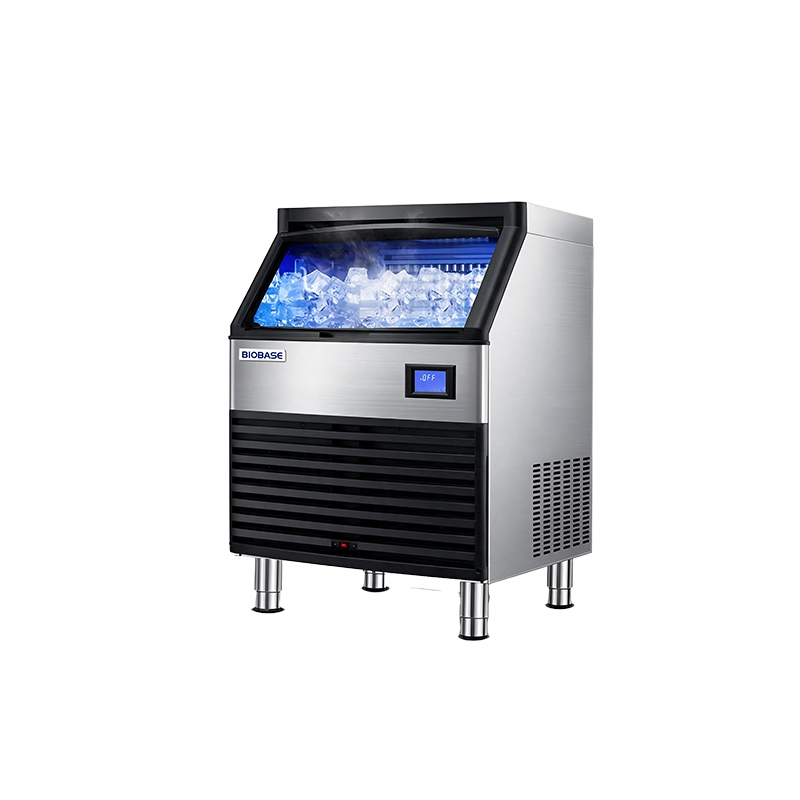

Cube Ice Machine 60kg 220kg 550kg
CIM-150 / CIM-200 / CIM-300 / CIM-800
The Cube Ice Machine is a high-efficiency commercial-grade appliance designed to produce crystal-clear, hard cube ice for use in laboratories, healthcare facilities.
Key features
- Monitored temperature
- Alarms and sample protection
- Capacity matched to inventory
Made to orderPrice on request
- Manufacturer
- BIOBASE
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.
01 / Accessories
Available accessories
Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.
02 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | CIM-150 | CIM-200 | CIM-300 | CIM-800 |
|---|---|---|---|---|
| Ice Making Capacity(kg/24h) | 150 | 200 | 300 | 800 |
| Max. Ice Storage Capacity | 60 kg | 60 kg | 220 kg | 550 kg |
| Ice Shape | ||||
| Way of Condensation | Air-cooling | Air-cooling | Air-cooling | Water-cooling |
| Ambient Temperature | ||||
| Compressor | Panasonic Wanbao | Panasonic Wanbao | Panasonic Wanbao | GMCC |
| Refrigerant | R290, 0.7 kg | R290, 0.8 kg | R290, 0.95 kg | R290, 1.1 kg |
| Standard Accessory | ||||
| Consumption | 720 W | 720 W | 1200 W | 3200 W |
| Power Supply | ||||
| External Size(W*D*H) | 600 × 670 × 965 mm | 600 × 670 × 965 mm | 590 × 830 × 1580 mm | 1220 × 910 × 1840 mm |
| Package Size(W*D*H) | 740 × 720 × 930 mm | 740 × 720 × 930 mm | Main machine: 610 × 730 × 680 mm Ice storage bin: 610 × 930 × 970 mm | Main machine: 1270 × 690 × 690 mm Ice storage bin: 1270 × 960 × 1200 mm |
| Net Weight | 65 kg | 65 kg | 80 kg | 210 kg |
| Gross Weight | 70 kg | 70 kg | 87 kg | 230 kg |
MADE-TO-ORDER SUPPLY
Do you need this equipment?
Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
