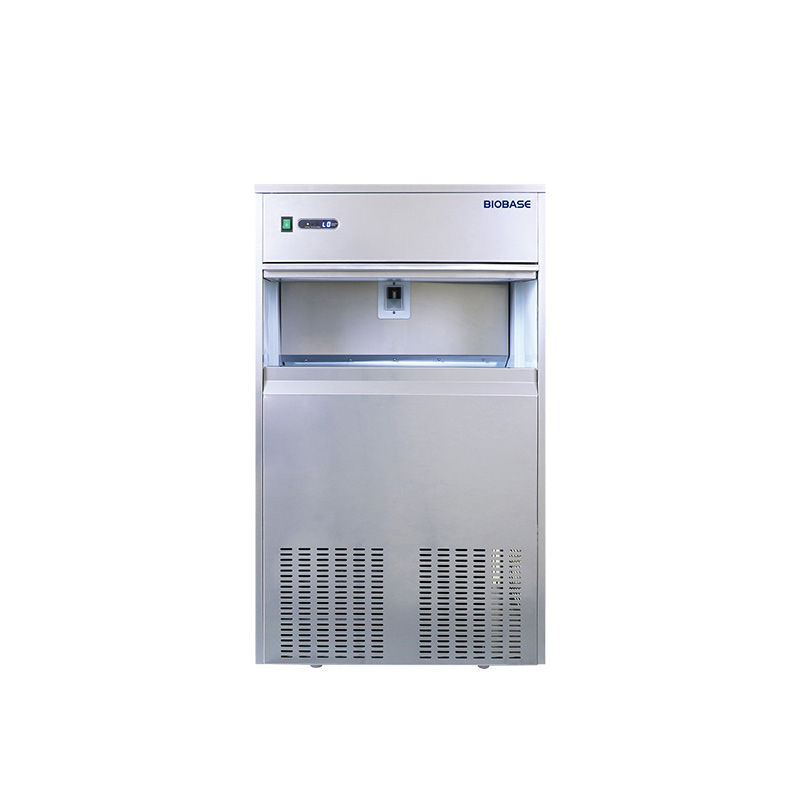

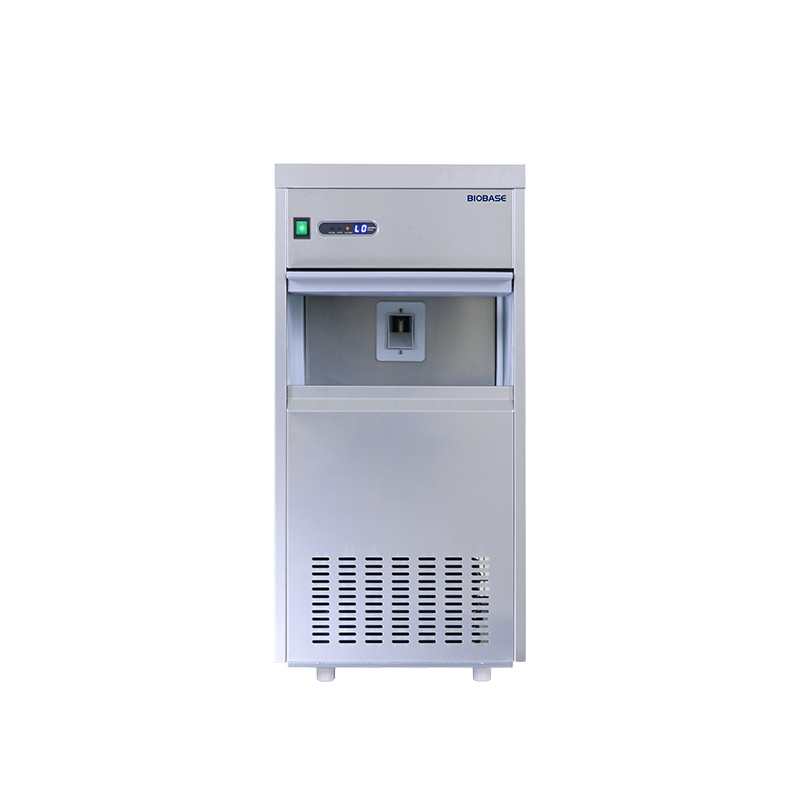

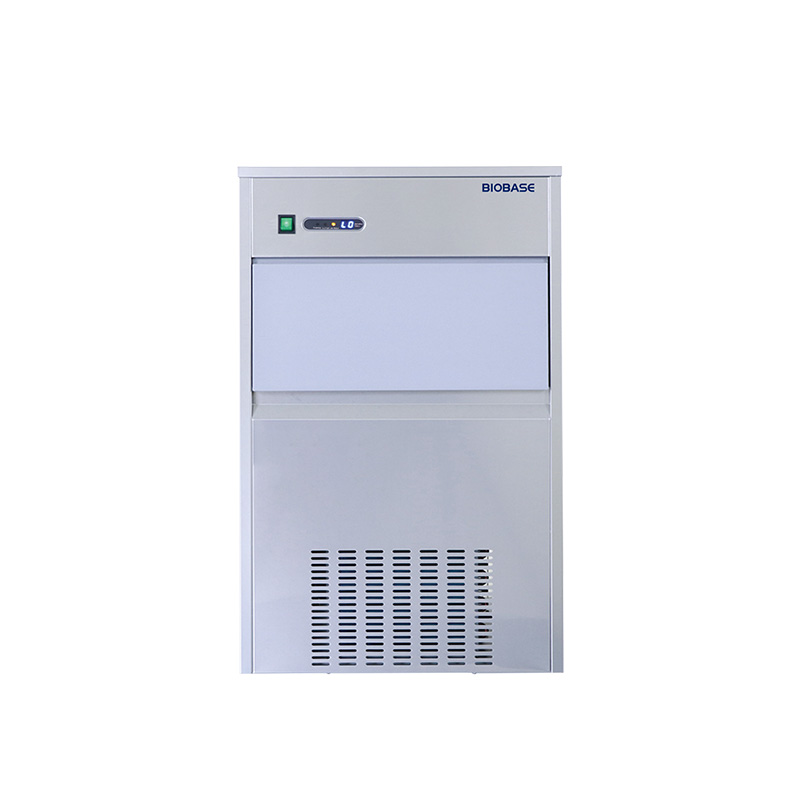

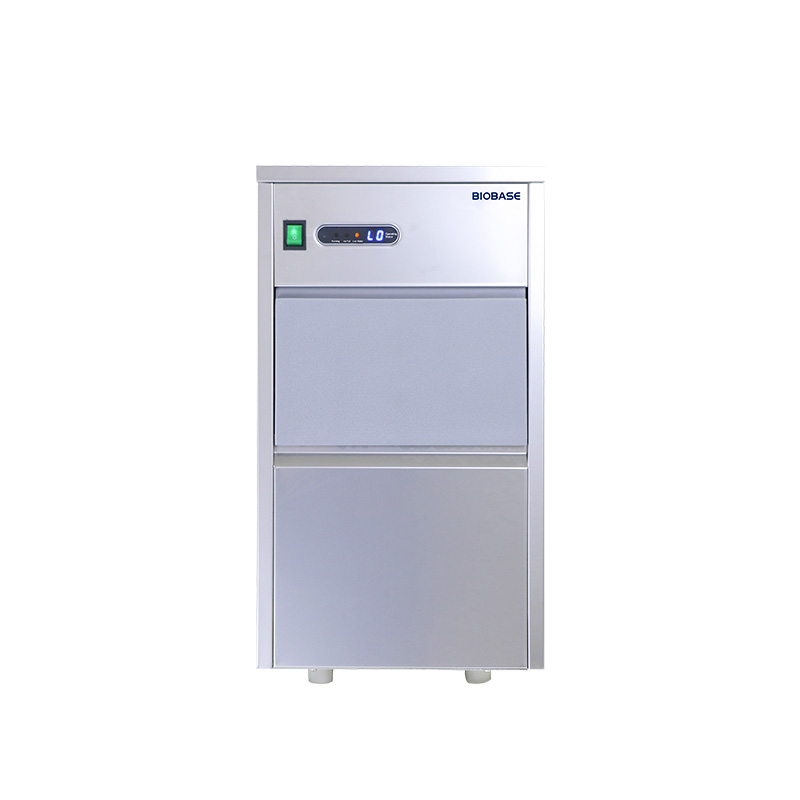

Flake Ice Maker FIM

FIM20 / FIM30 / FIM40 / FIM50 / FIM60 / FIM70 / FIM85 / FIM100 / FIM120 / FIM150 / FIM200 / FIM250

Flake ice is known for its rapid cooling properties, flexibility, and ability to mold around products, making it suitable for preserving perishable items and maintaining stable temperatures. This machine is built for efficiency, reliability, and ease of use, providing an essential tool for businesses requiring consistent and high-quality ice production.

Key features

Monitored temperature
Alarms and sample protection
Capacity matched to inventory

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Included accessories

Water inlet pipe*1
Drainage pipe*1
Ice spoon*1

Optional accessories

Filter

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	FIM20	FIM30	FIM40	FIM50	FIM60	FIM70	FIM85	FIM100	FIM120	FIM150	FIM200	FIM250
Ice Making Capacity(kg/24h)	20	30	40	50	60	70	85	100	120	150	200	250
Max. Ice Storage Capacity	10 kg	10 kg	15 kg	15 kg	25 kg	25 kg	25 kg	40 kg	40 kg	40 kg	60 kg	60 kg
Ice Shape	Common to all modelsSmall particle of irregular snow ice
Input Current	280 W	300 W	360 W	380 W	420 W	460 W	480 W	520 W	550 W	680 W	1040 W	1100 W
Way of Condensation	Common to all modelsAir cooling
Ambient Temperature	Common to all models10–35 °C
Water Temperature	Common to all models2–15 °C
Tank Shell	Common to all modelsStainless steel
Compressor	Donper	Donper	Panasonic Wanbao	Panasonic Wanbao	Panasonic Wanbao	Panasonic Wanbao	Panasonic Wanbao	Panasonic Wanbao	Donper	Donper	Donper	Panasonic Wanbao
Refrigerant	R290, 30 g	R290, 30 g	R290, 35 g	R290, 35 g	R290, 35 g	R290, 42 g	R290, 42 g	R290, 55 g	R290, 62 g	R290, 62 g	R290, 65 g	R290, 140 g
Standard Accessory	Common to all modelsWater inlet pipe1, drainage pipe1, ice spoon*1
Optional Accessory	Common to all modelsFilter
Power Supply	Common to all modelsAC220V, 50/60 Hz(Standard); 110 V, 60 Hz(Optional)
External Size(WDH)	330 × 470 × 605 mm	330 × 470 × 605 mm	400 × 543 × 700 mm	400 × 543 × 700 mm	400 × 510 × 845 mm	400 × 510 × 845 mm	400 × 510 × 845 mm	500 × 611 × 950 mm	500 × 611 × 950 mm	500 × 611 × 950 mm	680 × 740 × 1100 mm	680 × 740 × 1100 mm
Package Size(WDH)	460 × 595 × 740 mm	460 × 595 × 740 mm	520 × 665 × 845 mm	520 × 665 × 845 mm	520 × 630 × 995 mm	520 × 630 × 995 mm	520 × 630 × 995 mm	630 × 730 × 1110 mm	630 × 730 × 1110 mm	630 × 730 × 1110 mm	730 × 800 × 1270 mm	730 × 800 × 1270 mm
Net Weight	26 kg	26 kg	36 kg	36 kg	42 kg	42 kg	42 kg	58 kg	60 kg	60 kg	80 kg	80 kg
Gross Weight	42 kg	42 kg	55 kg	55 kg	62 kg	62 kg	62 kg	82 kg	82 kg	82 kg	105 kg	105 kg
Applicable Area	Common to all modelsVarious types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc.

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
