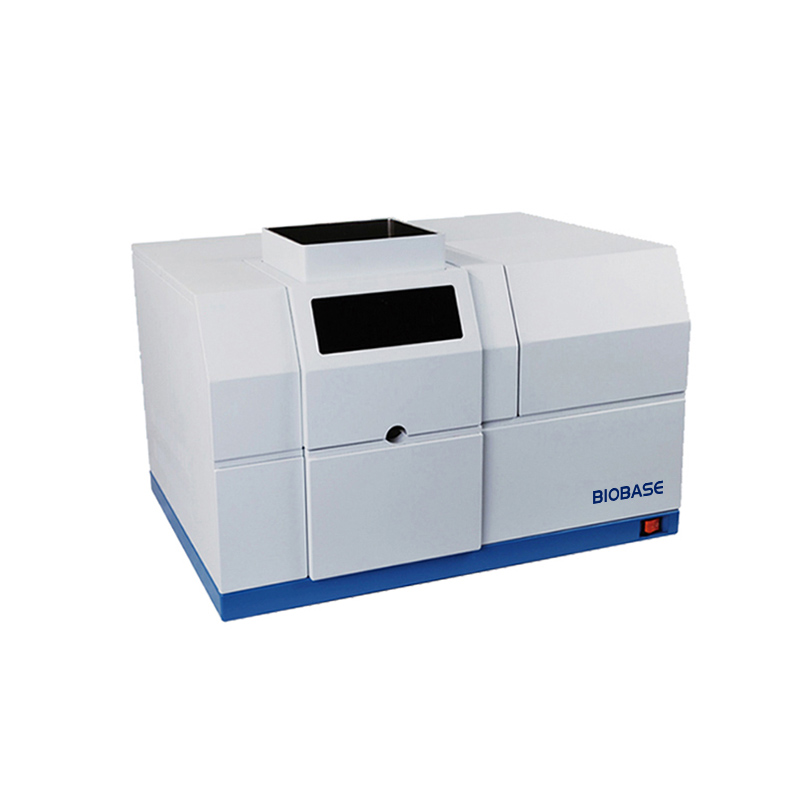

Atomic Absorption Spectrophotometer

BK-AA4530F

Atomic absorption spectrophotometer for detecting and quantifying metal elements in different sample types. It can use flame or graphite-furnace atomisation with lamps specific to the elements being analysed.

Key features

Controlled optical measurement
Configurations for different spectral ranges
R&D and quality-control applications

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Element-specific hollow-cathode lamps

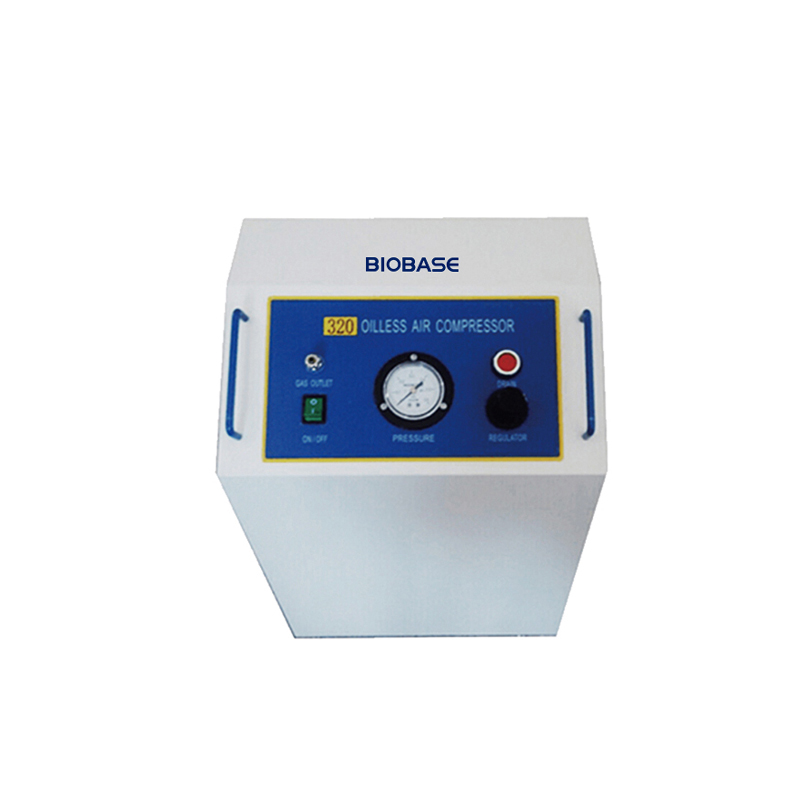

Oil-free air compressor
Optical or air filters

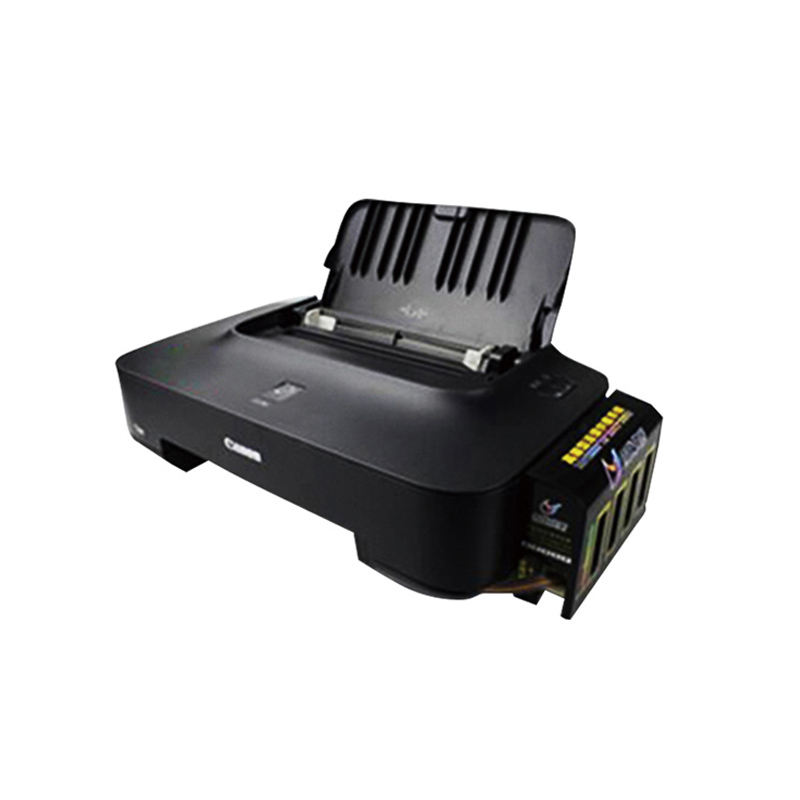

Printer

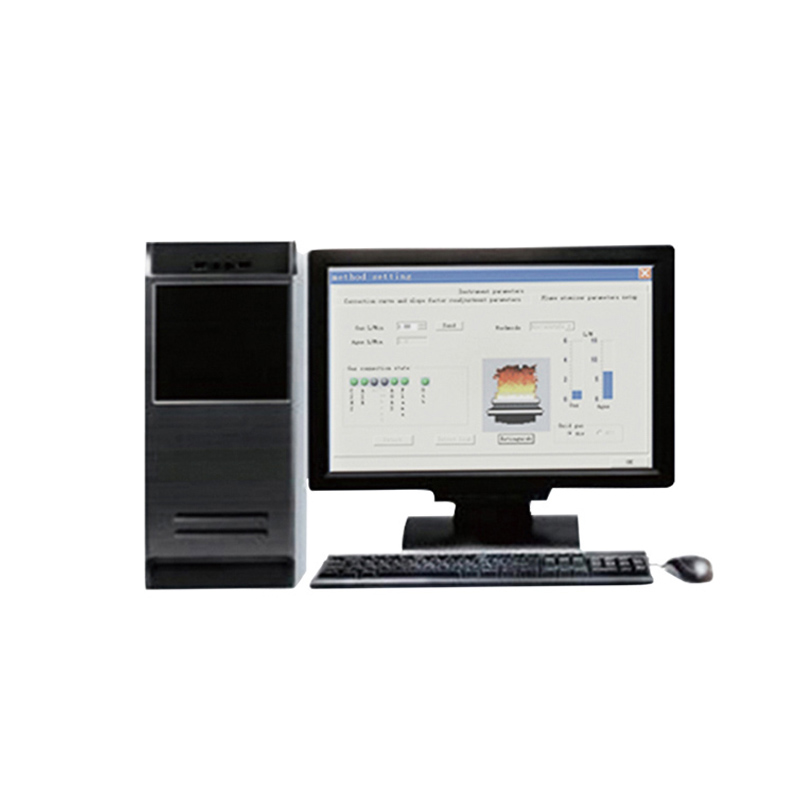

Compatible software

Optional accessories

Graphite furnace
Hydride generator
Recirculating cooling-water system
Autosampler
Graphite tubes

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-AA4530F
Wavelength Range	190–900 nm
Spectral Bandwidth	0.1, 0.2, 0.4, 1.0 and 2.0 nm
Wavelength Accuracy	≤±0.15 nm
Wavelength Repeatability	≤0.04 nm
Base Line Stability	≤0.002 A/30 min(Cu)
Characteristic Concentration	0.02 µg/ml/1 %(Cu)
Detection Limit	0.004 µg/ml(Cu)
Preciseness	≤0.5 %
Grating	1800 lines/mm
Inflamer	All-metal titanium burner
Atomizer	Effective glass atomizer
Lamp Stand	8
D2 background Calibration	When the background is 1 A, the background ability should be deducted not less than 50 times; Self absorption background deduction method
Power Supply	220 V, 50 Hz
Packing Size(WDH)mm	860 × 705 × 755(Main instrument); 545 × 445 × 1385(Accessories)
Gross Weight(kg)	105(Main instrument); 100(Accessories)
Acetylene Air Burner	100 mm
Ignition Dynamic Baseline Drift	≤0.006 A/30 min
Characteristic Concentration (2)	≤0.025 µg/ml/1 %(Cu)
Related Standard Deviation of the Accuracy	≤0.5 %(Cu, absorbance>0.8 A) (Detection limit Cu≤0.008 µg/ml)
Safety System	Can automatically cut off the gas when the pressure is not enough, the power is off, flameout and unconformity of the burner
Max. Temperature	3000 °C
Max Heating Speed	≥2000 °C/S
Characteristic Quantity	Cd≤0.5 × 10–12 g Cu≤0.5 × 10–11 g
Accuracy	Cu≤3 % Cd≤3 %
Safety System (2)	Over current protection, Low air pressure alarm/protection, Low cooling water flow alarm/protection
Consumption	7000 W
Packing Size(WDH)mm (2)	740 × 640 × 700
Gross Weight(kg) (2)	90

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
