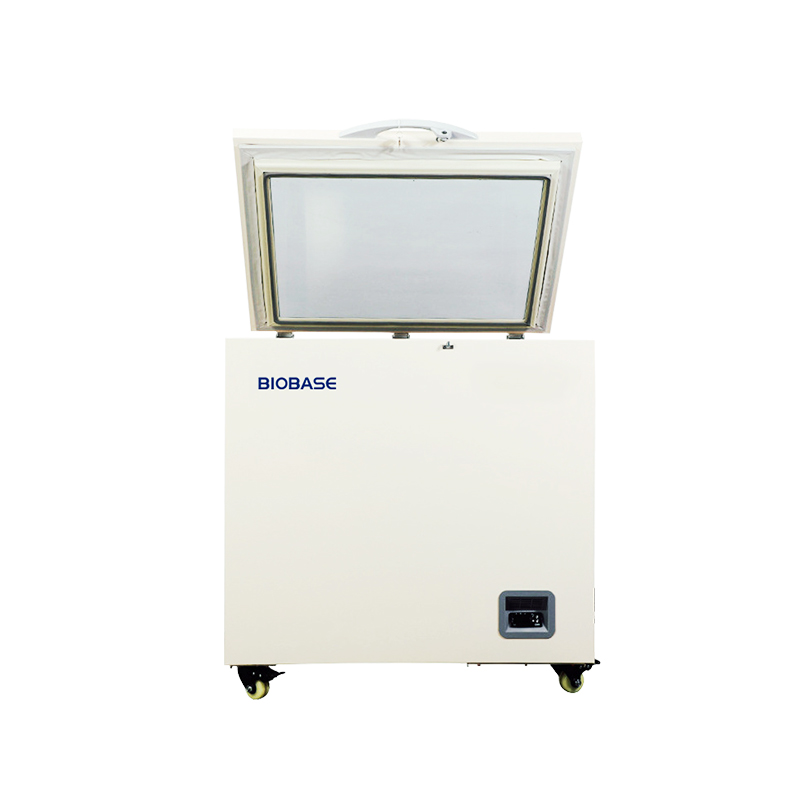

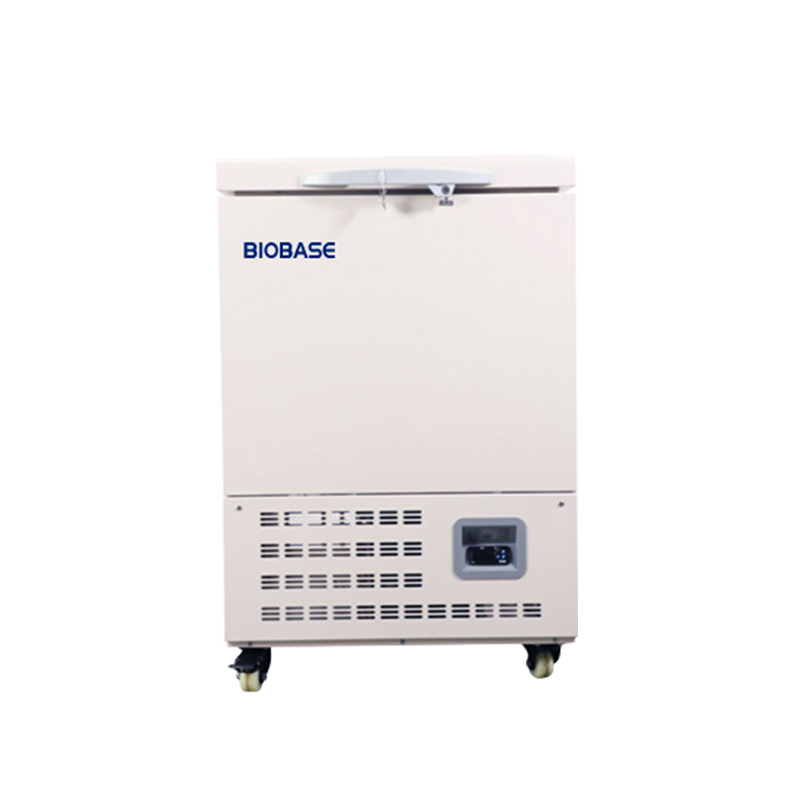

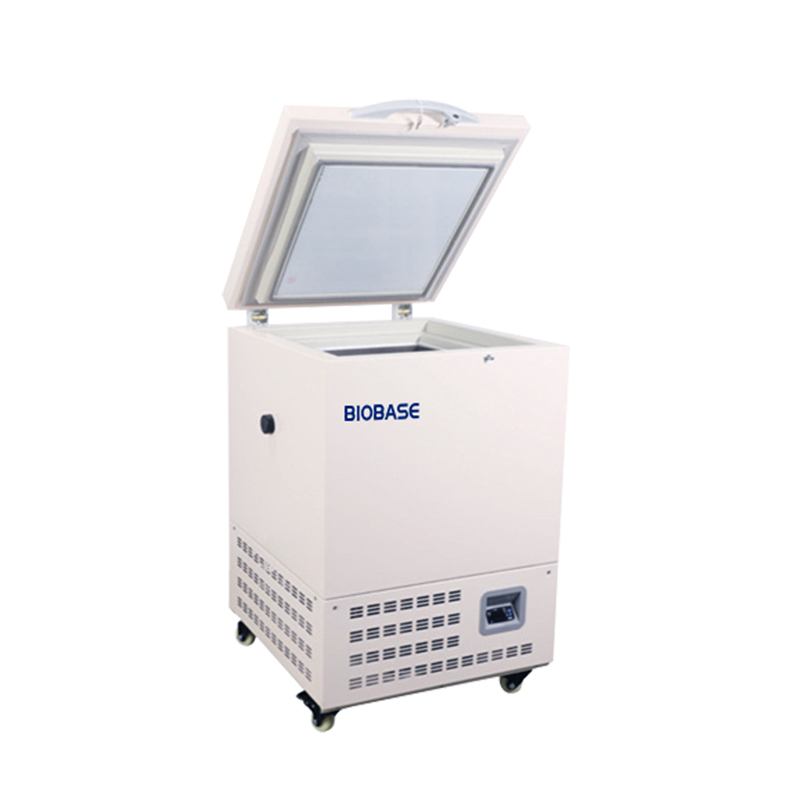

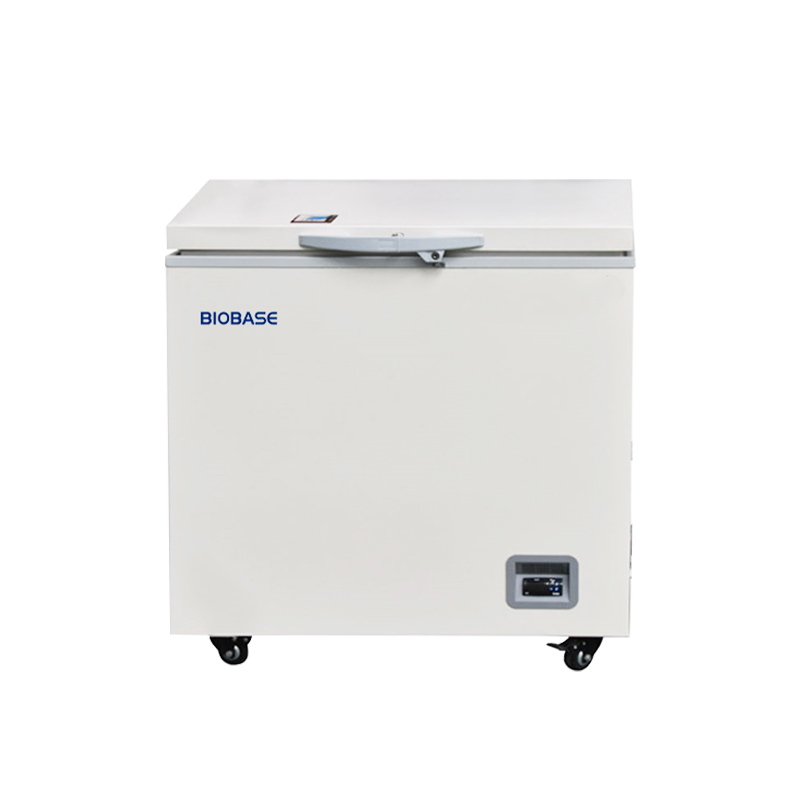

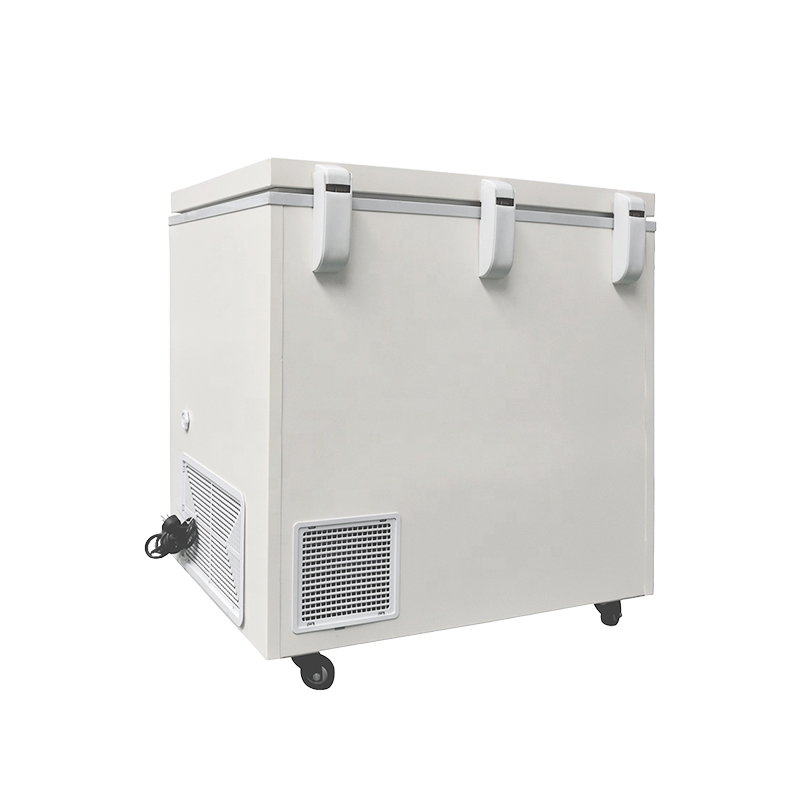

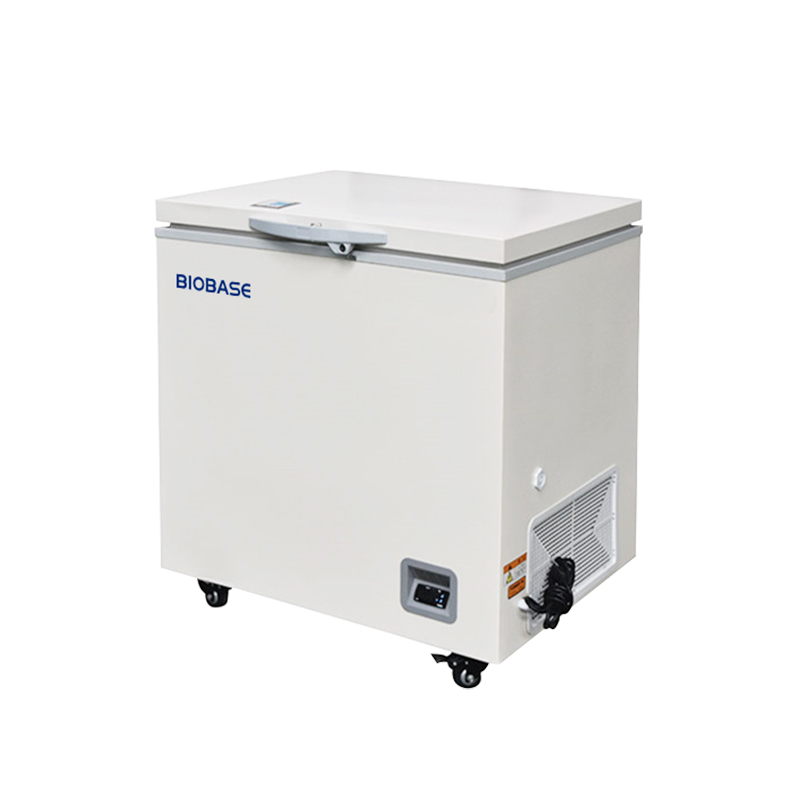

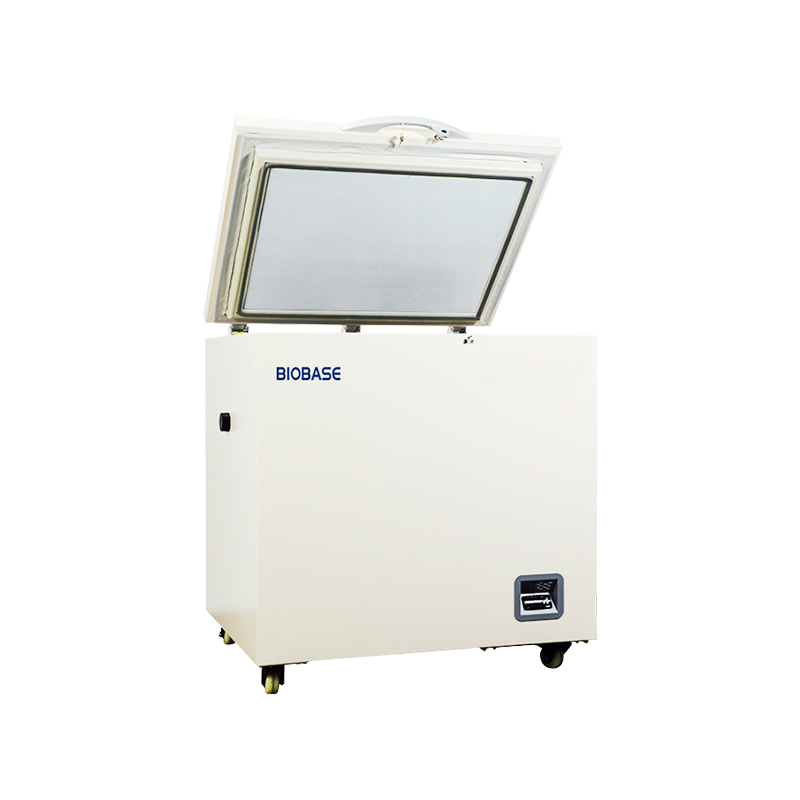

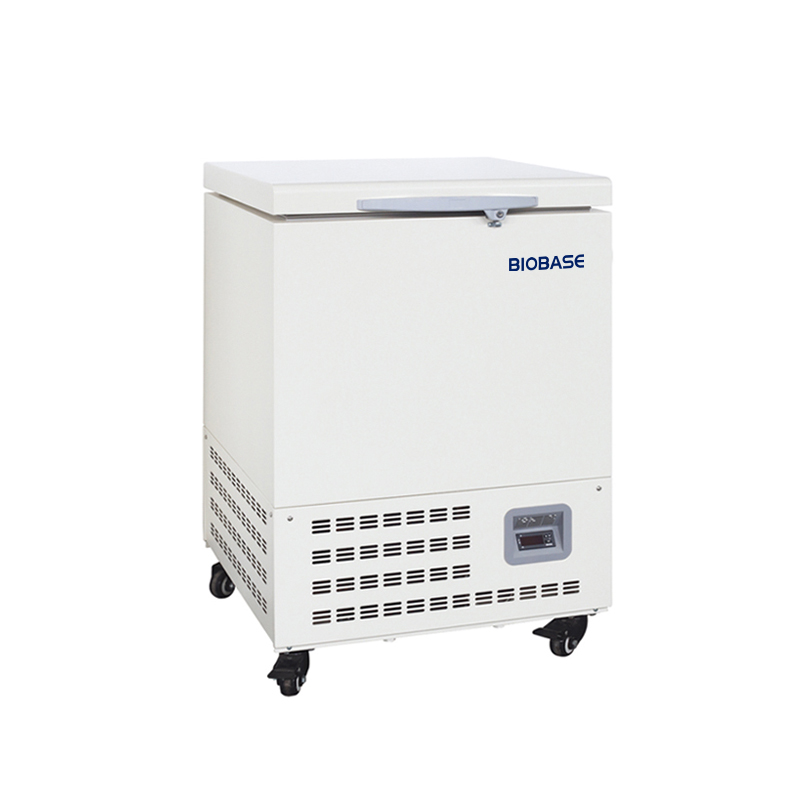

60℃ Horizontal Freezer 58L 120L 220L 320L 458L

BDF-60H58 / BDF-60H118A / BDF-60H218 / BDF-60H318 / BDF-60H458

Deep freezer manual series products are applied to places needing storage at constant temperature, such as hospitals, blood banks, scientific research institutions, colleges and universities, genetic engineering, entrepreneurs, etc. The storing temperature in the body can set by the temperature button on the control panel.

Key features

Monitored temperature
Alarms and sample protection
Capacity matched to inventory

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Test hole

Optional accessories

Temperature recorder

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BDF-60H58	BDF-60H118A	BDF-60H218	BDF-60H318	BDF-60H458
Capacity	58 L	120 L	220 L	320 L	458 L
Temp. Range	Common to all models-10~-60 °C
Temp. Accuracy	Common to all models0.1 °C
Temp. Uniformity	±2 °C	±2 °C	±2 °C	±2 °C	±4 °C
Temp. Stability	±2 °C	±2 °C	±2 °C	±2 °C	±4 °C
Control System	Common to all modelsMicroprocessor control
Display	Common to all modelsLED display
Alarm	Common to all modelsHigh / low temperature alarm, controller failure alarm
Refrigeration Type	Common to all modelsDirect-cooling
Refrigerant	R290/R170, 75 g	R290/R170, 85 g	R290/R170, 100 g	R290/R170, 110 g	R290/R170, 115 g
Compressor	Common to all modelsInternational famous brand compressor/1
Condenser&Evaporator	Common to all modelsCopper tube aluminum fin condenser; cabinet-wrapped copper tube evaporator
Defrost	Common to all modelsManual defrost
Construction	Common to all modelsPolyurethane cyclopentane foam
Material — Internal Material	Common to all models304 stainless steel
Material — External Material	Common to all modelsSprayed steel plate
Door	Common to all modelsOuter door: sprayed steel plate outer door*1 Interior door: /
Consumption	350 W	340 W	400 W	480 W	520 W
Power Supply	Common to all modelsAC220V, 50 Hz(Standard); 110/220 V, 60 Hz(Optional)
Casters	Common to all modelsYes
Shelf	Common to all models/
Standard Accessory	Common to all modelsTest hole
Optional Accessory	Common to all modelsTemperature recorder
Internal Size(WDH)	410 × 410 × 385 mm	696 × 470 × 385 mm	960 × 470 × 595 mm	1330 × 470 × 595 mm	1380 × 500 × 690 mm
External Size(WDH)	670 × 765 × 1025 mm	900 × 765 × 945 mm	1160 × 765 × 885 mm	1530 × 765 × 885 mm	2115 × 895 × 1095 mm
Package Size(WDH)	740 × 835 × 1195 mm	1020 × 830 × 1075 mm	1230 × 835 × 1055 mm	1600 × 835 × 1055 mm	2185 × 965 × 1260 mm
Net Weight	83 kg	88 kg	106 kg	126 kg	207 kg
Gross Weight	110 kg	128 kg	143 kg	170 kg	255 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
