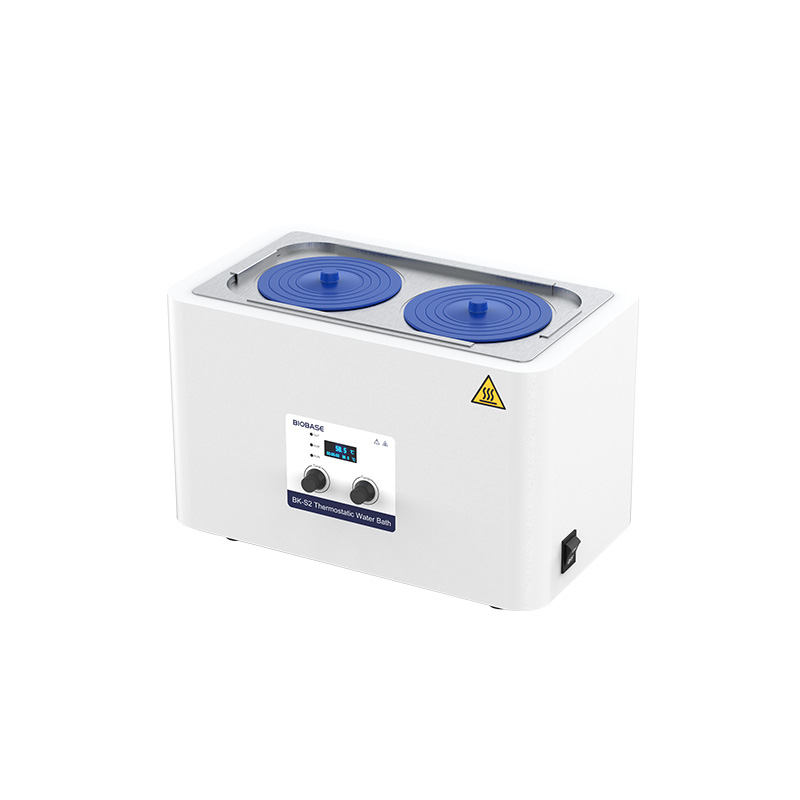

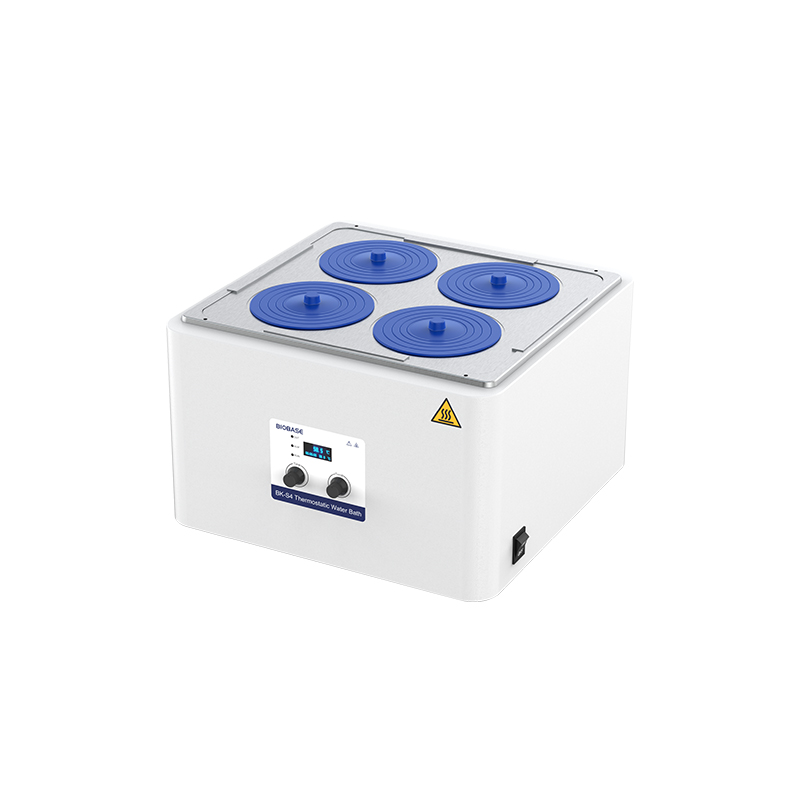

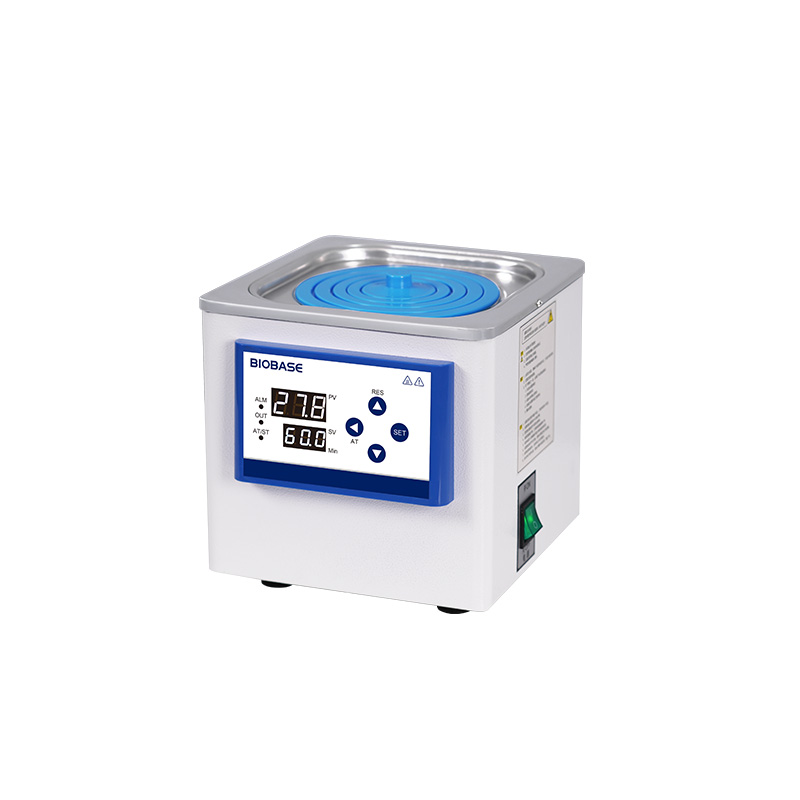

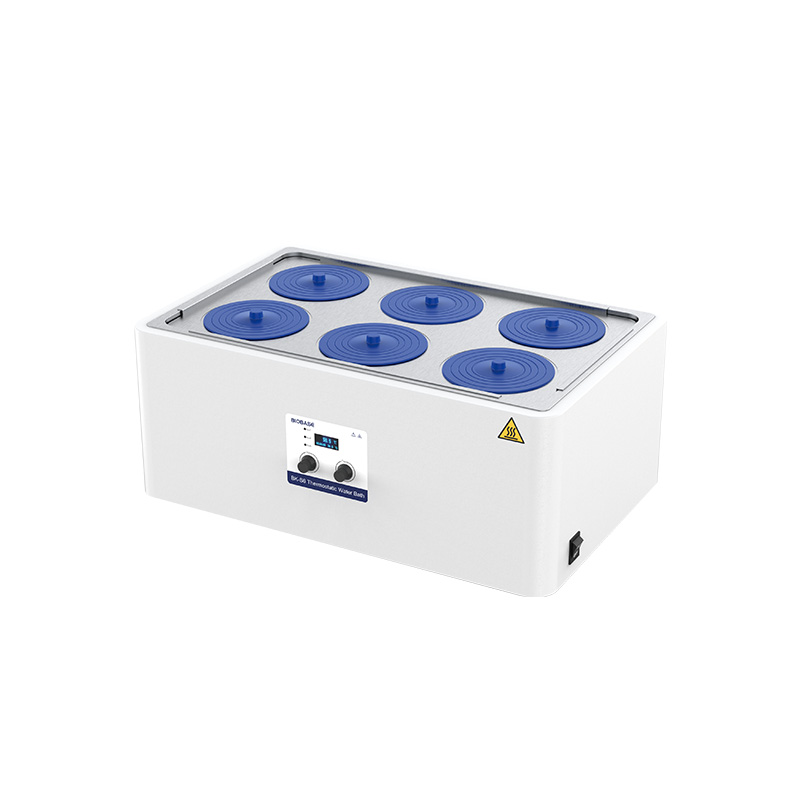

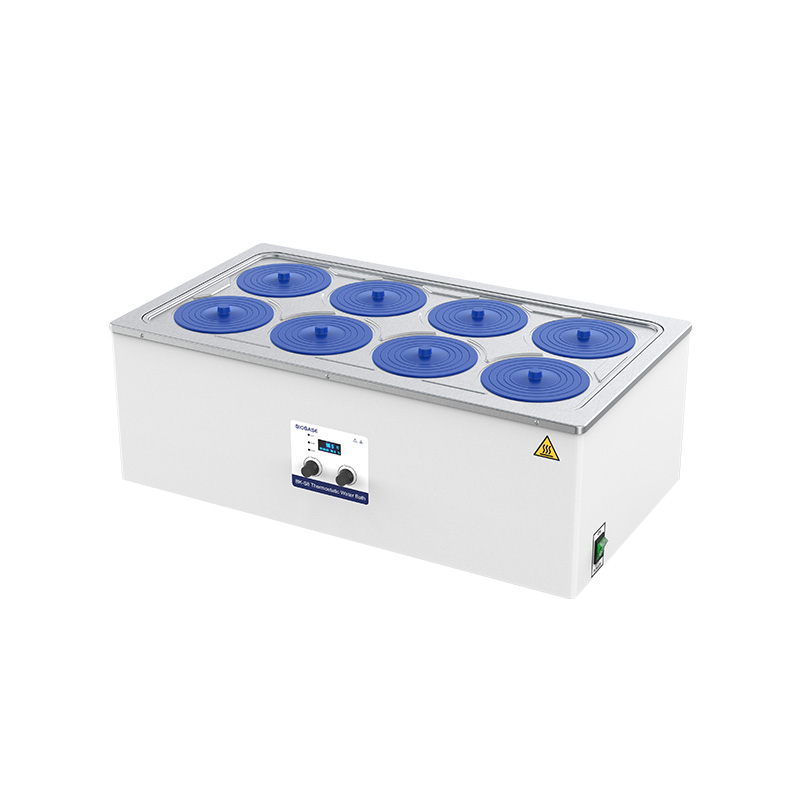

Thermostatic Water Bath 3L 5L 10L 20L 26L

BK-S1 / BK-S2 / BK-S4 / BK-S6 / BK-S8

Thermostatic Water Bath is used for incubating samples in water at a constant temperature over a long period of time, as well as for drying, concentrating, distilling chemical reagents. It is a necessary equipment for education and scientific research in biological, genetic, aquatic, environmental protection, health, biochemical laboratories and analysis rooms.

Key features

Programmable temperature
Uniform heating or cooling
Selectable capacities and accessories

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-S1	BK-S2	BK-S4	BK-S6	BK-S8
Capacity	3 L	5 L	10 L	20 L	26 L
Temp. Range	RT+5 °C~100 °C	RT~100 °C	RT~100 °C	RT~100 °C	RT~100 °C
Temp. Precision	Common to all models±0.5 °C
Temp. Fluctuation	≤±1 °C	±0.5 °C	±0.5 °C	±0.5 °C	±0.5 °C
Temp. Uniformity	Common to all models±0.5 °C
Timing Range	1–999 min	0–99h59min	0–99h59min	0–99h59min	0–99h59min
Display	LED Display	OLED Display	OLED Display	OLED Display	OLED Display
Anti-dry Protection	Common to all modelsStandard
Consumption	300 W	600 W	1000 W	1500 W	2000 W
Power Supply	Common to all modelsAC220V±10 %, 50/60 Hz(Standard); 110 V, 50/60 Hz(Optional)
Internal Size(LWH)	160 × 160 × 120 mm	300 × 150 × 150 mm	325 × 300 × 145 mm	505 × 300 × 150 mm	620 × 315 × 135 mm
External Size(LWH)	200 × 215 × 200 mm	383 × 236 × 259 mm	383 × 381 × 264 mm	568 × 376 × 259 mm	650 × 365 × 264 mm
Net Weight	2.3 kg	4.5 kg	6 kg	8 kg	10 kg
Package Size(LWH)	260 × 265 × 260 mm	444 × 294 × 324 mm	444 × 444 × 324 mm	634 × 444 × 324 mm	710 × 400 × 285 mm
Gross Weight	3 kg	4.7 kg	6.2 kg	8.5 kg	13 kg

Parameter	BK-S1	BK-S2	BK-S4	BK-S6	BK-S8
Max Number	Common to all modelsΦ13 mm*40 · / · 1 · 3 · 5 · 7
Max Number (2)	Common to all modelsΦ14 mm*40 · / · 1 · 3 · 5 · 6
Max Number (3)	Common to all modelsΦ16 mm*40 · / · 1 · 3 · 4 · 5
Max Number (4)	Common to all modelsΦ17 mm*40 · / · 1 · 3 · 4 · 5
Max Number (5)	Common to all modelsΦ19 mm*30 · / · 1 · 3 · 5 · 6
Max Number (6)	Common to all modelsΦ19 mm*40 · / · 1 · 2 · 4 · 5
Max Number (7)	Common to all modelsΦ19 mm*50 · / · 1 · 2 · 3 · 4
Max Number (8)	Common to all modelsΦ21 mm*12 · / · 1 · 4 · 7 · 8
Max Number (9)	Common to all modelsΦ21 mm*40 · / · 1 · 2 · 4 · 5
Max Number (10)	Common to all modelsΦ21 mm*50 · / · / · 2 · 3 · 4
Max Number (11)	Common to all modelsΦ23 mm*12 · / · 1 · 4 · 7 · 8
Max Number (12)	Common to all modelsΦ23 mm*40 · / · / · 2 · 2 · 4
Max Number (13)	Common to all modelsΦ25 mm*40 · / · / · / · 2 · 4
Max Number (14)	Common to all modelsΦ27 mm*12 · / · 1 · 3 · 6 · 7
Max Number (15)	Common to all modelsΦ27 mm*40 · / · / · / · 2 · 2
Max Number (16)	Common to all modelsΦ30 mm*12 · / · 1 · 3 · 5 · 6
Max Number (17)	Common to all modelsΦ30 mm*24 · / · 1 · 2 · 2 · 3
Max Number (18)	Common to all modelsΦ30 mm*40 · / · / · / · 1 · 1
Max Number (19)	Common to all modelsΦ32 mm*12 · / · 1 · 3 · 5 · 6
Max Number (20)	Common to all modelsΦ32 mm*24 · / · / · / · 2 · 2

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
