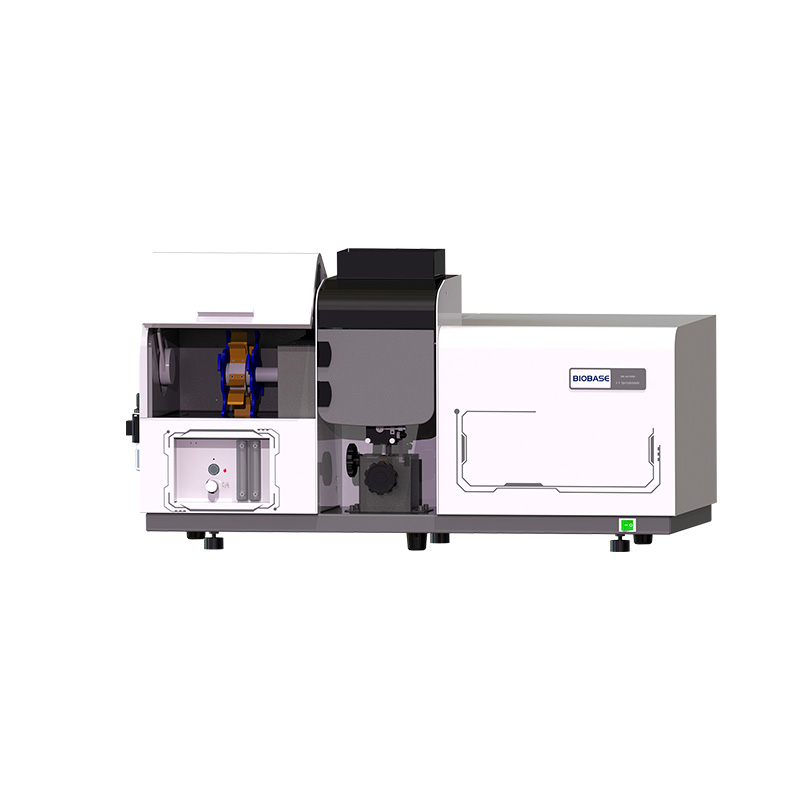

Atomic Absorption Spectrophotometer

BK-AA180B

Atomic absorption spectrophotometer for detecting and quantifying metal elements in different sample types. It can use flame or graphite-furnace atomisation with lamps specific to the elements being analysed.

Key features

Controlled optical measurement
Configurations for different spectral ranges
R&D and quality-control applications

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / Accessories

Available accessories

Included accessories

Element-specific hollow-cathode lamps
Compatible software

Optional accessories

Hydride generator
Oil-free air compressor
Atomiser or nebuliser
Burner and flame accessories
Audit-trail software
Printer
Computer

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-AA180B
Wavelength Range	170–900 nm
Spectral Bandwidth	0.1, 0.2, 0.4, 0.8, 1.6, 2.4 nm
Wavelength Accuracy	±0.1 nm
Wavelength Repeatability	≤0.05 nm
Detector	Photomultiplier tube detector
Baseline Stability	Drift ≤0.002Abs, noise ≤0.001Abs(Steady 30 min) Drift ≤0.002Abs, noise ≤0.001Abs(Dynamic 15 min)
Resolution	Spectral bandwidth deviation ≤0.02 nm Manganese double line valley to peak energy ratio ≤25 %
Characteristic Concentration	Flame method for Cu: ≤0.025 µg/mL/1 %
Detection Limit	Flame method for Cu: ≤0.002 µg/mL
Preciseness	Flame method for Cu: ≤0.3 %
Background Correction Ability	Deuterium lamp calibration 1.0Abs, background ≥90 times
Diffraction Grating	Groove 1800lines/mm, blaze wavelength 250 nm
Lamp Stand	8(Support simultaneous preheating of 1–4 lights)
Standard Accessory	*Element lamp(Cu1, Hg1), software working station*
Optional Accessory	Oxygen-enriched high-temperature flame, wide slit combustion head, adjustable nebulizer, hydride vapor generator, audit trailing software, oil-free air compressor, computer, printer
Power Supply	AC220V, 50/60 Hz; 110 V, 60 Hz(Standard)
External Size(WDH)	1080 × 480 × 560 mm
Package Size(WDH)	1220 × 670 × 840 mm
Net Weight	70 kg
Gross Weight	140 kg
Air-acetylene Burner	100 mm all-titanium burner
Atomization Chamber System	Integrally molded from polyphenylene sulfide
Burner System	Flame height is adjustable and lockable, with a 360° rotatable combustion seam
Gas Flow Control System	Automatic ignition/fame-out
Reading Mode	Foot pedal operation
Safety System	Emergency shutdown protection switch, automatic gas cut-off/shutdown/alarm in case of abnormal status, abnormal air pressure, ignition failure, gas leakage, abnormal flow rate, etc.
Smart Optimization	One-key operation for instrument optimization, supporting multi-task analysis
Repeat Measurement	1–99 replicates with auto-calculation of mean/SD/RSD
Print/Export Reports	Word/Excel supported
Auto-Calibration	Curve fitting, re-slope&concentration calculation, incl. standard addition method

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
