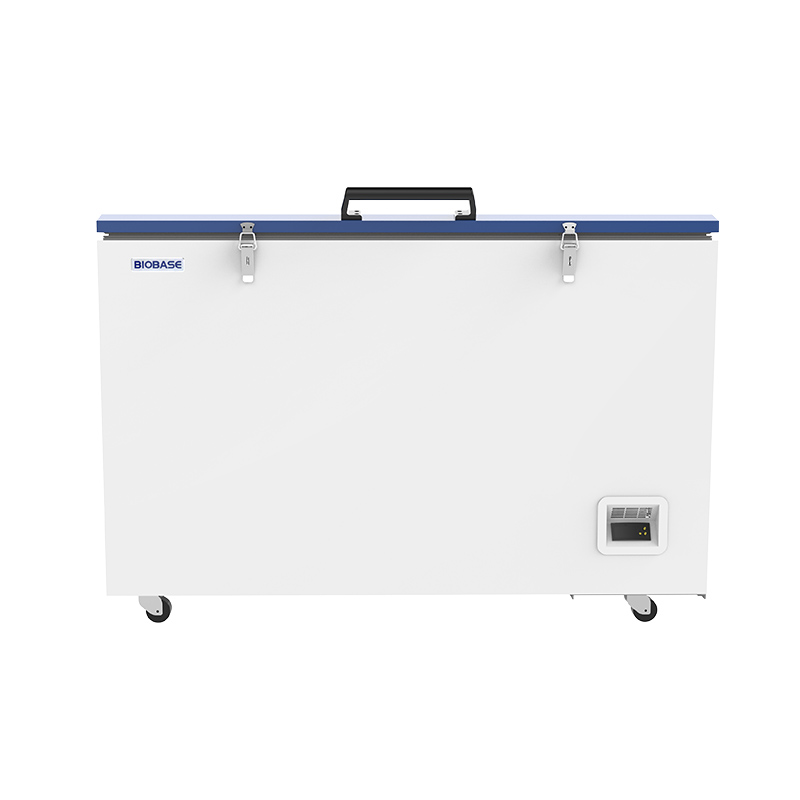

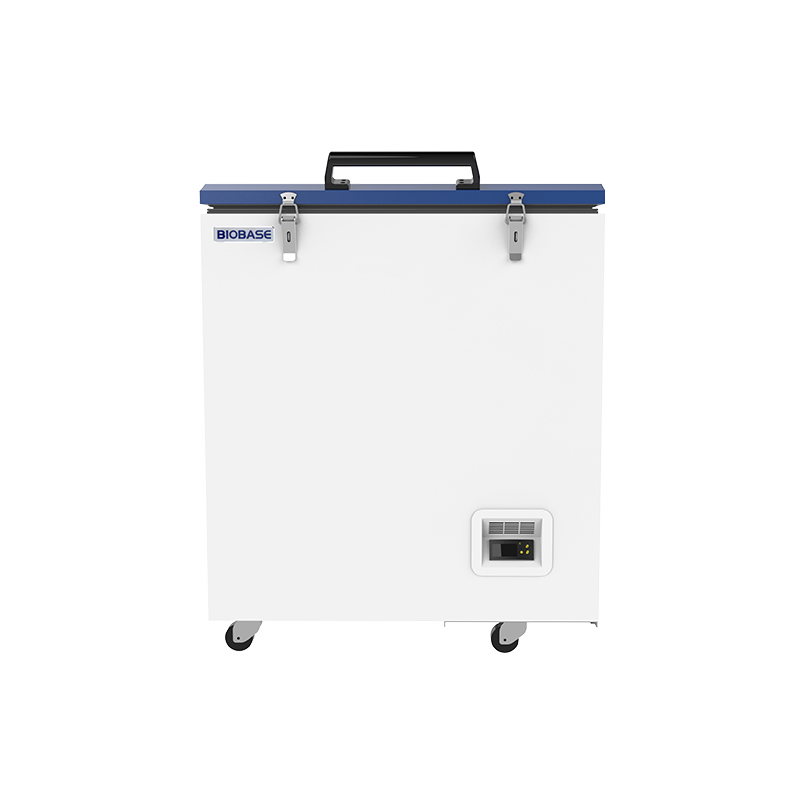

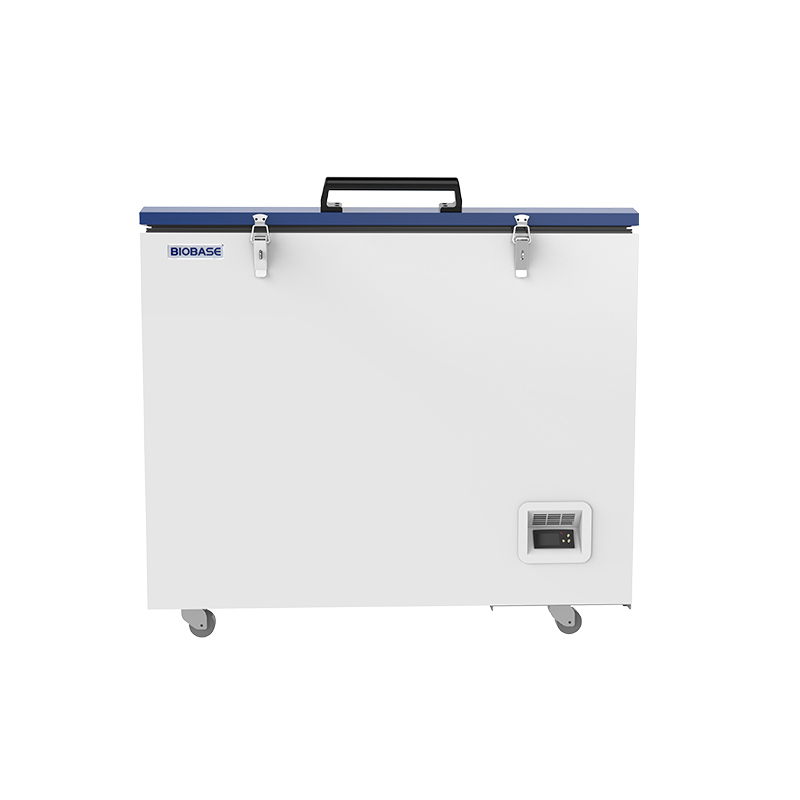

60℃ Horizontal Freezer 110L 210L 308L

BDF-60H110 / BDF-60H210 / BDF-60H310

Deep freezer manual series products are applied to places needing storage at constant temperature, such as hospitals, blood banks, scientific research institutions, colleges and universities, genetic engineering, entrepreneurs, etc. The storing temperature in the body can set by the temperature button on the control panel.

Key features

Monitored temperature
Alarms and sample protection
Capacity matched to inventory

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Included accessories

Test hole*1

Optional accessories

USB interface
RS485 interface
Temperature recorder

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BDF-60H110	BDF-60H210	BDF-60H310
Capacity	110 L	210 L	308 L
Temp. Range	Common to all models-10~-60 °C
Temp. Accuracy	Common to all models0.1 °C
Temp. Uniformity	Common to all models≤4 °C
Temp. Stability	Common to all models≤4 °C
Control System	Common to all modelsMicroprocessor control
Display	Common to all modelsLED display
Alarm	Common to all modelsHigh / low temperature alarm, power failure alarm(72 h), controller failure alarm
Refrigeration Type	Common to all modelsDirect-cooling
Refrigerant	R600a/R170, 95 g	R600a/R170, 165 g	R600a/R1150, 200 g
Compressor	Common to all modelsInternational famous brand compressor/1
Condenser & Evaporator	Common to all modelsMicrochannel condenser; built-in coil type copper tube evaporator
Defrost	Common to all modelsManual defrost
Construction	Common to all modelsPolyurethane cyclopentane foam
Material — Internal Material	Common to all models304 stainless steel
Material — External Material	Common to all modelsSprayed steel plate
Door	Common to all modelsOuter door: cyclopentane integral foam outer door*1 Inner door: /
Consumption	280 W	335 W	420 W
Power Supply	Common to all modelsAC 220 V, 50 Hz(Standard); 220 V, 60 Hz, 110 V, 60 Hz(Optional, external transformer)
Casters	Common to all modelsYes
Shelf	Common to all models/
Standard Accessory	Common to all modelsTest hole*1
Optional Accessory	Common to all modelsUSB interface, RS485 interface, temperature recorder
Internal Size (WDH)	520 × 460 × 600 mm	760 × 540 × 600 mm	1038 × 540 × 600 mm
External Size (WDH)	705 × 705 × 885 mm	945 × 785 × 885 mm	1225 × 790 × 885 mm
Package Size (WDH)	805 × 800 × 1015 mm	1045 × 880 × 1015 mm	1325 × 885 × 1015 mm
Net Weight	58 kg	68 kg	76 kg
Gross Weight	73 kg	88 kg	101 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
