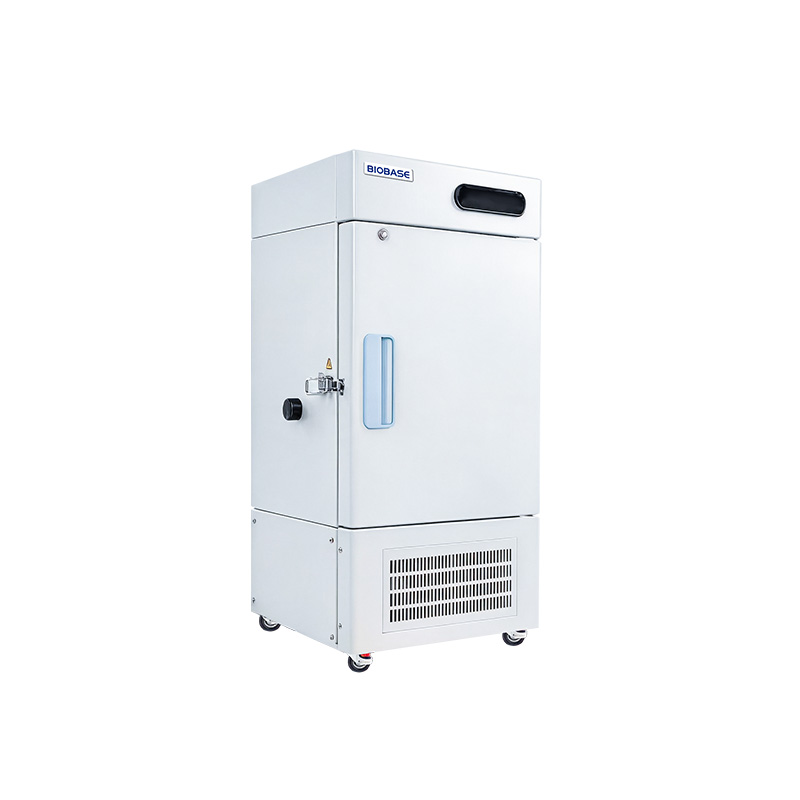

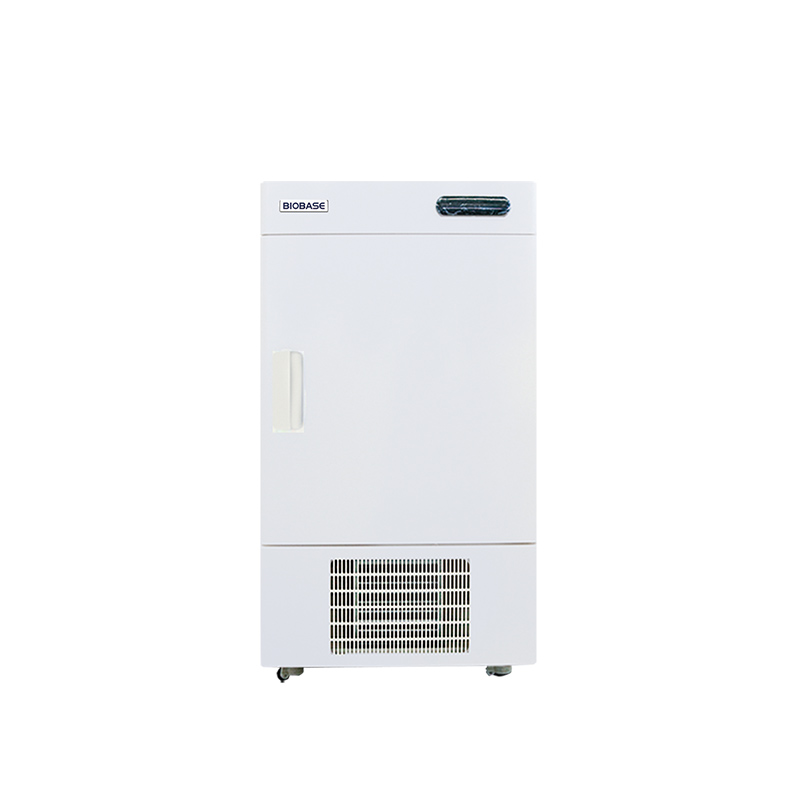

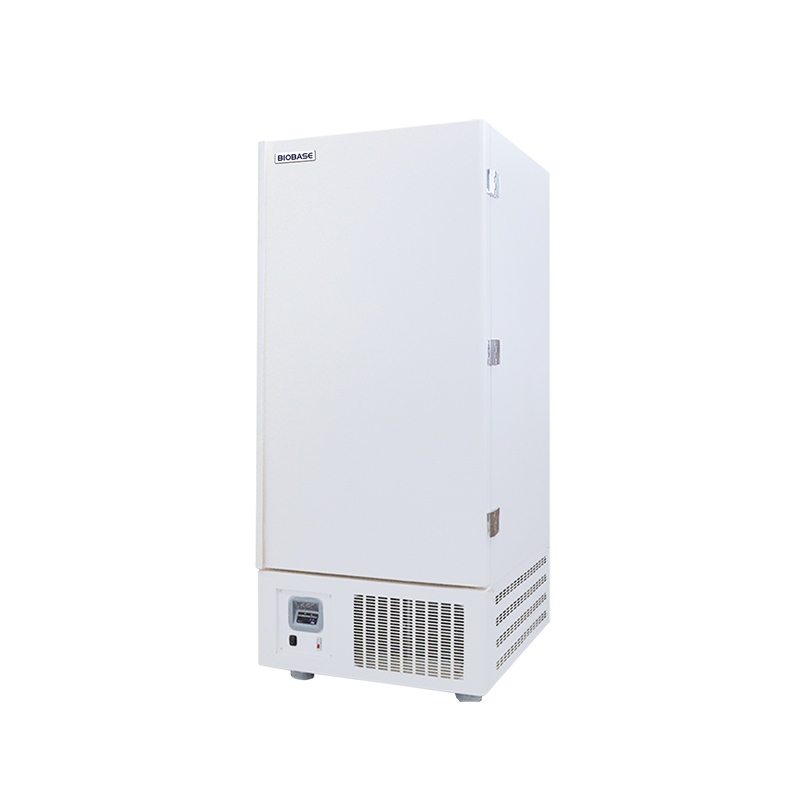

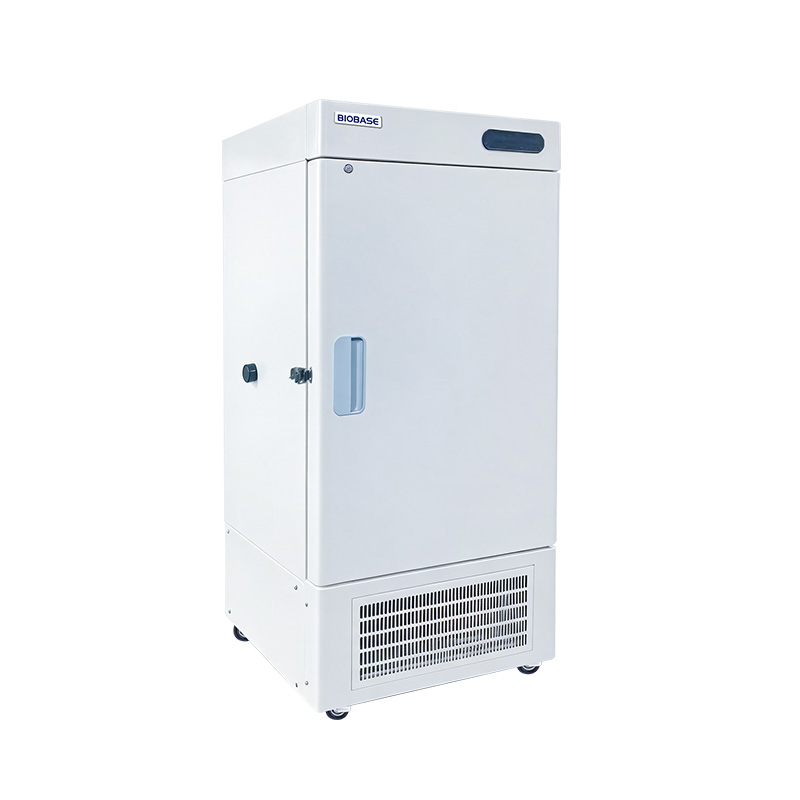

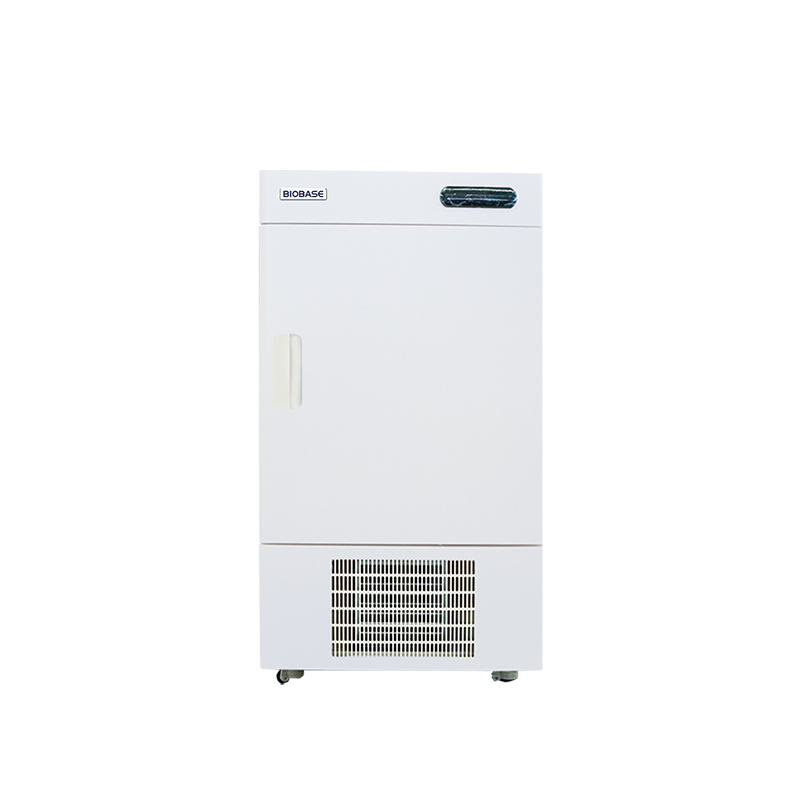

60℃ Freezer

BDF-60V30 / BDF-60V58 / BDF-60V108 / BDF-60V158 / BDF-60V398

Suitable for ultra-low temperature experiments in scientific research institutions, special materials, electronics industry, chemical industry, university experiments, biotechnology, offshore fishing, etc.

Key features

Monitored temperature
Alarms and sample protection
Capacity matched to inventory

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Accessories

Available accessories

Included accessories

Test hole

Optional accessories

Temperature recorder

Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BDF-60V30	BDF-60V58	BDF-60V108	BDF-60V158	BDF-60V398
Capacity	28 L	58 L	108 L	158 L	408 L
Temp. Range	Common to all models-25~-60 °C
Temp. Accuracy	Common to all models0.1 °C
Temp. Uniformity	Common to all models±2 °C
Temp. Stability	Common to all models±2 °C
Control System	Common to all modelsMicroprocessor control
Display	Common to all modelsLED display
Alarm	Common to all modelsHigh / low temperature alarm, controller failure alarm
Refrigeration Type	Common to all modelsDirect-cooling
Refrigerant	R290/R170, 75 g	R290/R170, 85 g	R290/R170, 95 g	R290/R170, 102 g	R290/R170, 120 g
Compressor	Common to all modelsInternational famous brand compressor /1
Condenser & Evaporator	Common to all modelsCopper tube aluminum fin condenser; cabinet-wrapped copper tube evaporator
Defrost	Common to all modelsManual defrost
Construction	Common to all modelsPolyurethane cyclopentane foam
Material — Internal Material	Common to all models304 stainless steel
Material — External Material	Common to all modelsSprayed steel plate
Door	*Outer door: sprayed steel plate outer door1 Interior door: 304 stainless steel door1*	*Outer door: sprayed steel plate outer door1 Interior door: 304 stainless steel door1*	*Outer door: sprayed steel plate outer door1 Interior door: 304 stainless steel door1*	*Outer door: sprayed steel plate outer door1 Interior door: 304 stainless steel door2*	*Outer door: sprayed steel plate outer door1 Interior door: 304 stainless steel door4*
Consumption	370 W	380 W	400 W	450 W	800 W
Power Supply	Common to all modelsAC 220 V, 50 Hz(Standard); 110/220 V, 60 Hz(Optional)
Casters	Common to all modelsYes
Shelf	1	1	1	1	3
Standard Accessory	Common to all modelsTest hole
Optional Accessory	Common to all modelsTemperature recorder
Internal Size (WDH)	270 × 265 × 400 mm	364 × 405 × 410 mm	460 × 460 × 510 mm	460 × 455 × 800 mm	610 × 615 × 1120 mm
External Size (WDH)	505 × 520 × 1165 mm	540 × 620 × 1115 mm	700 × 730 × 1260 mm	700 × 700 × 1580 mm	850 × 900 × 1780 mm
Package Size (WDH)	535 × 575 × 1290 mm	670 × 760 × 1290 mm	765 × 815 × 1395 mm	760 × 790 × 1720 mm	980 × 980 × 1930 mm
Net Weight	71 kg	78 kg	107 kg	123 kg	188 kg
Gross Weight	90 kg	98 kg	133 kg	150 kg	238 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
