Included accessories
- Test hole
- USB interface
Photography and technical data supplied by: BIOBASE · 4 images.
Cold storage
25℃ freezer 100L 270L 350L 936L

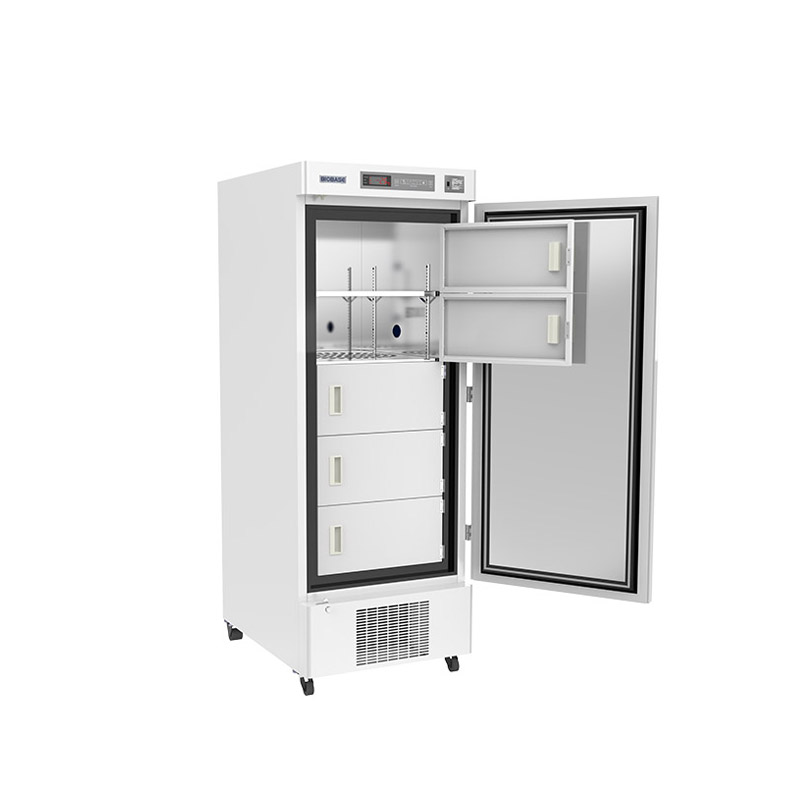

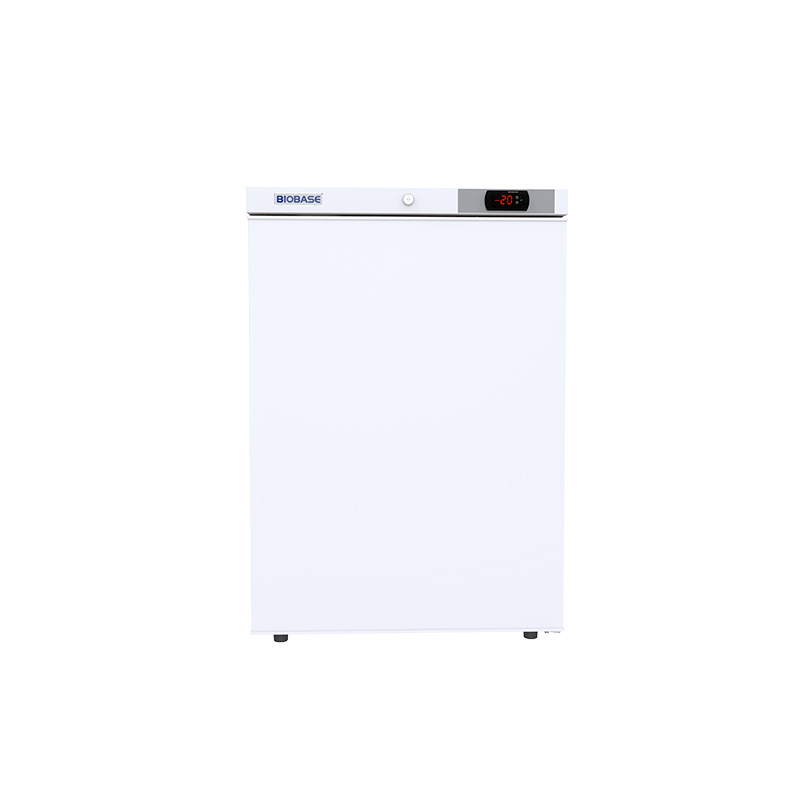

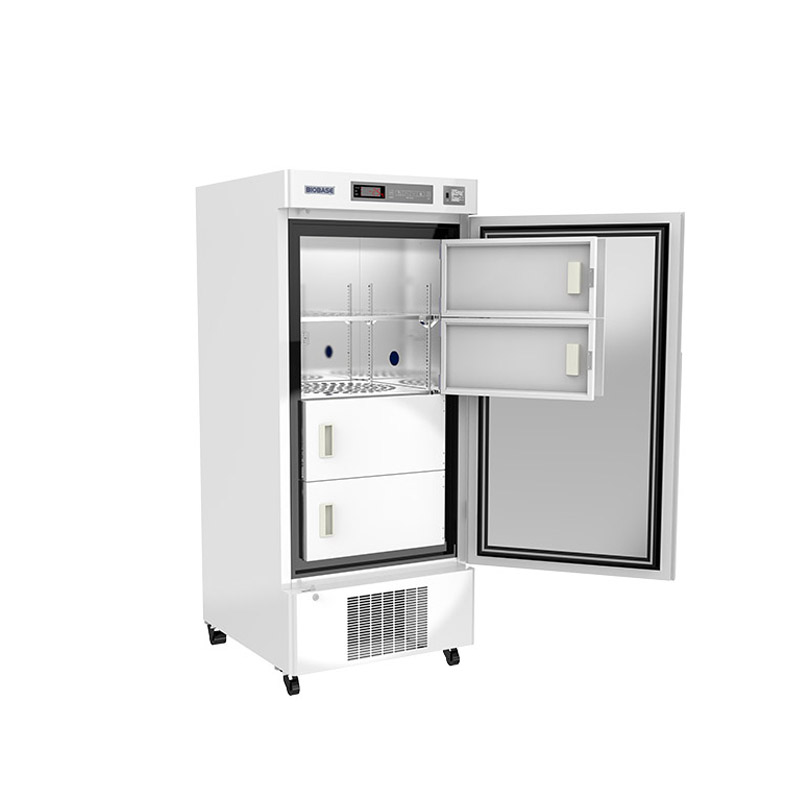

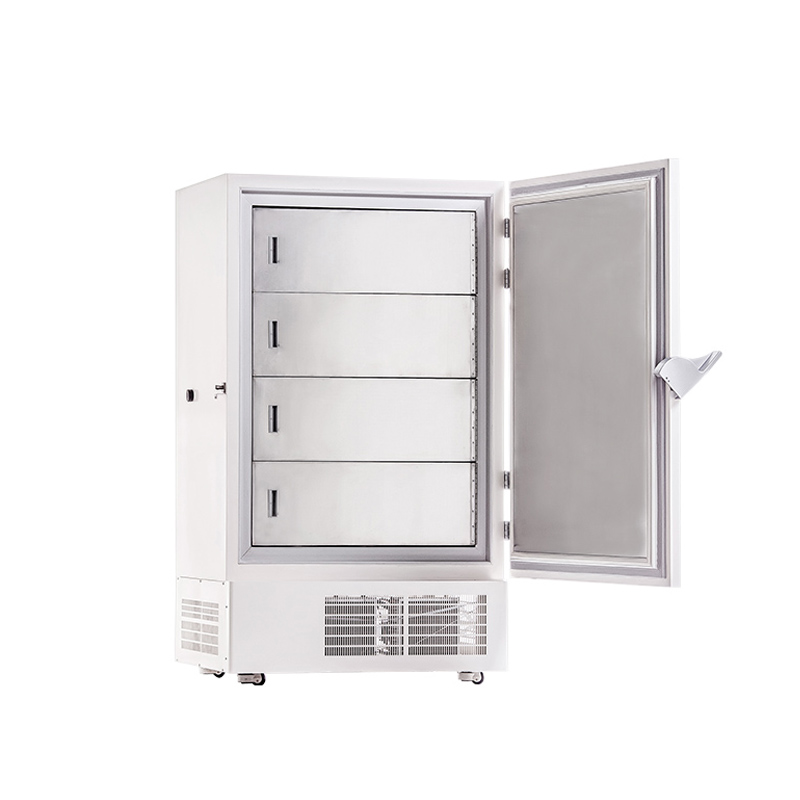

BDF-25V100 / BDF-25V270 / BDF-25V350 / BDF-25V936
The -25 °C freezer can be used for scientific research, low temperature test of special materials, low temperature test of frozen plasma, biological materials, vaccines, biological products, etc. Applicable to scientific research institutes, electronics industry, chemical industry, hospitals, university laboratories, etc.
Key features
- Monitored temperature
- Alarms and sample protection
- Capacity matched to inventory
Made to orderPrice on request
- Manufacturer
- BIOBASE
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.
01 / Accessories
Available accessories
Optional accessories
- Temperature recorder
- RS485
- Printer
- Liquid nitrogen backup system
- Remote alarm function interface
Final contents, accessory compatibility and availability are confirmed in the quotation for the selected model.
02 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BDF-25V100 | BDF-25V270 | BDF-25V350 | BDF-25V936 |
|---|---|---|---|---|
| Capacity | 100 L | 270 L | 350 L | 936 L |
| Temp. Range | ||||
| Temp. Accuracy | 1 °C | 0.1 °C | 0.1 °C | 0.1 °C |
| Temp. Uniformity | ≤3 °C | ≤3 °C | ≤3 °C | 5 °C |
| Temp. Stability | ||||
| Recovery Time (Recover to -22℃ in an ambient temp. of 25℃) | ||||
| Cooling Time (Cool down to -25℃ in an ambient temp. of 25℃) | ≤1.5 h | ≤1.5 h | ≤1.5 h | 150 min |
| Control System | ||||
| Display | ||||
| Alarm | High / low temperature alarm, power failure alarm(Power failure alarm duration function is optional), controller failure alarm, door ajar alarm | High / low temperature alarm, power failure alarm(8 h), controller failure alarm, door ajar alarm | High / low temperature alarm, power failure alarm(8 h), controller failure alarm, door ajar alarm | High / low temperature alarm, power failure alarm(48 h), controller failure alarm, door ajar alarm |
| Refrigeration Type | ||||
| Refrigerant | R600a/48 g | R290/65 g | R290/85 g | R404A/320 g |
| Compressor | International famous brand compressor /1 | International famous brand compressor /1 | International famous brand compressor /1 | Imported brand SECOP compressor/2 |
| Condenser & Evaporator | Side-panel type Bundy tube condenser; wire-on-tube Bundy tube evaporator | Wire-on-tube Bundy tube condenser; Built-in coil type copper tube evaporator | Wire-on-tube Bundy tube condenser; Built-in coil type copper tube evaporator | Finned copper tube condenser; built-in coil type copper tube evaporator |
| Defrost | ||||
| Construction | ||||
| Material — Internal Material | HIPS | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Material — External Material | Precoated steel plate | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate |
| Door | Outer door: cyclopentane integral foam outer door*1 Interior door: / | Outer door: cyclopentane integral foam outer door*1 Interior door: sprayed steel plate door*4 | Outer door: cyclopentane integral foam outer door*1 Interior door: sprayed steel plate door*4 | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*4 |
| Consumption | 100 W | 332 W | 312 W | 1000 W |
| Power Supply | AC 220 V, 50 Hz(Standard); 110/220 V, 60 Hz(Optional) | AC 220 V, 50 Hz(Standard); 110/220 V, 60 Hz(Optional) | AC 220 V, 50 Hz(Standard); 110/220 V, 60 Hz(Optional) | AC 220 V, 50 Hz(Standard); 220 V, 60 Hz; 110 V, 50/60 Hz(Optional) |
| Casters | No | Yes | Yes | Yes |
| Shelf | 3(Drawer) | 3 | 3 | 3 |
| Standard Accessory | Test hole | Test hole, USB interface | Test hole, USB interface | Test hole |
| Optional Accessory | Temperature recorder | Temperature recorder, RS485, printer | Temperature recorder, RS485, printer | Temperature recorder, liquid nitrogen backup system, remote alarm function interface, USB interface |
| Internal Size (W*D*H) | 410 × 440 × 630 mm | 520 × 567 × 1013 mm | 520 × 567 × 1266 mm | 1000 × 700 × 1335 mm |
| External Size (W*D*H) | 600 × 620 × 870 mm | 690 × 744 × 1631 mm | 690 × 744 × 1885 mm | 1304 × 1000 × 2017 mm |
| Package Size (W*D*H) | 640 × 660 × 1060 mm | 810 × 860 × 1820 mm | 840 × 860 × 2050 mm | 1355 × 1000 × 1980 mm |
| Net Weight | 37.5 kg | 115 kg | 123 kg | 378 kg |
| Gross Weight | 46 kg | 132 kg | 145 kg | 413 kg |
