Mixing & shaking

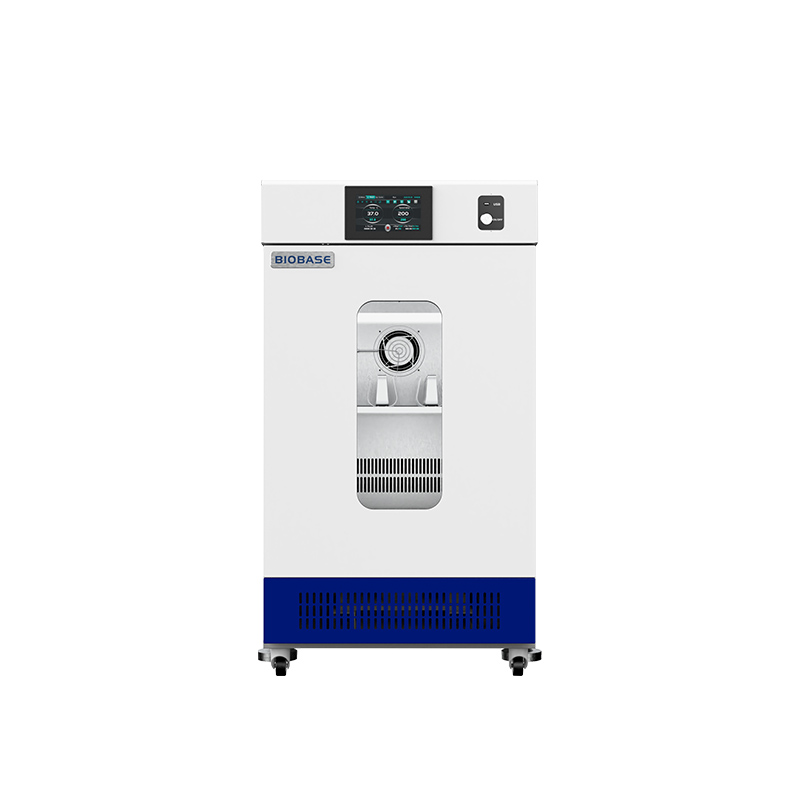

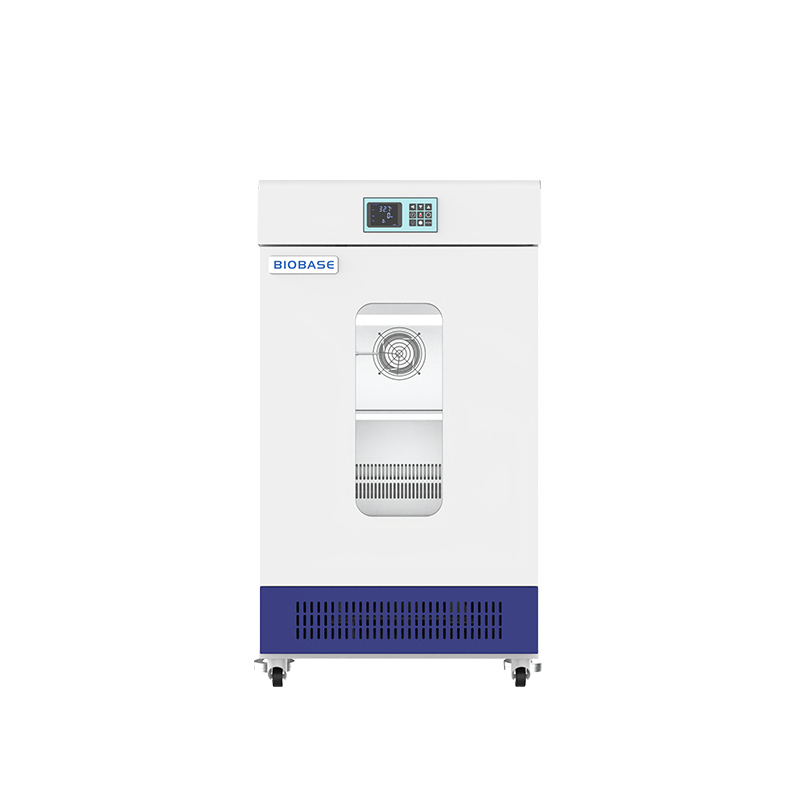

Vertical Type Shaking Incubator

BJPX-SL10-L / BJPX-SL10 / BJPX-SL20-L / BJPX-SL20

The Large Capacity Vertical Type Shaking Incubator is a high-performance device designed for precise temperature control and uniform shaking of samples in laboratories. Ideal for applications in microbiology, cell culture, and biochemistry, this incubator offers advanced features to ensure optimal conditions for sample growth and development.

Key features

  • Adjustable shaking speed
  • Controlled temperature
  • Selectable platforms and holders
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBJPX-SL10-LBJPX-SL10BJPX-SL20-LBJPX-SL20
Capacity
Common to all models157 L ·
DisplayLCD7 inch touch screenLCD7 inch touch screen
Circulation Mode
Common to all modelsForced convection
Shaking Mode
Common to all modelsRotary shaking
Drive Mode
Common to all modelsThree axis balanced drive type
Vibration Range
Common to all modelsΦ26 mm
Rotating Speed
Common to all models30–300 rpm
Rotating Accuracy
Common to all models±1r/min
Temp. RangeRT+5–60 °CRT+5–60 °C4–60 °C4–60 °C
Temp. Control Accuracy
Common to all models0.1 °C
Temp. Uniformity
Common to all models≤±1 °C(37 °C）
Temp. Fluctuation
Common to all models≤±0.5 °C
Timing Range0–9999 min(h)0–999h59min0–9999 min(h)0–999h59min
Shaking Plate Size
Common to all models413 × 466 mm(Two layers)
Max. Capacity
Common to all modelsUpper Layer: 100 mL*25 or 250 mL*16 or 500 mL*12 or 1000 mL*9(Flask clamp) Lower Layer: 100 mL*20 or 250 mL*12 or 500 mL*9 or 1000 mL*6(Flask clamp) Tube Rack*296-well Plate*16 Clamping Rod Shaking Plate*2
Standard. Capacity
Common to all modelsUpper Layer: 250 mL*12 or 500 mL*9 or 1000 mL*6(Flask clamp) Lower Layer: Universal spring rack
Lighting Mode
Common to all modelsLED lamp*1
Sterilization Mode
Common to all modelsUV lamp*1
Refrigerant//R 290, 75 gR 290, 75 g
Ambient Temp.
Common to all models15–35 °C
Curve ProgrammingFixed valueFixed and multi-stageFixed valueFixed and multi-stage
Internal Material
Common to all models304 stainless steel
Consumption850 W850 W1000 W1000 W
Power Supply
Common to all modelsAC220V, 50/60 Hz(Standard); 110 V, 50/60 Hz(Optional)
Internal Size(W*D*H)
Common to all models495 × 505 × 630 mm
External Size(W*D*H)
Common to all models650 × 785 × 1135 mm
Package Size(W*D*H)
Common to all models780 × 920 × 1290 mm
Net Weight120 kg120 kg145 kg145 kg
Gross Weight140 kg140 kg165 kg165 kg

Technical data supplied by BIOBASE.
