Sterilisation

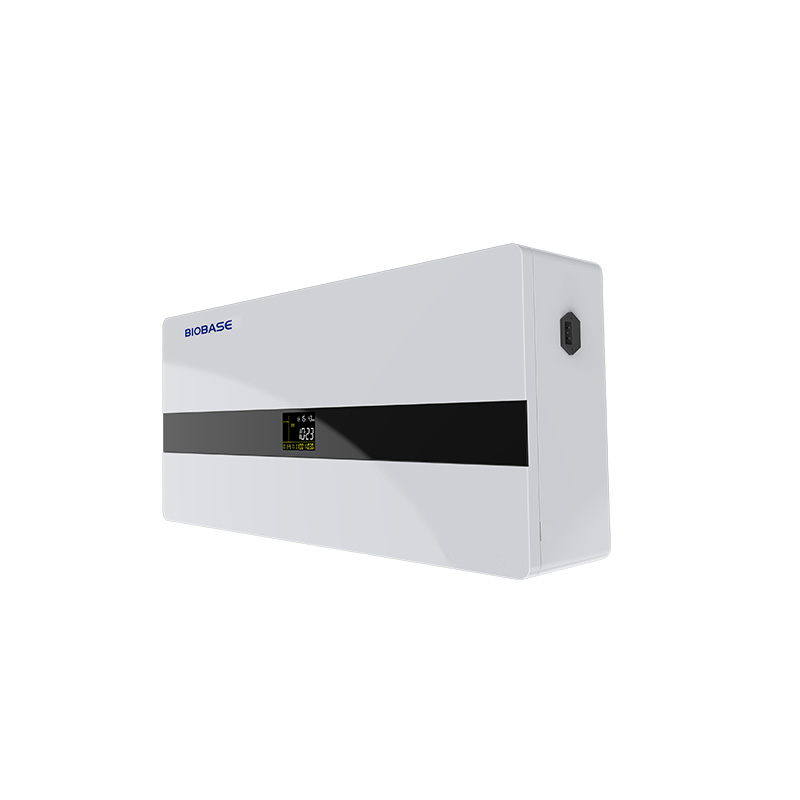

UV Air Sterilizer (Wall Mounted)
BKZII-B-800 / BKZII-B-1000 / BKZII-B-1200 / BKS-B-600
UV air sterilizer is a kind of equipment which is composed of ultraviolet lamp, filter, fan and ballast, mainly used for air disinfection.
Key features
- Thermal, UV, plasma or chemical processes
- Capacities and formats for different loads
- Integrated safety systems
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BKZII-B-800 | BKZII-B-1000 | BKZII-B-1200 | BKS-B-600 |
|---|---|---|---|---|
| Applicable Space | ≤80m³ | ≤100m³ | ≤120m³ | ≤60m³ |
| Circulating Air | ≥800m³/h | ≥1000m³/h | ≥1200m³/h | ≥600m³/h |
| Shell Material | High quality cold rolled steel plate | High quality cold rolled steel plate | High quality cold rolled steel plate | ABS, anti-UV |
| Filter | Filter dust particles above 5 µm | Filter dust particles above 5 µm | Filter dust particles above 5 µm | Activated carbon, filter dust particles more than 5 µm |
| UV Lamp Life | ||||
| UV Leakage | ≤1µW/cm² | ≤3µW/cm² | ≤1µW/cm² | ≤3µW/cm² |
| O3 Leakage | ≤0.02 mg/cm 3 | ≤0.016 mg/cm 3 | ≤0.02 mg/cm 3 | ≤0.006 mg/cm 3 |
| Negative Ion Generation | ≥5 × 10 6 PCS/cm 3 | ≥5 × 10 6 PCS/cm 3 | ≥5 × 10 6 PCS/cm 3 | ≥5 × 10 6 PCS/cm 3 (Optional) |
| Natural Bacteria Extinction Rate | ||||
| Sterilization Rate of Staphylococcus Albus | ||||
| Noise | ||||
| Consumption | ≤180 W | ≤235 W | ≤300 W | ≤130 W |
| Power Supply | ||||
| External Size (W*D*H) | 800 × 360 × 160 mm | 800 × 360 × 160 mm | 800 × 360 × 160 mm | 885 × 280 × 220 mm |
| Net Weight | 17.6 kg | 17.8 kg | 18 kg | 7.2 kg |
| Package Size(W*D*H) | 860 × 420 × 210 mm | 860 × 420 × 210 mm | 860 × 420 × 210 mm | 1100 × 280 × 385 mm |
| Gross Weight | 19.2 kg | 19.3 kg | 19.5 kg | 9.8 kg |
