Microscopy

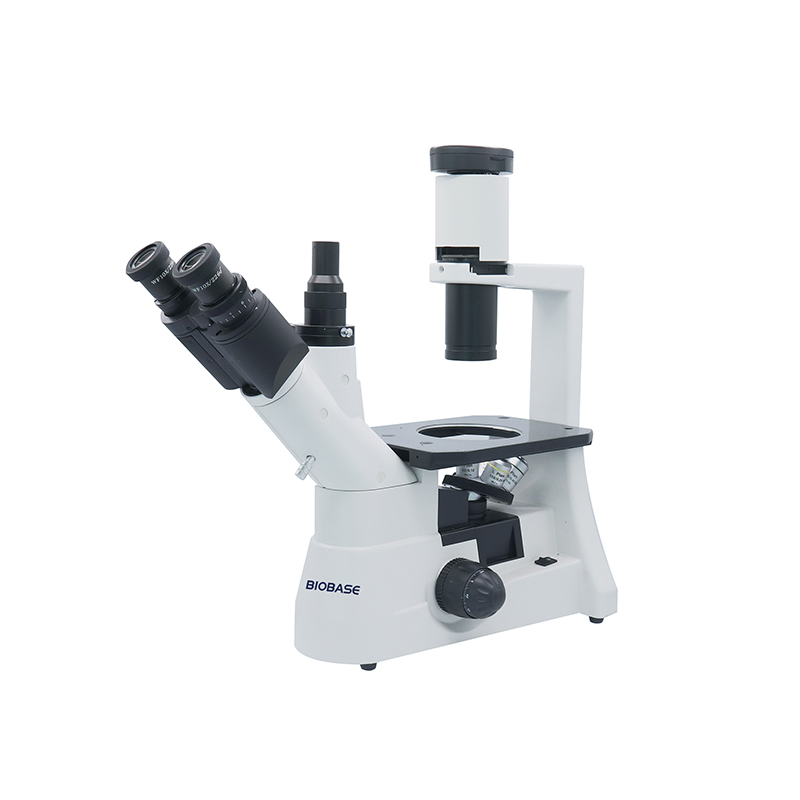

Trinocular Inverted Microscope

BK-37XC

Biobaseinverted microscopes deliver excellent ergonomics, top quality optics, crisp images and configurability to meet your needs.

Key features

  • Application-specific optical system
  • Configurable objectives and illumination
  • Digital capture options
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBK-37XC
Optical System
Infinite optical system
View Head
Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 55–75 mm
Eyepiece
P10X/22 mm, P16X/15 mm
Objective
Infinite Plan Achromatic Objective · 4X N.A=0.10 WD=25.00 mm
Objective (2)
Infinite Plan Achromatic Objective · 40X N.A=0.60 WD=3.30 mm
Objective (3)
Infinite Plan Phase Objective · 10X N.A=0.25 WD=8.10 mm
Objective (4)
Infinite Plan Phase Objective · 20X N.A=0.40 WD=4.80 mm
Objective (5)
Infinite Plan Phase Objective · 40X(Optional)
Focusing
Coaxial coarse ＆ fine adjustable system, pinion and rack adjustable, fine division 0.002 mm
Stage
242 × 172 mm, glass slide ø110 mm, moving range 120 × 75 mm
Condenser
ELWD Condenser with Iris Diaphragm ＆ Filter, LWD 75 mm
Illumination
Halogen lamp 12 V/30 W, brightness adjustable
Power Supply
AC85–265 V， 50/60 Hz
Package Size
655 × 305 × 630 mm
Gross Weight
14 kg

Technical data supplied by BIOBASE.
