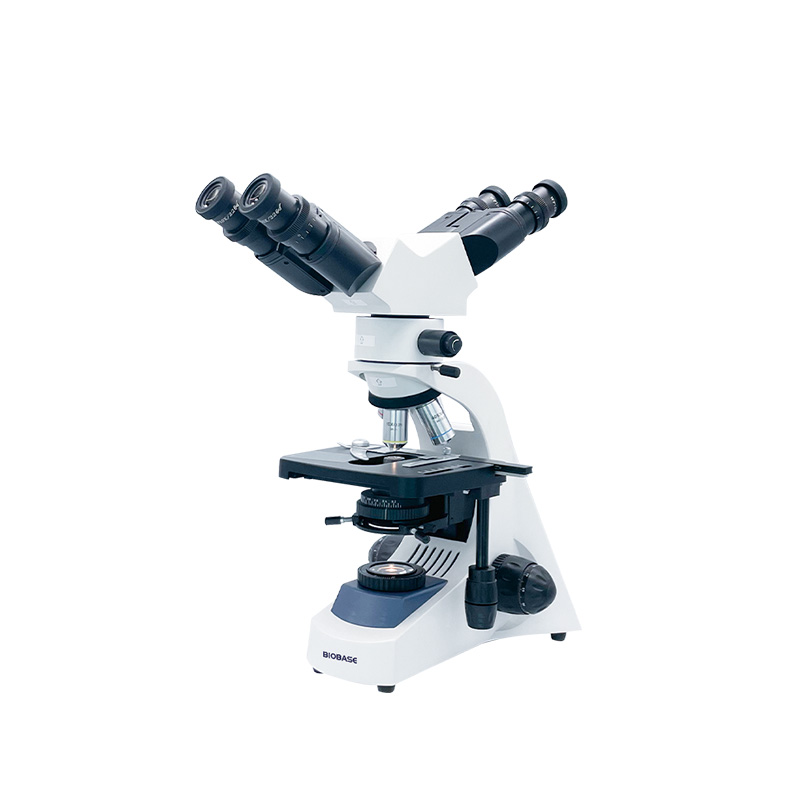

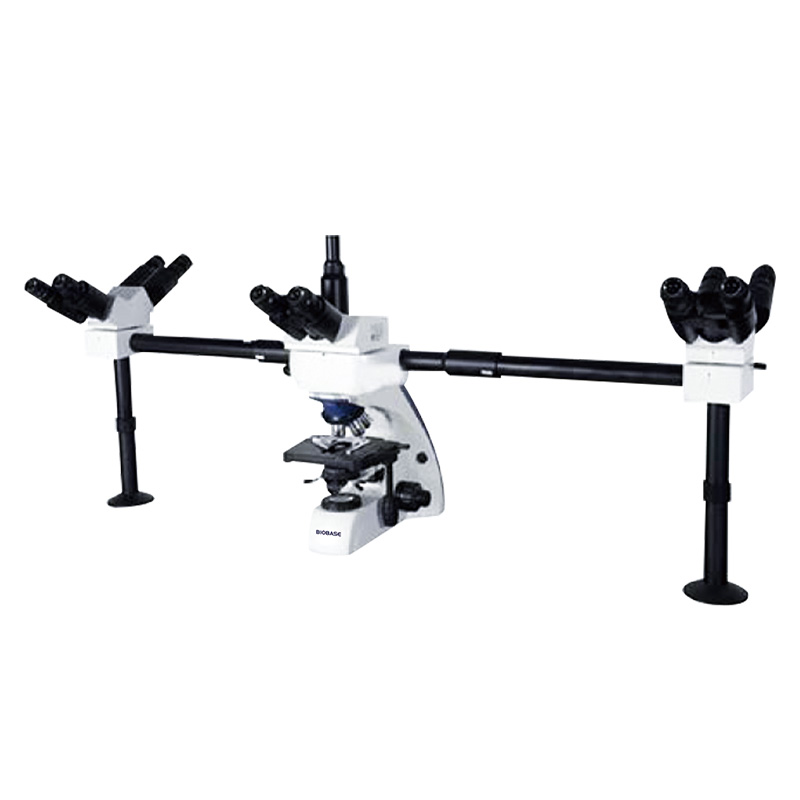

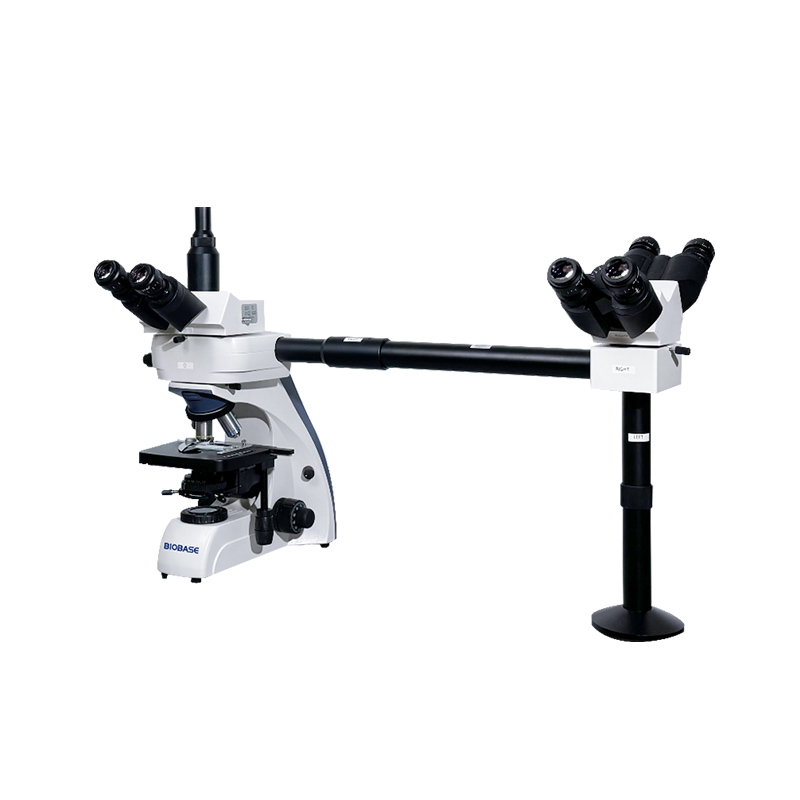

Teaching Microscope

BBM-18F2 / BBM-18F3 / BBM-18F5

The Teaching Microscope is an advanced educational tool designed to facilitate collaborative learning in classrooms, laboratories, and training centers. It is ideal for use in educational institutions, research facilities, and medical training programs where multiple users need to observe the same specimen simultaneously.

Key features

Application-specific optical system
Configurable objectives and illumination
Digital capture options

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery to the UK, all European countries, USA, Canada, Mexico and South America.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BBM-18F2	BBM-18F3	BBM-18F5
Optical System	Common to all modelsInfinite optical system
View Head	Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48–75 mm	Compensation free trinocular head for main part, binocular head for teaching part, Inclined at 30°, 360° rotatable, Interpupillary 48–75 mm	Compensation free trinocular head for main part, binocular head for teaching part, Inclined at 30°, 360° rotatable, Interpupillary 48–75 mm
Eyepiece	Common to all modelsWF10X/22 mm
Infinite Plan Achromatic Objective	Common to all models4X, 10X, 40X(S), 100X(S, Oil)
Focusing	Common to all modelsCoaxial Coarse & Fine Adjustable System, Fine Division 0.002 mm
Stage	Double Layers Mechanical Stage 180 × 150 mm, Moving Range 75 × 50 mm	Double Layers Mechanical Stage 180 × 160 mm, Moving Range 80 × 50 mm	Double Layers Mechanical Stage 180 × 160 mm, Moving Range 80 × 50 mm
Condenser	Common to all modelsAbbe NA1.25 condenser with Iris Diaphragm & Filter
Indicator	Common to all modelsLED cursor indicator
Illumination	3 W LED lamp, Kohler Illumination, brightness adjustable	10 W LED lamp, Kohler Illumination, brightness adjustable	10 W LED lamp, Kohler Illumination, brightness adjustable
Filter	Common to all modelsBlue, yellow, green
Power Supply	Common to all modelsAC100–240 V, 50/60 Hz
Package Size(WDH)	390 × 290 × 650 mm	720 × 550 × 480 mm	720 × 550 × 480 mm ·
Gross Weight	11 kg	22 kg	29 kg

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
