Photography and technical data supplied by: BIOBASE · 2 images.

Centrifuges

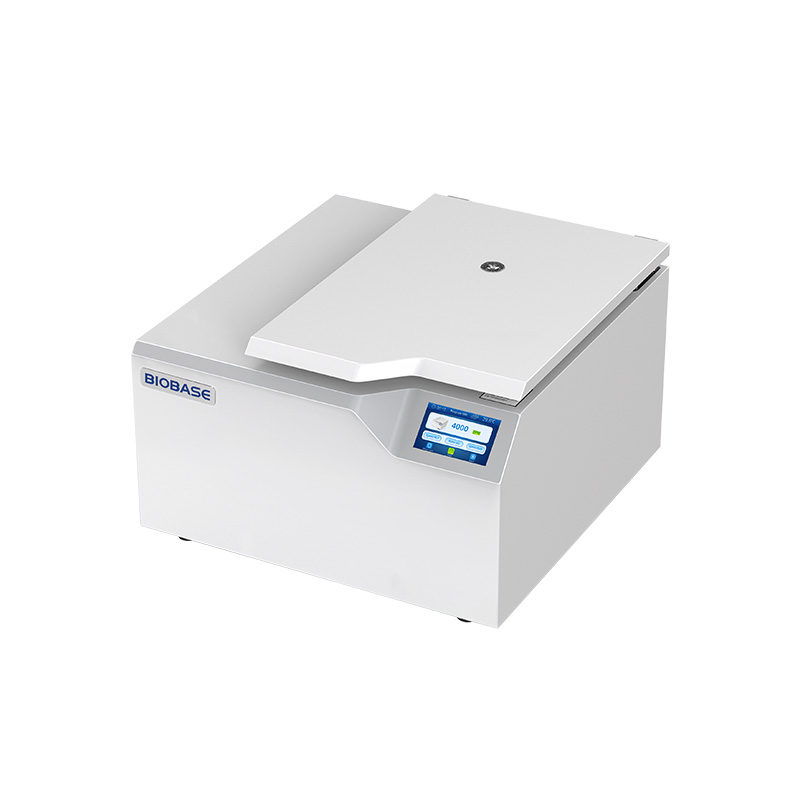

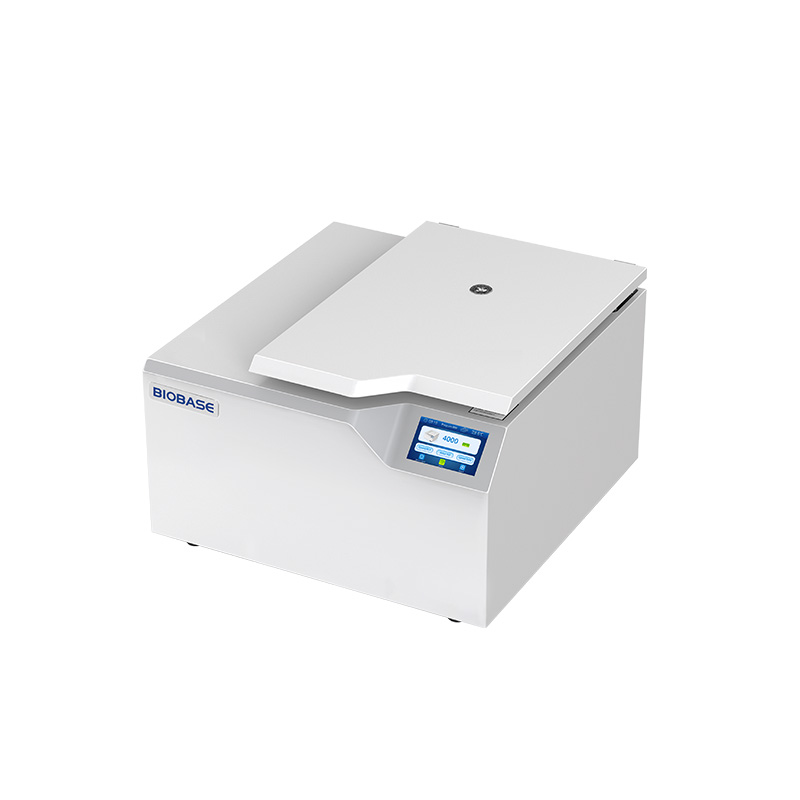

Table Top High Speed Refrigerated Centrifuge

BKC-TH16RC-I / BKC-TH16RB

The Table Top High Speed Refrigerated Centrifuge is a compact, precision-driven centrifuge equipped with powerful cooling capabilities, designed for temperature-sensitive, high-speed separation tasks. It is widely used in molecular biology, biochemistry, clinical diagnostics.

Key features

  • Controlled speed and centrifugal force
  • Rotors matched to the vessel
  • Benchtop and refrigerated formats
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBKC-TH16RC-IBKC-TH16RB
Max. Speed
Common to all models16500 rpm
Speed Accuracy
Common to all models±20 rpm
Max. RCF
Common to all models23072×g
Max. Volume4 × 100 mL12 × 10 mL
Refrigeration System
Common to all modelsCFC-free compressor, R404a
Timing Range
Common to all models1 s~99h59min/Continuous/Short-span
Temp. Range
Common to all models-20 °C～+40 °C
Temp. Accuracy
Common to all models±1 °C
Noise
Common to all models≤65dB
Power Supply
Common to all modelsStandard: AC220V, 50/60 Hz Optional: AC110V, 50/60 Hz
External Size(L*W*H)
Common to all models606 × 572 × 361 mm
Package Size(L*W*H)
Common to all models700 × 670 × 670 mm
Net Weight
Common to all models62 kg
Gross Weight
Common to all models70 kg(220 V),75 kg(110 V)
NO. 16M0003
Common to all modelsRotor Type: Angle Rotor · Volume: 8 × 7 mL · Max Speed(rpm): 14000 · Max RCF(×g): 16435 · Adapters: /
NO. 16M0004
Common to all modelsRotor Type: Angle Rotor · Volume: 12 × 10/15 mL(Low speed) · Max Speed(rpm): 6000 · Max RCF(×g): 3743 · Adapters: 2/3/4 mL blood collection tube, 5/7 mL blood collection tube, 15 mL(▲)
NO. 16M0005
Common to all modelsRotor Type: Angle Rotor · Volume: 12 × 10 mL (High speed) · Max Speed(rpm): 12000 · Max RCF(×g): 14328 · Adapters: 1.5 mL, 5 mL
NO. 16M0006
Common to all modelsRotor Type: Angle Rotor · Volume: 12 × 1.5/2 mL · Max Speed(rpm): 16500 · Max RCF(×g): 19176 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0007
Common to all modelsRotor Type: Angle Rotor · Volume: 18 × 1.5/2 mL · Max Speed(rpm): 15000 · Max RCF(×g): 18866 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0008
Common to all modelsRotor Type: Angle Rotor · Volume: 24 × 1.5/2 mL · Max Speed(rpm): 14000 · Max RCF(×g): 19722 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0090
Common to all modelsRotor Type: Angle Rotor · Volume: 36 × 1.5/2 mL · Max Speed(rpm): 13000 · Max RCF(×g): 19159 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0091
Common to all modelsRotor Type: Angle Rotor · Volume: 48 × 1.5/2 mL · Max Speed(rpm): 13000 · Max RCF(×g): 19159 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0085
Common to all modelsRotor Type: Angle Rotor · Volume: 40 × 0.2 mL · Max Speed(rpm): 16500 · Max RCF(×g): 23072 · Adapters: /
NO. 16M0086
Common to all modelsRotor Type: Angle Rotor · Volume: 24 × 0.5 mL · Max Speed(rpm): 16500 · Max RCF(×g): 21306 · Adapters: /
NO. 16M0087
Common to all modelsRotor Type: Angle Rotor · Volume: 30 × 0.5 mL · Max Speed(rpm): 13000 · Max RCF(×g): 15210 · Adapters: /
NO. 16M0088
Common to all modelsRotor Type: Angle Rotor · Volume: 40 × 0.5 mL · Max Speed(rpm): 13000 · Max RCF(×g): 15267 · Adapters: /
NO. 16M0089
Common to all modelsRotor Type: Angle Rotor · Volume: 4 × 8 × 0.2 mL pcr · Max Speed(rpm): 13000 · Max RCF(×g): 11941 · Adapters: /
NO. 16M0009
Common to all modelsRotor Type: Angle Rotor · Volume: 10 × 5 mL · Max Speed(rpm): 14000 · Max RCF(×g): 15339 · Adapters: 1.5/2 mL
NO. 16M0010
Common to all modelsRotor Type: Angle Rotor · Volume: 8 × 15 mL (▲) · Max Speed(rpm): 12000 · Max RCF(×g): 15294 · Adapters: 5 mL(▲)
NO. 16M0011
Common to all modelsRotor Type: Angle Rotor · Volume: 8 × 15 mL(●) · Max Speed(rpm): 12000 · Max RCF(×g): 15294 · Adapters: /
NO. 16M0017
Common to all modelsRotor Type: Angle Rotor · Volume: 10 × 15 mL · Max Speed(rpm): 11000 · Max RCF(×g): 12581 · Adapters: /
NO. 16M0012
Common to all modelsRotor Type: Angle Rotor · Volume: 6 × 50 mL(▲) · Max Speed(rpm): 11000 · Max RCF(×g): 13798 · Adapters: 15 mL(▲),50 mL(●)
NO. 16M0013
Common to all modelsRotor Type: Angle Rotor · Volume: 6 × 50 mL(●/Flat) · Max Speed(rpm): 11000 · Max RCF(×g): 13798 · Adapters: /
NO. 16M0062
Common to all modelsRotor Type: Swing Rotor · Volume: 8 × 10/15 mL · Max Speed(rpm): 4000 · Max RCF(×g): 2522 · Adapters: 2/3/4 mL blood collection tube, 5/7 mL blood collection tube, 15 mL (▲)
NO. 16M0063
Common to all modelsRotor Type: Swing Rotor · Volume: 12 × 10/15 mL · Max Speed(rpm): 4000 · Max RCF(×g): 2683 · Adapters: 2/3/4 mL blood collection tube, 5/7 mL blood collection tube, 15 mL (▲)
NO. 16M0064
Common to all modelsRotor Type: Swing Rotor · Volume: 4 × 50 mL · Max Speed(rpm): 4000 · Max RCF(×g): 2522 · Adapters: 50 mL (▲), 20 mL, 15 mL, 10 mL, 5 mL, 1.5/2 mL
NO. 16M0065
Common to all modelsRotor Type: Swing Rotor · Volume: 6 × 50 mL · Max Speed(rpm): 4000 · Max RCF(×g): 2504 · Adapters: 50 mL (▲), 20 mL, 15 mL, 10 mL, 5 mL, 1.5/2 mL
NO. 16M0066
Common to all modelsRotor Type: Swing Rotor · Volume: 4 × 100 mL · Max Speed(rpm): 4000 · Max RCF(×g): 2379 · Adapters: 2/3/4 mL blood collection tube, 5/7 mL blood collection tube
NO. 16M0020
Common to all modelsRotor Type: Swing Rotor · Volume: 24 Capillaries · Max Speed(rpm): 12000 · Max RCF(×g): 14170 · Adapters: /
NO. 16M0003 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 8 × 7 mL · Max. Speed(rpm): 14000 · Max. RCF(xg): 16435 · Adapters: /
NO. 16M0004 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 12 × 10/15 mL(Low speed) · Max. Speed(rpm): 6000 · Max. RCF(xg): 3743 · Adapters: 2/3/4 mL blood collection tube, 5/7 mL blood collection tub,15 mL(▲)
NO. 16M0005 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 12 × 10 mL(High speed) · Max. Speed(rpm): 12000 · Max. RCF(xg): 14328 · Adapters: 1.5/2 mL，5 mL
NO. 16M0006 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 12 × 1.5/2 mL · Max. Speed(rpm): 16500 · Max. RCF(xg): 19176 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0007 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 18 × 1.5/2 mL · Max. Speed(rpm): 15000 · Max. RCF(xg): 18866 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0008 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 24 × 1.5/2 mL · Max. Speed(rpm): 14000 · Max. RCF(xg): 19722 · Adapters: 0.2 mL, 0.5 mL
NO. 16M0009 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 10 × 5 mL · Max. Speed(rpm): 14000 · Max. RCF(xg): 15339 · Adapters: 1.5/2 mL
NO. 16M0085 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 40 × 0.2 mL · Max. Speed(rpm): 16500 · Max. RCF(xg): 23072 · Adapters: /
NO. 16M0086 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 24 × 0.5 mL · Max. Speed(rpm): 16500 · Max. RCF(xg): 21306 · Adapters: /
NO. 16M0087 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 30 × 0.5 mL · Max. Speed(rpm): 13000 · Max. RCF(xg): 15210 · Adapters: /
NO. 16M0088 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 40 × 0.5 mL · Max. Speed(rpm): 13000 · Max. RCF(xg): 15267 · Adapters: /
NO. 16M0089 (2)
Common to all modelsRotors Type: Angel Rotor · Volume: 4 × 8 × 0.2 mL pcr · Max. Speed(rpm): 13000 · Max. RCF(xg): 11941 · Adapters: /
NO. 16M0020 (2)
Common to all modelsRotors Type: Swing Rotor · Volume: 24 Capillaries · Max. Speed(rpm): 12000 · Max. RCF(xg): 14170 · Adapters: /
NO. 16M0062 (2)
Common to all modelsRotors Type: Swing Rotor · Volume: 8 × 10/15 mL · Max. Speed(rpm): 4000 · Max. RCF(xg): 2522 · Adapters: 2/3/4 mL blood collection tube, 5/7 mL blood collection tube, 15 mL(▲)
NO. 16M0063 (2)
Common to all modelsRotors Type: Swing Rotor · Volume: 12 × 10/15 mL · Max. Speed(rpm): 4000 · Max. RCF(xg): 2683 · Adapters: 2/3/4 mL blood collection tube, 5/7 mL blood collection tube, 15 mL(▲)

Technical data supplied by BIOBASE.
