Laboratory analysis

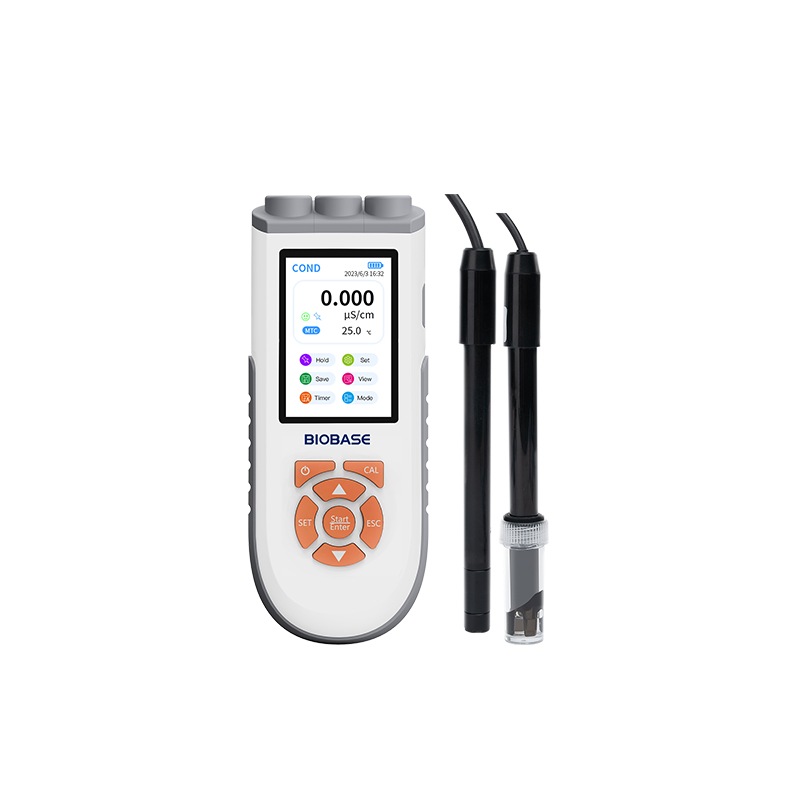

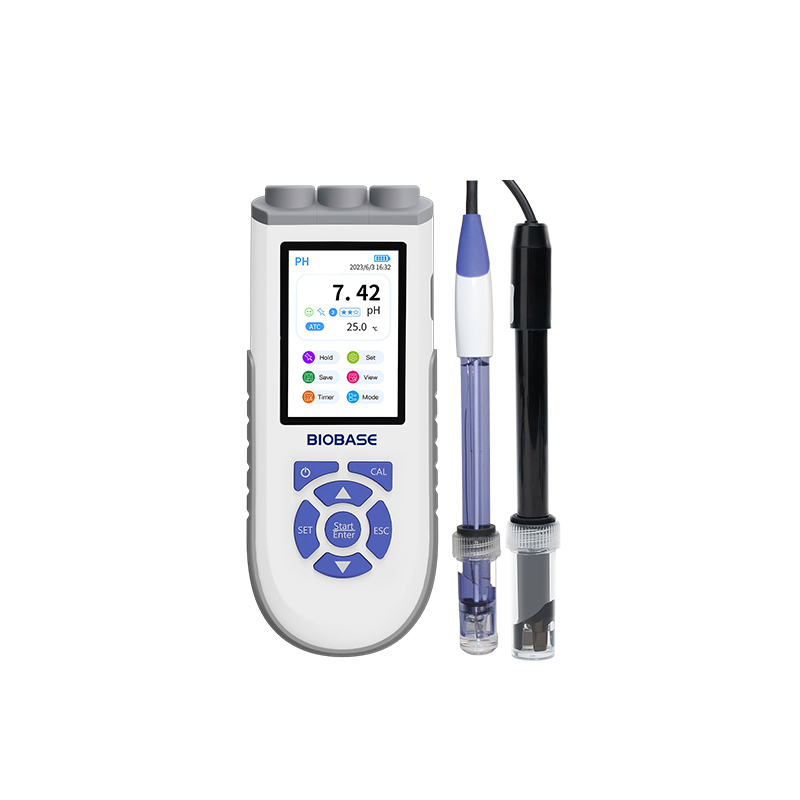

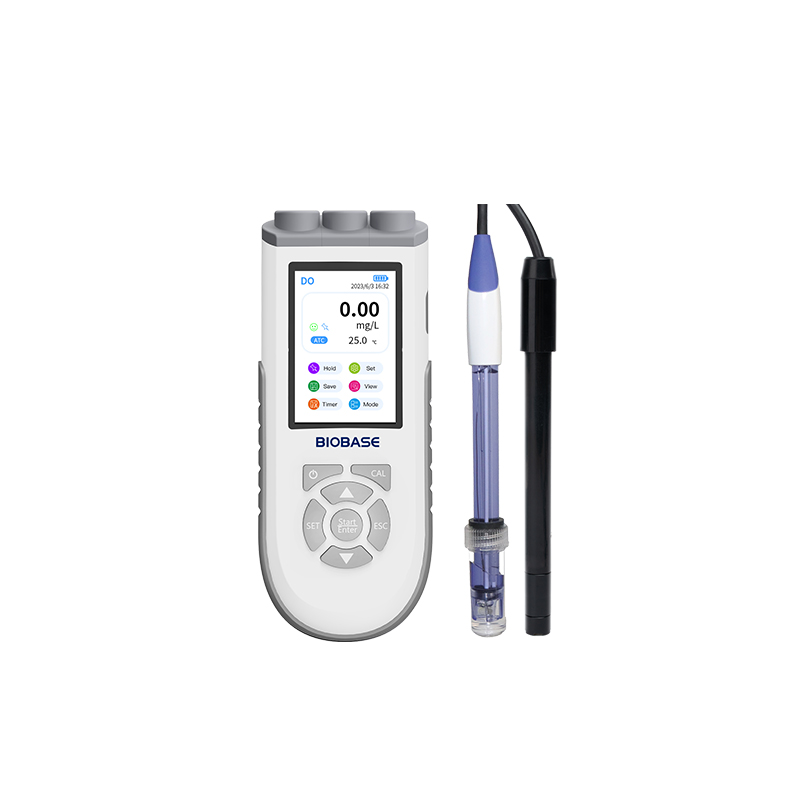

Portable Multiparameter Meter

PH-PC10 / PH-CD10 / PH-PD10

BIOBASE Portable Multiparameter Meter is a compact, reliable, and easy-to-use device designed for fast and accurate water quality analysis in the field or laboratory.

Key features

  • Digital measurement
  • Method matched to the parameter
  • Repeatable results and data capture
Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterPH-PC10PH-CD10PH-PD10
pH — Range-2.000–20.000pH/-2.000–20.000pH
pH — Resolution0.01/0.1/0.001pH/0.01/0.1/0.001pH
pH — Accuracy±0.002pH±one digit/±0.002pH±one digit
mV(ORP probe optional) — Range-1999 mV~1999 mV/-1999 mV~1999 mV
mV(ORP probe optional) — Resolution0.1 mV/0.1 mV
mV(ORP probe optional) — Accuracy±0.03 %FS±one digit/±0.03 %FS±one digit
Conductivity
Common to all modelsRange · 0–2000.0mS/cm(Auto divided: 0–19.999µS/cm; 20.0–199.9µS/cm; 200–1999µS/cm; 2.00–19.99µS/cm; 20.00–199.9µS/cm; 200.0–2000µS/cm), match test range: 0–200.0mS/cm · 0–2000.0mS/cm(Auto divided: 0–19.999µS/cm; 20.0–199.9µS/cm; 200–1999µS/cm; 2.00–19.99µS/cm; 20.00–199.9µS/cm; 200.0–2000µS/cm), match test range: 0–200.0mS/cm · /
Conductivity (2)
Common to all modelsResolution · 0.001/0.01/0.1/1 · 0.001/0.01/0.1/1 · /
Conductivity (3)
Common to all modelsAccuracy · ±0.5 %FS±one digit · ±0.5 %FS±one digit · /
Conductivity (4)
Common to all modelsATC Range · 0–50 °C · 0–50 °C · /
TDS
Common to all modelsRange · 0–1000.0 g/L(TDS factor adjustable) · 0–1000.0 g/L(TDS factor adjustable) · /
TDS (2)
Common to all modelsResolution · 0.001/0.01/0.1/1 · 0.001/0.01/0.1/1 · /
TDS (3)
Common to all modelsAccuracy · ±0.5 %FS±one digit · ±0.5 %FS±one digit · /
TDS (4)
Common to all modelsATC Range · 0–50 °C · 0–50 °C · /
Resistivity
Common to all modelsRange · 5.000–100.0MΩ·cm · 5.000–100.0MΩ·cm · /
Resistivity (2)
Common to all modelsResolution · 0.001/0.01/0.1/1 · 0.001/0.01/0.1/1 · /
Resistivity (3)
Common to all modelsAccuracy · ±0.5 %FS±one digit · ±0.5 %FS±one digit · /
Resistivity (4)
Common to all modelsATC Range · 0–50 °C · 0–50 °C · /
Salinity
Common to all modelsRange · 0–100.0ppt · 0–100.0ppt · /
Salinity (2)
Common to all modelsResolution · 0.001/0.01/0.1/1 · 0.001/0.01/0.1/1 · /
Salinity (3)
Common to all modelsAccuracy · ±0.5 %FS±one digit · ±0.5 %FS±one digit · /
Salinity (4)
Common to all modelsATC Range · 0–50 °C · 0–50 °C · /
DO
Common to all modelsRange · / · 0–20.00 mg/L, 0–200.0 % · 0–20.00 mg/L, 0–200.0 %
DO (2)
Common to all modelsResolution · / · 0.01 or 0.1 mg/L · 0.01 or 0.1 mg/L
DO (3)
Common to all modelsAccuracy · / · ±0.30 mg/L · ±0.30 mg/L
DO (4)
Common to all modelsATC Range · / · 0–50 °C automatically · 0–50 °C automatically
DO (5)
Common to all modelsSalinity Compensation · / · 0–45ppt manual · 0–45ppt manual
DO (6)
Common to all modelsBarometric Compensation · / · 0–200 kPa automatically · 0–200 kPa automatically
Temperature — Range
Common to all models-10.0–135.0 °C/14.0–275.0℉
Temperature — Resolution
Common to all models0.1 °C
Temperature — Accuracy
Common to all models±0.2 °C
Data Storage/Content
Common to all models3000 groups(Serial number, mode, measuring value, temp, date: Y/M/D/H/M)
Data Export/Charging Port
Common to all modelsType-C-USB
PC Software Function
Common to all modelsGLP measurement management Two-level user management The user's operation history log Meter usage management Automatically/manually timing data storage
Power Requirements
Common to all modelsRechargeable lithium battery*1
External Size(W*D*H)
Common to all models79 × 32 × 204 mm
Package Size(W*D*H)
Common to all models380 × 330 × 130 mm
Net Weight
Common to all models305 g
Gross Weight
Common to all models3 kg

Technical data supplied by BIOBASE.
