Laboratory analysis

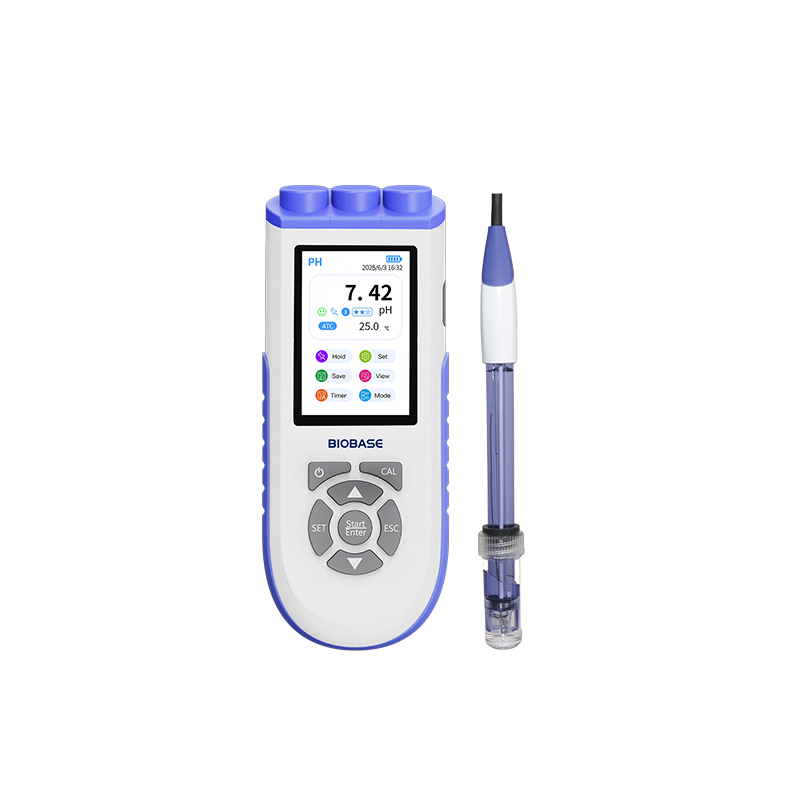

Portable pH Meter
BK-PH10P / PH-P10
BIOBASE Portable pH Meter is a compact and reliable solution for quick and accurate pH measurement in laboratories, industries, and fieldwork.
Key features
- Digital measurement
- Method matched to the parameter
- Repeatable results and data capture
- Manufacturer
- BIOBASE
01 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | BK-PH10P | PH-P10 |
|---|---|---|
| pH — Range | 0.00–14.00pH | -2.000–20.000pH |
| pH — Resolution | 0.01pH | 0.01/0.1/0.001pH |
| pH — Accuracy | 0.01pH | ±0.002pH±one digit |
| pH — Calibration Points | 2points | 1–3points |
| pH — Temp. Compensation | 0.0–60.0 °C, manual temperature compensation | 0.0–100.0 °C/32.0–212.0℉, automatic |
| mV(ORP probe optional) — Range | -1400–1400 mV | -1999–1999 mV |
| mV(ORP probe optional) — Resolution | 1 mV | 0.1 mV |
| mV(ORP probe optional) — Accuracy | 1 mV | ±0.03 % FS±one digit |
| Temperature — Range | / | -10.0–135.0 °C/14.0–275.0℉ |
| Temperature — Resolution | / | 0.1 °C |
| Temperature — Accuracy | / | ±0.2 °C |
| Data Storage/Content | 200 data sets, support data storage, deletion, and retrieval | 3000 group, serial number, mode, measuring value, temp, date: Y/M/D/H/M |
| Charging Port | MicroUSB | Type-C - USB |
| PC Software Function | / | GLP measurement management Two-level user management The user's operation history log Meter usage management Automatically/manually timing data storage |
| Power Supply | Input: AC 100–240 V, 50/60 Hz, 0.35 A Output: DC 5 V/2 A | 3.8 V rechargeable lithium battery*1 |
| External Size(W*D*H) | 202.4 × 112 × 61 mm | 79 × 32 × 204 mm |
| Package Size(W*D*H) | 332 × 292 × 109 mm | 380 × 330 × 130 mm |
| Net Weight | 0.45 kg | 350 g |
| Gross Weight | 1.2 kg | 2 kg |
